FMS Reflex V3 Stable Flight Controller
Description
We are proud to introduce the new and improved FMS Reflex® V3 Stable Flight Controller!
Reflex® V3 is designed to break down barriers for beginners, giving them the confidence to fly, while also minimizing crash risks for experienced pilots. Flying is simple when you have your very own "co-pilot"- the Reflex® V3!
Reflex® V3 Functions
3 flight modes are available: Stabilized, Optimized or Manual Mode. This is controlled with a two-position or three-position switch on the transmitter. The middle position of the three-position switch defaults to Manual mode (off). When assigned to a two-position switch, the Reflex® system switches between stabilized and optimized modes.
Stabilized Mode - Designed for beginners. This mode reduces the sensitivity of the aircraft by limiting control surface angles, completely eliminating rolls and yaw caused by operational errors, and maximizing flight safety. When switched to this mode, the aircraft can quickly level itself from any attitude when the pilot is not actively controlling it. Reflex® stabilized mode is the most reliable "co-pilot" for beginner players.
Manual Mode - Turns off all gyro functionality, the aircraft is flown completely manually when the gyro is off.
Optimized Mode - Utilizing advanced solid-state gyros, the Reflex® system maintains aircraft attitude by counteracting inflight upsets - from gusts to crosswinds. With Reflex, even small aircraft will fly with the confidence of something much larger!
Upgraded Reflex® V3 Technology:
Customizable Parameter Adjustment: Reflex® V3 integrates bluetooth, pilots have the flexibility to adjust parameters based on their personal preferences and requirements, ensuring a tailored and unforgettable flying experience.
Expanded RC Aircraft Compatibility: Beyond FMS models, the Reflex® V3 seamlessly integrates with a variety of RC airplane brands, offering pilots an extensive selection and greater versatility for their flying endeavors.
Universal Accessibility: The Reflex® V3 is available for download on IOS, Android mobile, and Windows, ensuring compatibility with various devices and catering to the diverse needs of users.
Unique Identification Code: Each Reflex® system is equipped with an exclusive identification code, guaranteeing that pilots only connect to their own device even in environments with multiple Reflex® systems. This minimizes the risk of pairing with incorrect models and enhances safety during flight.
Personalized Reflex® Naming: Pilots have the freedom to assign custom names to their Reflex® V3 devices, enriching their personal experience and sense of ownership.
Password Modification: Users can independently modify the Reflex® password, effectively preventing frequency hopping and ensuring security.
Reflex® V3 With Stable Flight Technology. Confidence For Beginner Pilots And Risk Minimization For Experienced Pilots.
Download Link:
Search 'FMSHOBBY' on the App Store/Google Play or scan the QR code in the Reflex® V3 manual to download the app.
Manual:
Applicable Aircraft:
| All Brands Of RC Airplanes | All FMS RC Airplane | 1700mm F4U V2 | 980mm P-40 | 1100mm MXS V2 | 1200mm CJ-6 | 1800mm Ranger |
| 1220mm Super EZ V4 | 1700mm F7F | 1100mm PC-21 | 1400mm J3 Cub V4 | 1700mm PA-18 Super Cub | 80mm Rafale | 70mm F-18 V2 |
| 80mm BAE Hawk | 80mm Futura V3 | 80mm F-4 | 70mm A-10 V2 | 70mm Avanti V3 | 2000mm Beaver V2 | 1220mm Ranger |
| 1500mm P-51 | 1400mm F4U | 1100mm Zero | 1400mm Kingfish | 800mm F-4U | 800mm T-28 | 750mm Edge 540 |
| 1400mm P51 | 1400mm P40 | 1100mm F3A | 1400mm Sky Trainer 182 | 80mm Futura | 80mm T-28 | 70mm F-16 V2 |
| 850mm Flash V2 | 1700mm P-51 | 1100mm YDP-51 | 1500mm Maule | 64mm Futura | 80mm Integral | 64mm F-16 |
| 1220mm Ranger V2 | 90mm Avanti | 64mm J-10 |
Reflex® V3 Video:
Reflex® V2 Video:
Common Parts - 9g Digital Gear Servo Positive With 460mm Wire
Description
Applicable to 1500mm Maule, 1200mm CJ6 V2, 1280mm Easy Trainer V1+V2, 1500mm Moa, 2300mm FOX, 1300mm PA-18, 64mm Futura, 1700mm P-51, 1700mm F4U Corsair V3, 1400mm Sky Trainer 182, 1400mm Kingfisher, 1400mm J-3, 1200mm Super EZ, 1220mm Ranger V1 & V2, 1400mm A6M3 Zero, 1100mm Typhoon, 1100mm PC-21, 64mm F-35 V2, 64mm F-18 V2, 64mm F-15 V2, 64mm F-16 V2, 1500mm Cessna 182, 64mm F-16, 64mm J-10.

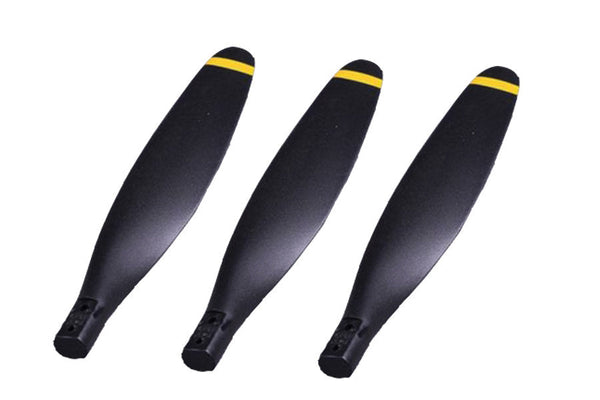

PROPELLER 13*9
Description
Common Parts - 9g Digital Servo 54 Degree With 270mm Wire
Description
Suitable for 64mm F/A-18 Hornet, 1400mm A6M3 Zero Green Parts, 1400mm Sky Trainer 182 Blue, 1100mm A6M5 Zero, 1100mm PC-21, 800mm F4U V2, 800mm P-51D, 800mm T-28, 64mm Rafale, 64mm F-16 V2, 64mm F-35 V2 Parts, 64mm F-18 V2 Parts, 64mm F-15 V2 Part, 64mm Futura, 64mm F-16, 64mm J-10.
FMS RC Plane Rack
Description
The FMS RC Plane Rack is the ultimate storage solution for serious aviation enthusiasts!
In terms of structure, the entire rack is assembled with screws and clamps, making it easy to assemble while ensuring sturdiness. It comes with four casters (two with locks), which make it easy to organize your hangar space. The rack features five sets of foldable support arms, each with a 3° attack angle to secure planes without damaging control surfaces. The foldable design allows compatibility with model airplanes of different sizes, from wingspans of 800mm to 2000mm. Whether holding wings or fuselages, there’s always a suitable place.
In terms of appearance, the entire frame is made of aluminum alloy, measuring nearly 1.7m in height and weighing only 6.5kg. Its tactile matte black finish resists scratches and workshop grime. The rack supports a maximum weight of 50kg, so even large-sized model airplanes are no problem.
Hurry up and add this model airplane stand to your workshop!
| Specification | |
|---|---|
| Length | 1000mm/39inch |
| Width | 575mm/22inch |
| Height | 1680mm/66inch |
| Gross Weight | 6.9kg |
| Package Size |
|
| Assembly Time | 15min |
| Number of Support Arms | 5 Sets |
| Length of Support Arms | 310mm/122inch |
| Default Vertical Spacing Between Support Arms (Adjustable) | 300mm/188inch |
| Screw Quick Detach | YES |
| Color | Sanded Matte Black, Silver Joints |
| Material | Aluminum alloy, ABS Plastic |
| Load-bearing | Approx. 50 kg |

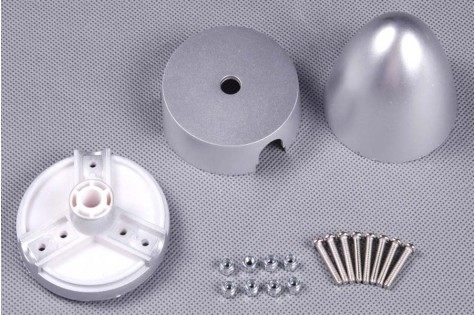

1400mm Zero Spinner
Description

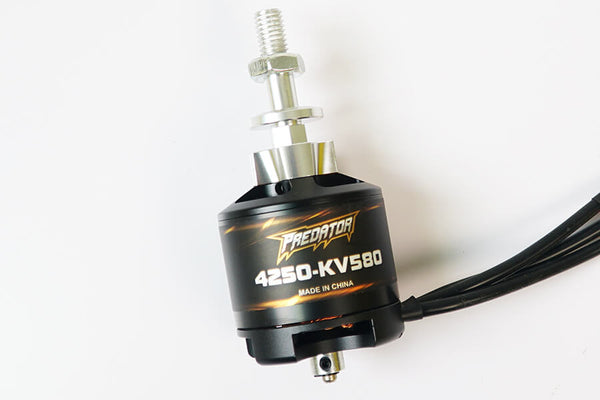

4250-KV580 Motor for 1400mm Zero

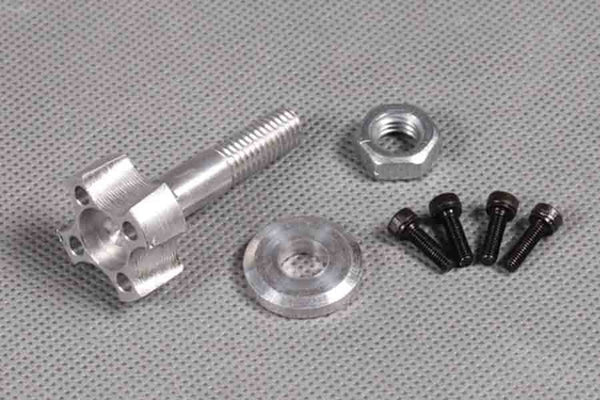

4250 Motor Shaft For 1400mm F4U V3, 1400mm Zero
1400mm Zero Front Landing Gear
Description

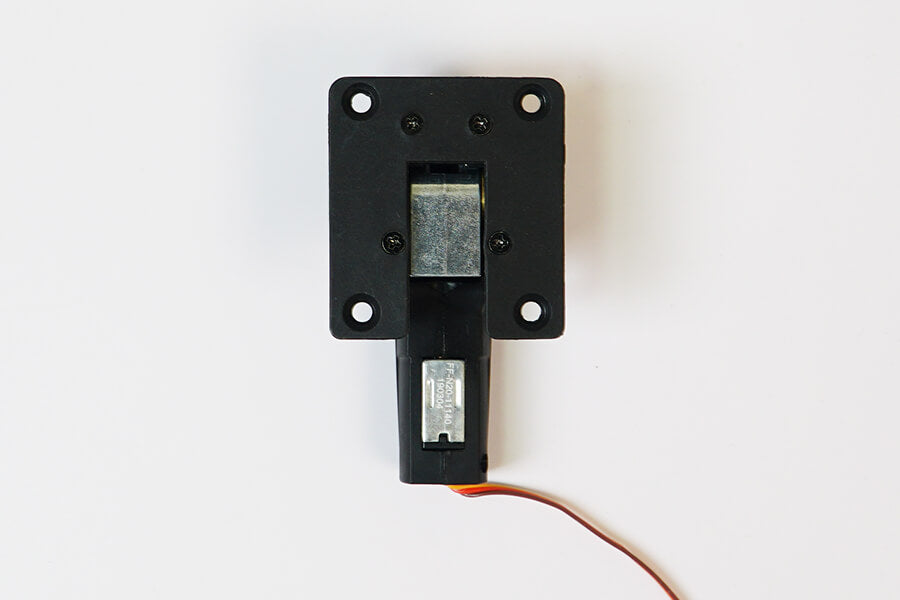

Main E-Retract For 1400mm Zero

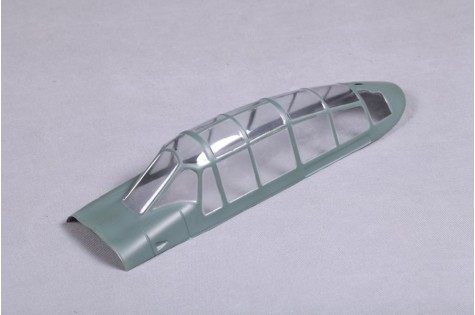

1400mm Zero Plastic Canopy
Description

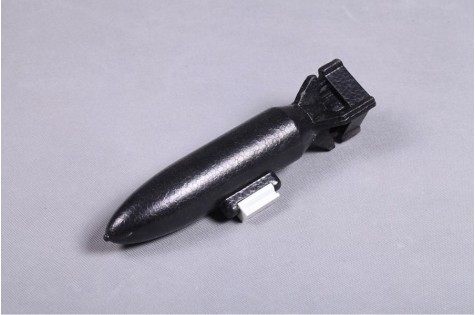

1400mm Zero Bomb
Description

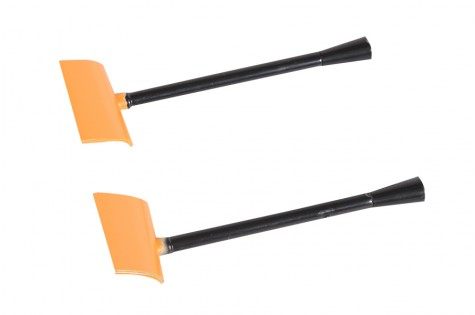

1400mm Zero Gun Barrel Green
Description

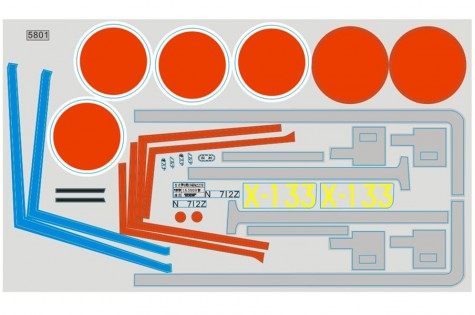

1400mm Zero Stickers
Description

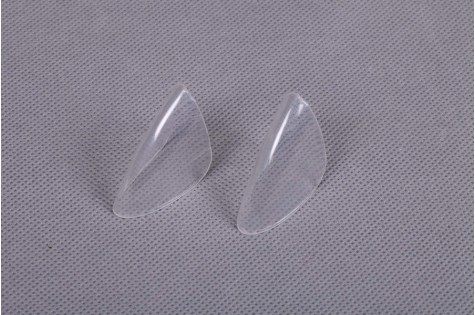

1400mm Zero Lamp Cover
Description

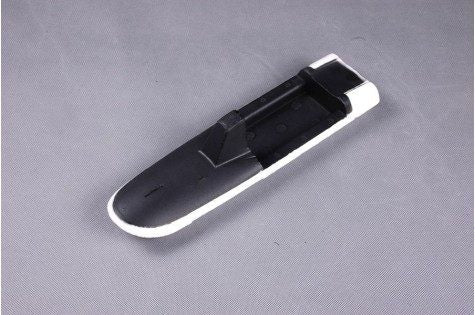

1400mm Zero Foam Canopy
Description

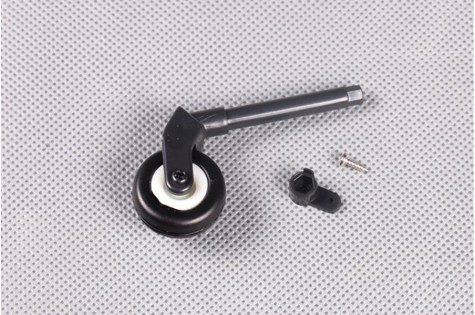

1400mm Zero Rear Landing Gear
Description

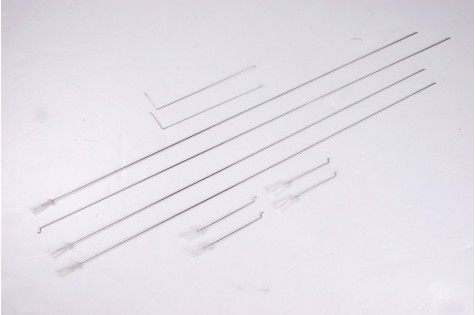

1400mm Zero Linkage Rod
Description

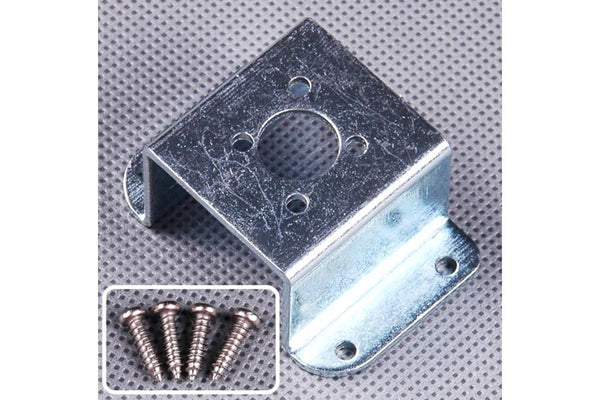

Motor Mount for 1400mm Zero

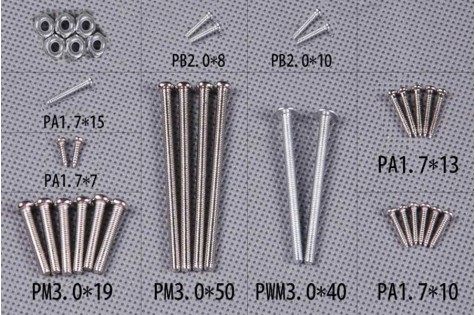

1400mm Zero Screw Set
Description

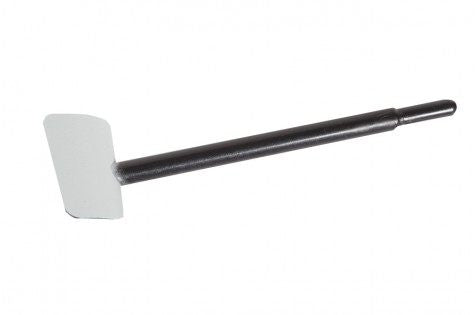

1400mm Zero Air Speed Head Green
Description

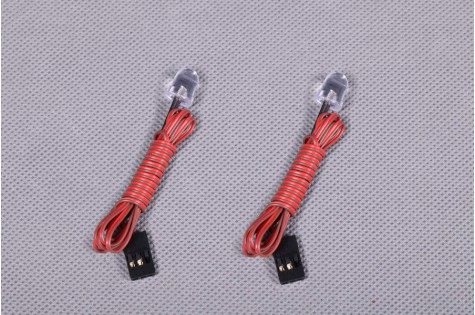

1400mm Zero LED
Description

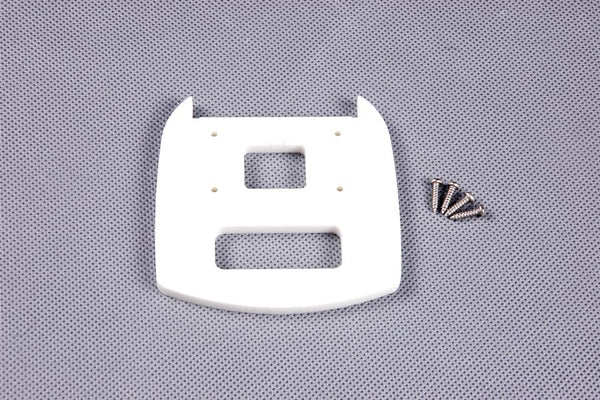

Motor Board for 1400mm Zero
