FMS Reflex V3 Stable Flight Controller
Description
We are proud to introduce the new and improved FMS Reflex® V3 Stable Flight Controller!
Reflex® V3 is designed to break down barriers for beginners, giving them the confidence to fly, while also minimizing crash risks for experienced pilots. Flying is simple when you have your very own "co-pilot"- the Reflex® V3!
Reflex® V3 Functions
3 flight modes are available: Stabilized, Optimized or Manual Mode. This is controlled with a two-position or three-position switch on the transmitter. The middle position of the three-position switch defaults to Manual mode (off). When assigned to a two-position switch, the Reflex® system switches between stabilized and optimized modes.
Stabilized Mode - Designed for beginners. This mode reduces the sensitivity of the aircraft by limiting control surface angles, completely eliminating rolls and yaw caused by operational errors, and maximizing flight safety. When switched to this mode, the aircraft can quickly level itself from any attitude when the pilot is not actively controlling it. Reflex® stabilized mode is the most reliable "co-pilot" for beginner players.
Manual Mode - Turns off all gyro functionality, the aircraft is flown completely manually when the gyro is off.
Optimized Mode - Utilizing advanced solid-state gyros, the Reflex® system maintains aircraft attitude by counteracting inflight upsets - from gusts to crosswinds. With Reflex, even small aircraft will fly with the confidence of something much larger!
Upgraded Reflex® V3 Technology:
Customizable Parameter Adjustment: Reflex® V3 integrates bluetooth, pilots have the flexibility to adjust parameters based on their personal preferences and requirements, ensuring a tailored and unforgettable flying experience.
Expanded RC Aircraft Compatibility: Beyond FMS models, the Reflex® V3 seamlessly integrates with a variety of RC airplane brands, offering pilots an extensive selection and greater versatility for their flying endeavors.
Universal Accessibility: The Reflex® V3 is available for download on IOS, Android mobile, and Windows, ensuring compatibility with various devices and catering to the diverse needs of users.
Unique Identification Code: Each Reflex® system is equipped with an exclusive identification code, guaranteeing that pilots only connect to their own device even in environments with multiple Reflex® systems. This minimizes the risk of pairing with incorrect models and enhances safety during flight.
Personalized Reflex® Naming: Pilots have the freedom to assign custom names to their Reflex® V3 devices, enriching their personal experience and sense of ownership.
Password Modification: Users can independently modify the Reflex® password, effectively preventing frequency hopping and ensuring security.
Reflex® V3 With Stable Flight Technology. Confidence For Beginner Pilots And Risk Minimization For Experienced Pilots.
Download Link:
Search 'FMSHOBBY' on the App Store/Google Play or scan the QR code in the Reflex® V3 manual to download the app.
Manual:
Applicable Aircraft:
| All Brands Of RC Airplanes | All FMS RC Airplane | 1700mm F4U V2 | 980mm P-40 | 1100mm MXS V2 | 1200mm CJ-6 | 1800mm Ranger |
| 1220mm Super EZ V4 | 1700mm F7F | 1100mm PC-21 | 1400mm J3 Cub V4 | 1700mm PA-18 Super Cub | 80mm Rafale | 70mm F-18 V2 |
| 80mm BAE Hawk | 80mm Futura V3 | 80mm F-4 | 70mm A-10 V2 | 70mm Avanti V3 | 2000mm Beaver V2 | 1220mm Ranger |
| 1500mm P-51 | 1400mm F4U | 1100mm Zero | 1400mm Kingfish | 800mm F-4U | 800mm T-28 | 750mm Edge 540 |
| 1400mm P51 | 1400mm P40 | 1100mm F3A | 1400mm Sky Trainer 182 | 80mm Futura | 80mm T-28 | 70mm F-16 V2 |
| 850mm Flash V2 | 1700mm P-51 | 1100mm YDP-51 | 1500mm Maule | 64mm Futura | 80mm Integral | 64mm F-16 |
| 1220mm Ranger V2 | 90mm Avanti | 64mm J-10 |
Reflex® V3 Video:
Reflex® V2 Video:
RC-Aircraft Lipo Battery Voltage Checker
Description
Accurate electronic digital screen.
Simple Connecting. Just plug the balance connector into the battery balance charging port to start operation.
Common Parts - 17g Digital Metal Gear Servo Positive With 700mm Wire
Description
Propeller 14*8
Description
4258 Motor Shaft
Description
For 1400mm T28 V4, 1500mm P47/ P40B, 1700mm F7F, 3000mm FOX, 1400mm Pitts V2

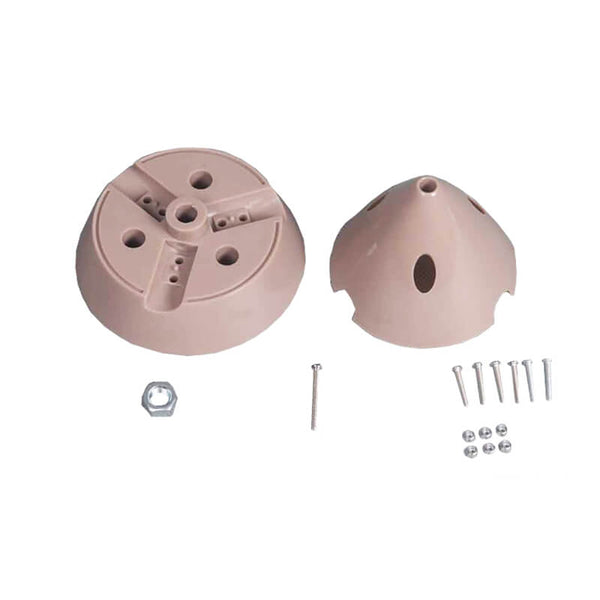

1400mm P-40B Spinner

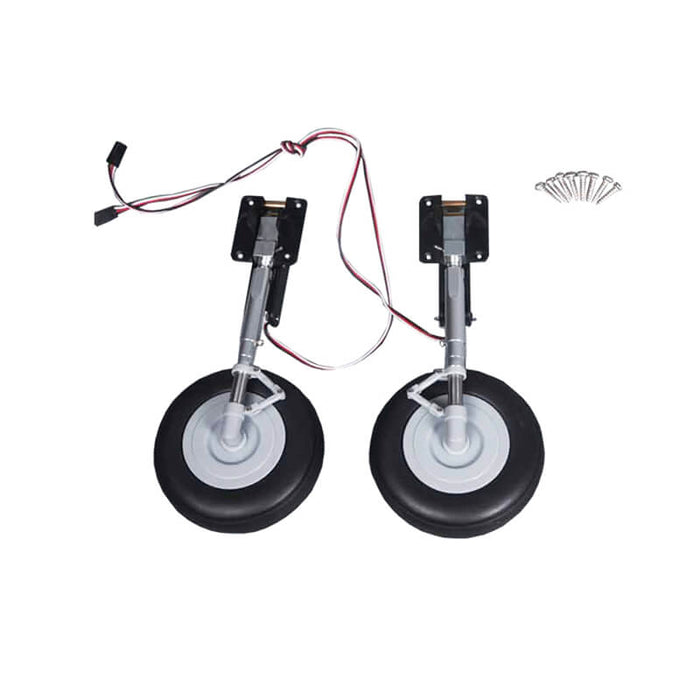

Main E-Retracts for 1400mm P-40B (2 pcs)
Description
Get your FMS 1400mm P-40B Warhawk back in action with this official FMS Main E-Retract set, which includes both left and right retracts (2 pieces). These electric retracts are precision-engineered for smooth, reliable operation and perfect compatibility with your stock landing gear bay.
Designed for: FMS 1400mm P-40B Warhawk
Includes: 1 left retract + 1 right retract (2 total)
Plug-and-play: No modifications required
Common Parts - Motor Mount
Description
Multi-Connector Set Suitable For Multiple RC Aircraft Models
Description
For 1700mm P-51D, 1400mm P-51D, 1400mm P-40B, 1400mm F4U V3, 1400mm T-28 V4, 2500mm ASW-17, 80mm Rafale
FMS RC Plane Rack
Description
The FMS RC Plane Rack is the ultimate storage solution for serious aviation enthusiasts!
In terms of structure, the entire rack is assembled with screws and clamps, making it easy to assemble while ensuring sturdiness. It comes with four casters (two with locks), which make it easy to organize your hangar space. The rack features five sets of foldable support arms, each with a 3° attack angle to secure planes without damaging control surfaces. The foldable design allows compatibility with model airplanes of different sizes, from wingspans of 800mm to 2000mm. Whether holding wings or fuselages, there’s always a suitable place.
In terms of appearance, the entire frame is made of aluminum alloy, measuring nearly 1.7m in height and weighing only 6.5kg. Its tactile matte black finish resists scratches and workshop grime. The rack supports a maximum weight of 50kg, so even large-sized model airplanes are no problem.
Hurry up and add this model airplane stand to your workshop!
| Specification | |
|---|---|
| Length | 1000mm/39inch |
| Width | 575mm/22inch |
| Height | 1680mm/66inch |
| Gross Weight | 6.9kg |
| Package Size |
|
| Assembly Time | 15min |
| Number of Support Arms | 5 Sets |
| Length of Support Arms | 310mm/122inch |
| Default Vertical Spacing Between Support Arms (Adjustable) | 300mm/188inch |
| Screw Quick Detach | YES |
| Color | Sanded Matte Black, Silver Joints |
| Material | Aluminum alloy, ABS Plastic |
| Load-bearing | Approx. 50 kg |
4258-KV650 Motor
Description

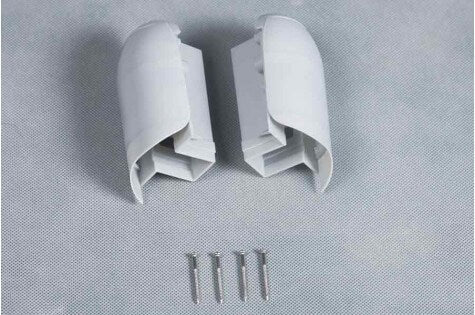

1400mm P-40B Front Landing Gear Door

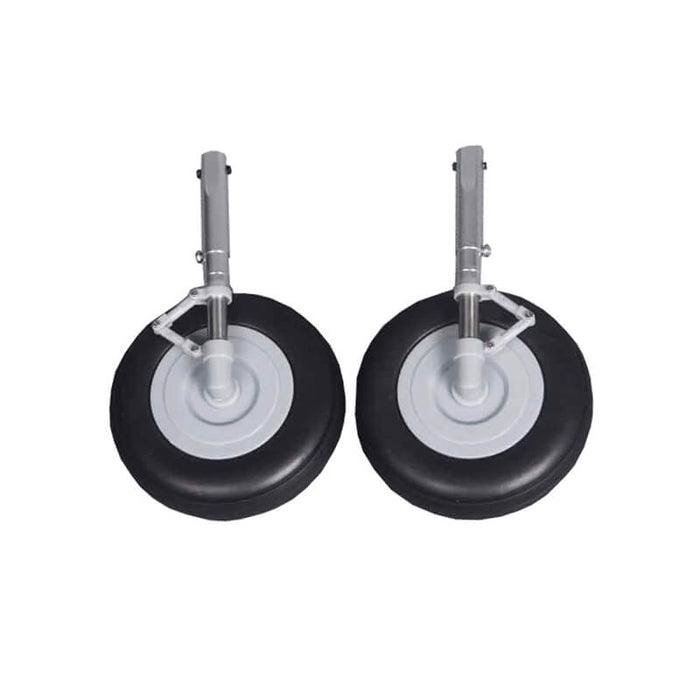

1400mm P-40B Main Landing Gear Set

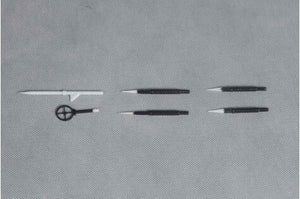

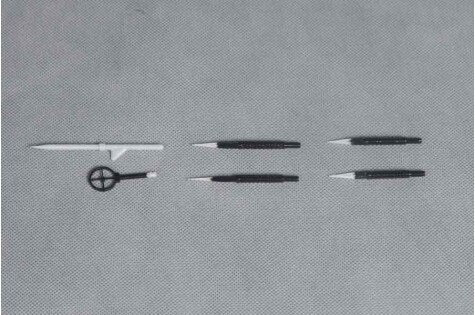

1400mm P-40B Air Speed Head, Gun Set And Gunsight

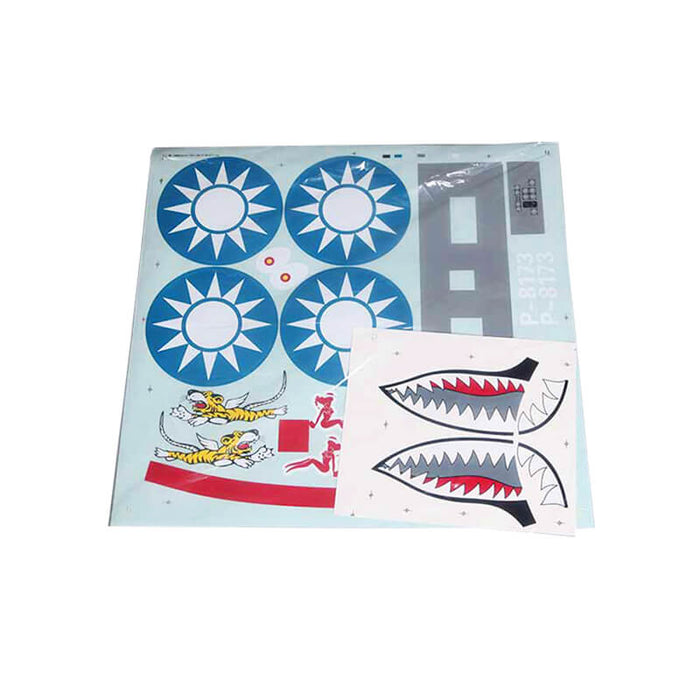

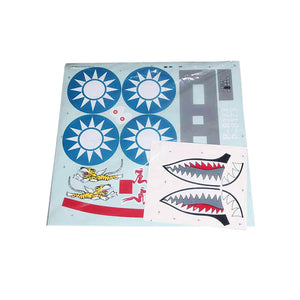

1400mm P-40B Decal Sheet
1400mm P-40B Main Landing Gear System

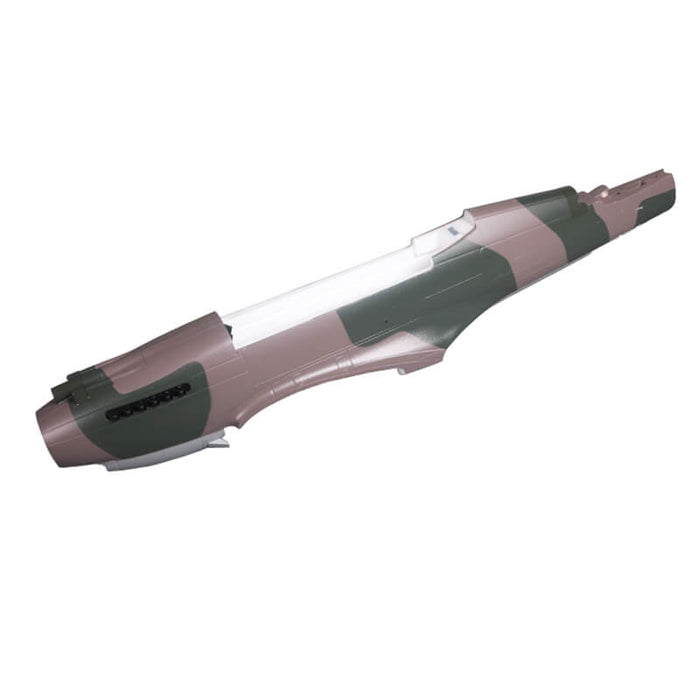

1400mm P-40B Fuselage

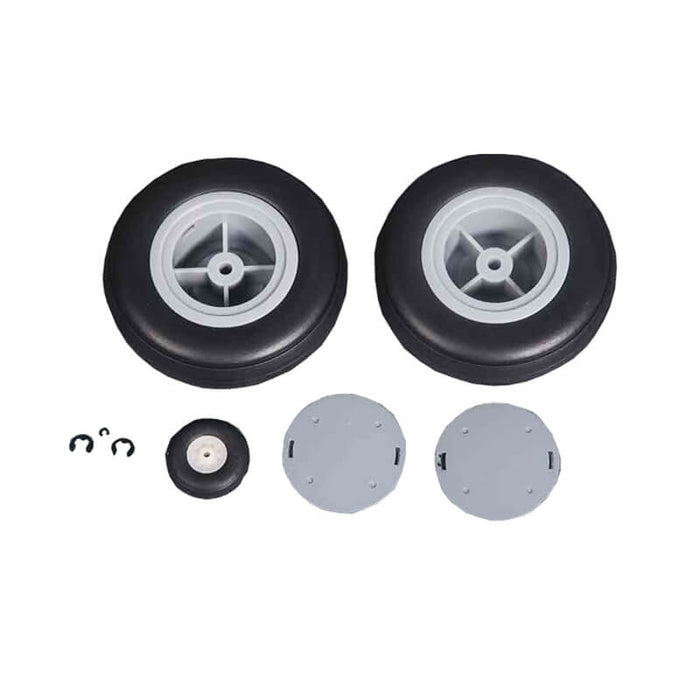

1400mm P-40B Wheel Set
1400mm P-40B Main Wing Set
Universal Multi-connector Board
Description
Used For 80mm Integral, 80mm F-86, 90mm Avanti, 90mm Scorpion V2, 1400mm T-28, 1400mm F4U, 1450mm P-51, 1400mm P-40, 1500mm P-47, 1500mm Cessna182, 1700mm F7F, 1700mm P-51, 1700mm F4U, 2000mm Beaver
1400mm P-40B Rear Landing Gear Door

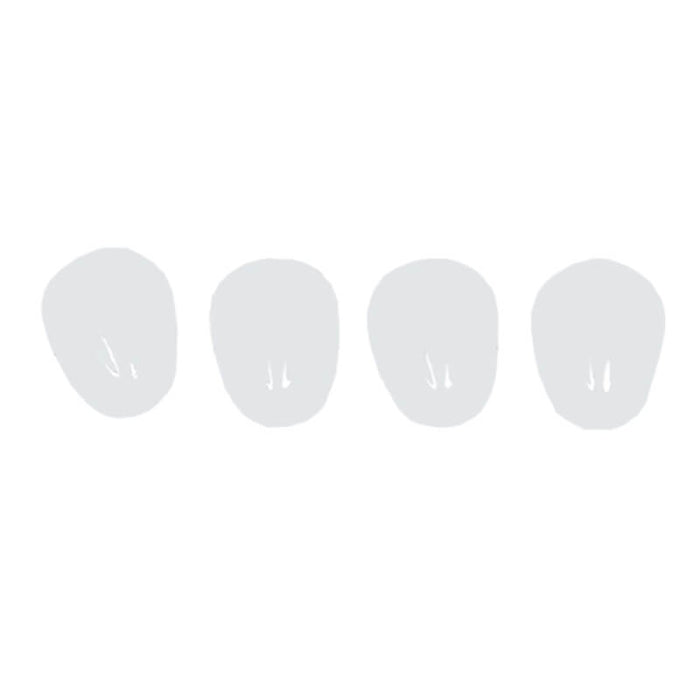

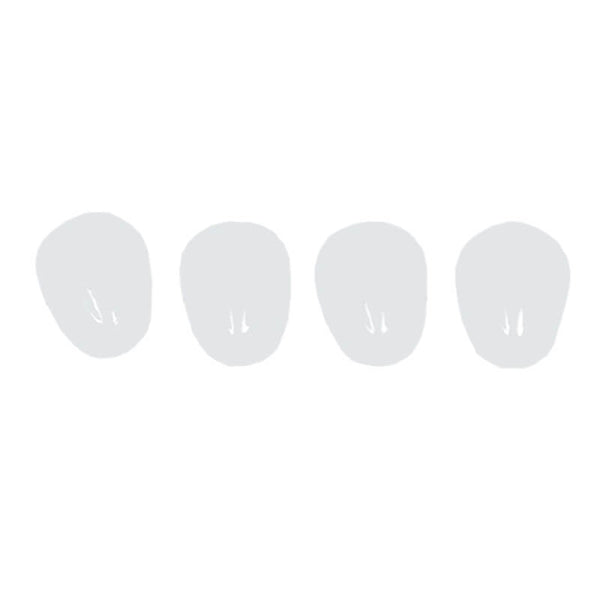

1400mm P-40B Lamp Cover

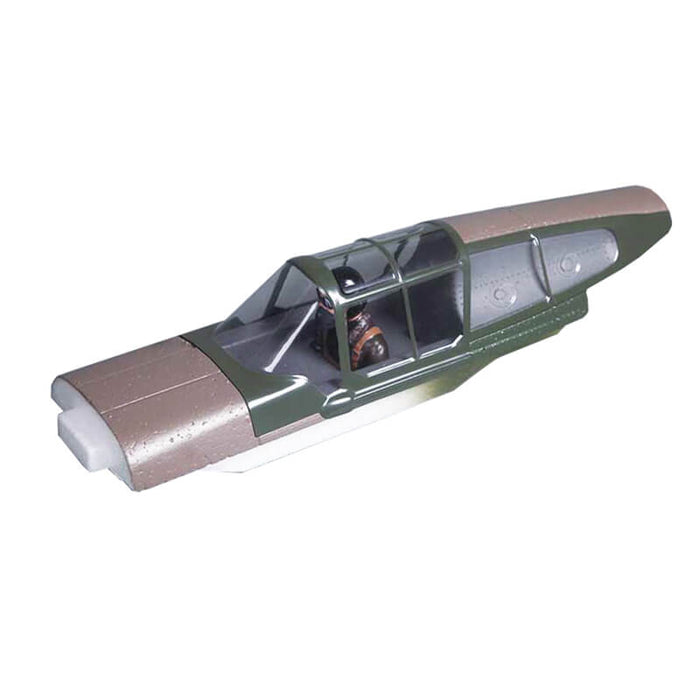

1400mm P-40B Cockpit
