Description

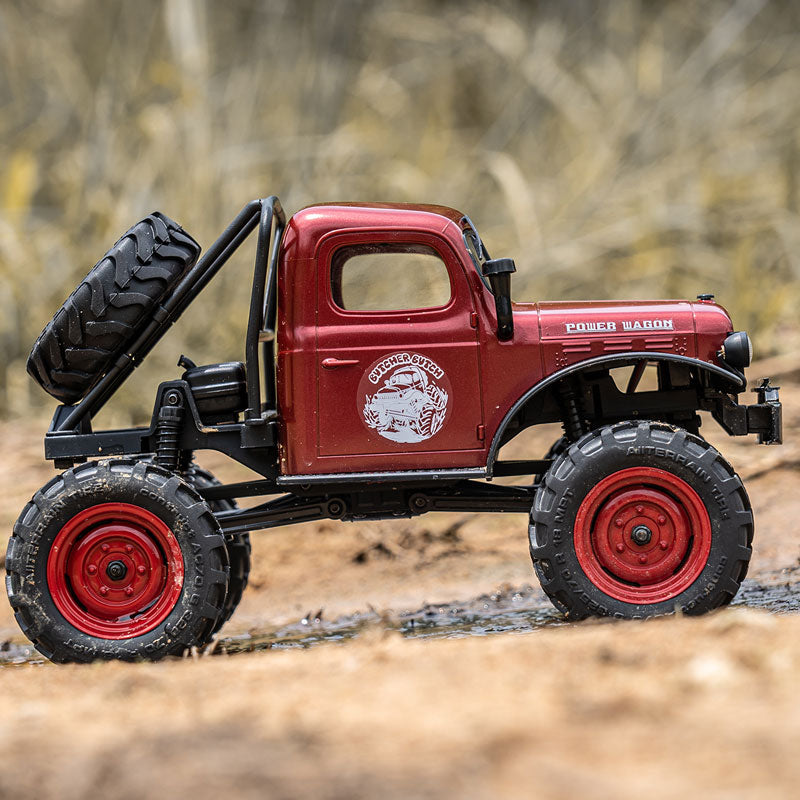

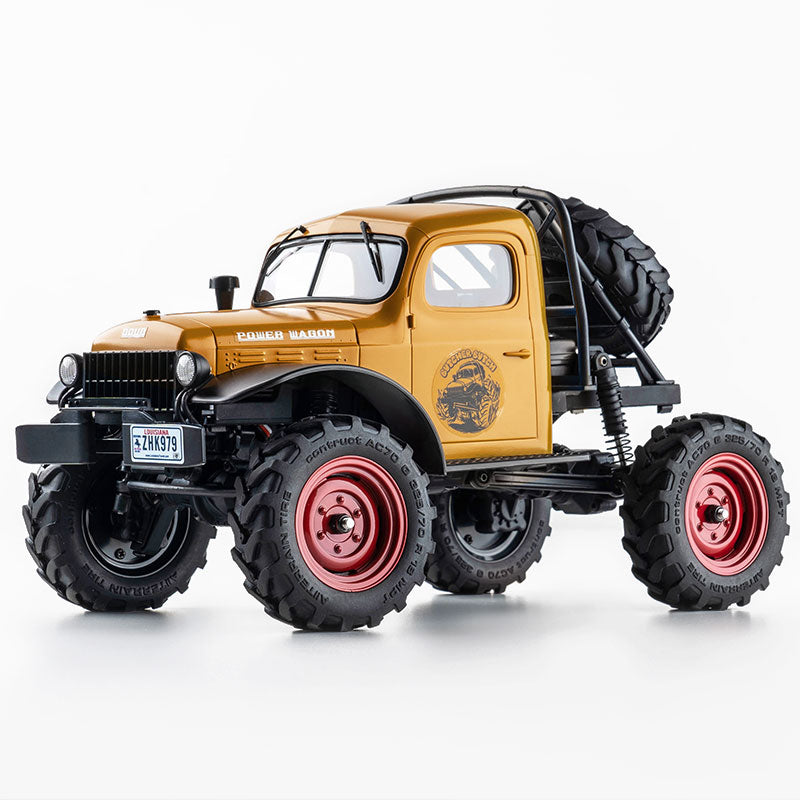

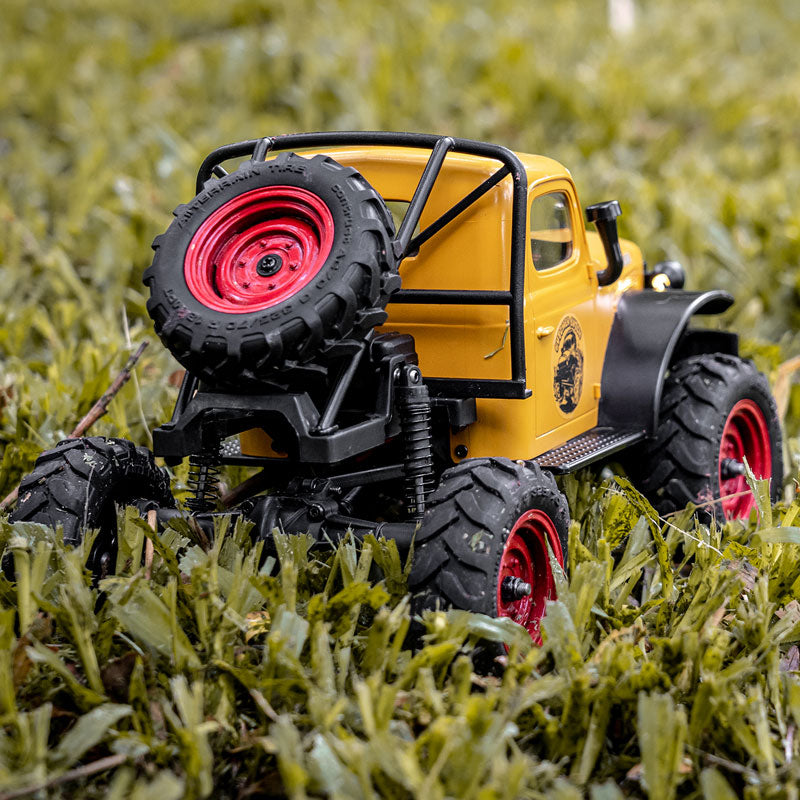

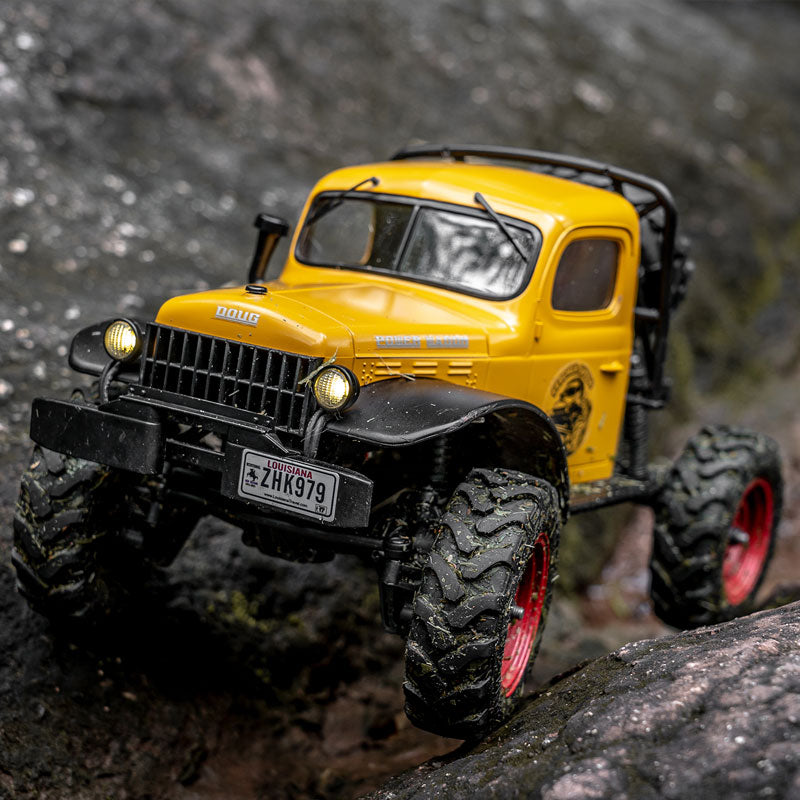

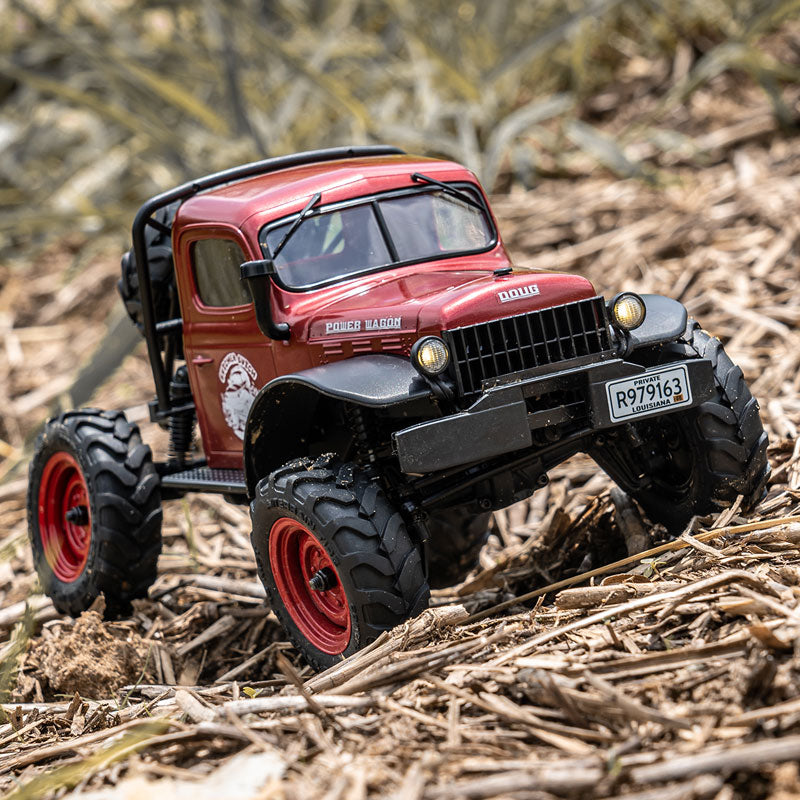

The World's First 1/24 Climbing Rock Crawler with Two-speed Transmission - Power Wagon FCX24

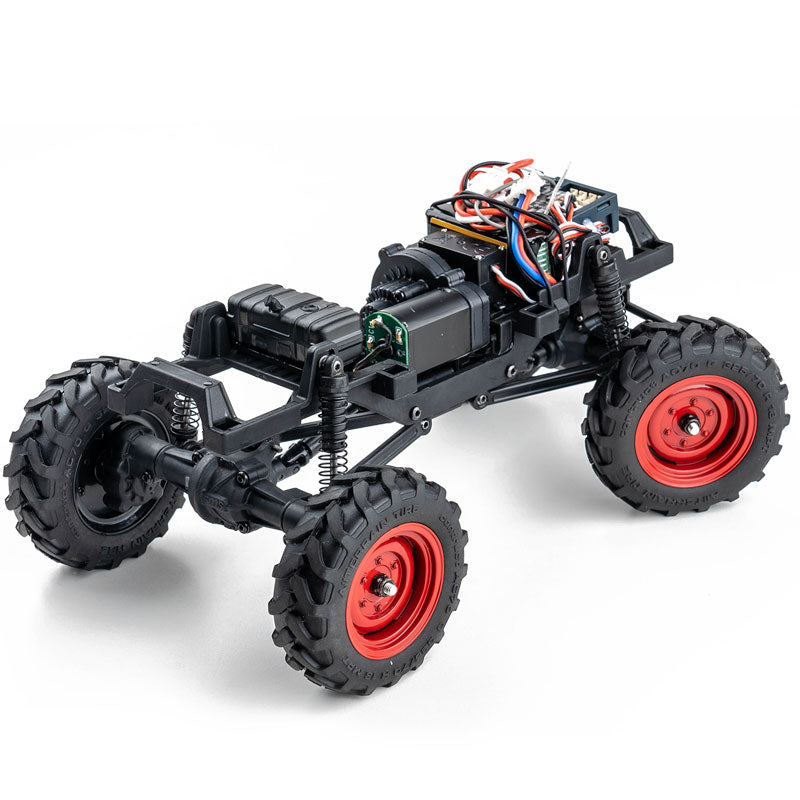

FCX24 meticulously designed by FMS team will redefine the small scale climbing rc car. As the first product of the FCX24 series, the car body is the POWER WAGON in 1949, which appeared in the form of a mud off-road truck. It is positioned as a high-performance crawler chassis. The carframe is made of high-strength nylon. Compared with the trapezoidal beam spliced by metal side beams and plastic trusses, the overall weight is lighter and the strength is higher. The mid-mounted power assembly has a low center of gravity and integrates the 2-speed transmission, transfer case and 130 motor. The power is transmitted to the front and rear axles through the universal joint drive shaft. The axles are equipped with wheel side reducers, commonly known as "portal axle", which can increase the ground clearance of the differential tooth pack and improve the passability.
Features:
- Ready To Run Model
- Two Speed Transmission
- Port Alaxle, High Ground Clearance For Climb
- 24 Ballbearings Full Set
- Metal Gears Steering Servo
- Four Link Suspension
- High Strength Integrated Nylon Frame
- Power wagon polystyrene body
- Rapid separation car body
- Nylon roll cage
- Painted body
- Remote control lighting system
- Original personalized stickers
What's in Box:
- 1 x 1:24 Power Wagon RTR

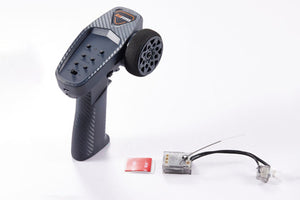

- 1 x MG41 / G3 V1 Transmitter (random)
- 1 x R4A1 / R3A V1 Receiver (installed)
- 1 x 130 Brushed Motor (installed)
- 1 x 7.4V 380mAh Battery
- 1 x USB Battery Charger
- 1 x Hex Wrench Socket
- 1 x Product Manual
Need to Complete:
- 4 x AAA Batteries for Transmitter
Please note:
The FCX24 transimitter has been iteratively updated as a result of the supplier's latest batch update. The FCX24 G3 V1 transmitter combines the high-beam, low-beam light control functions into a one-button light switch function, and adds an electronic sound prompt function of the middle steering position and the middle throttle position, and an idle alarm function.
From March 11th, MG41 transmitter and G3 V1 transmitter will be shipped randomly. Both transmitters have the same primary functions and are certified products from original manufacturer. For more details, please download the manual and check the specification.

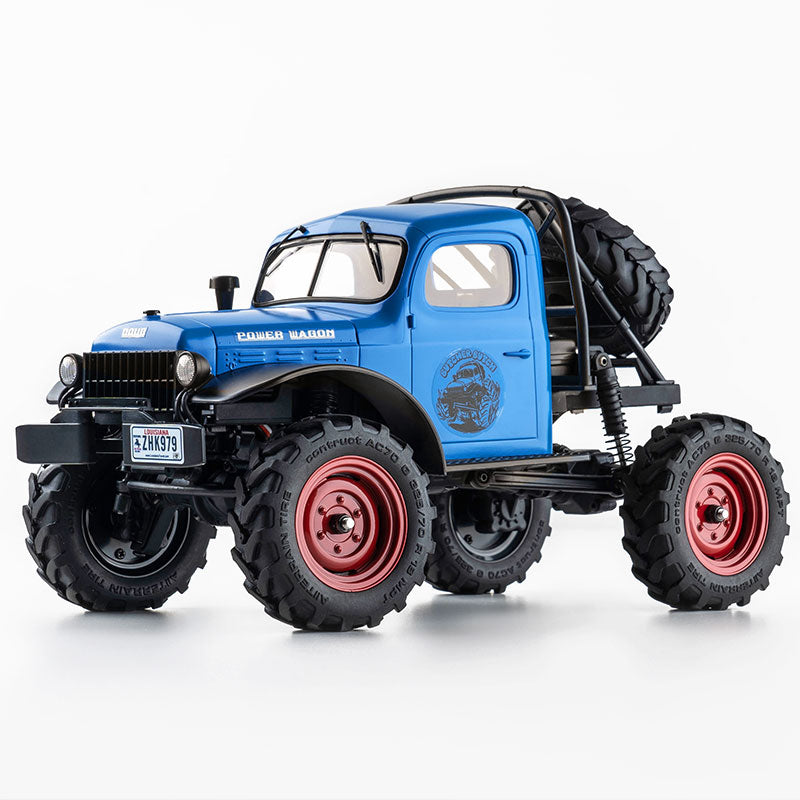

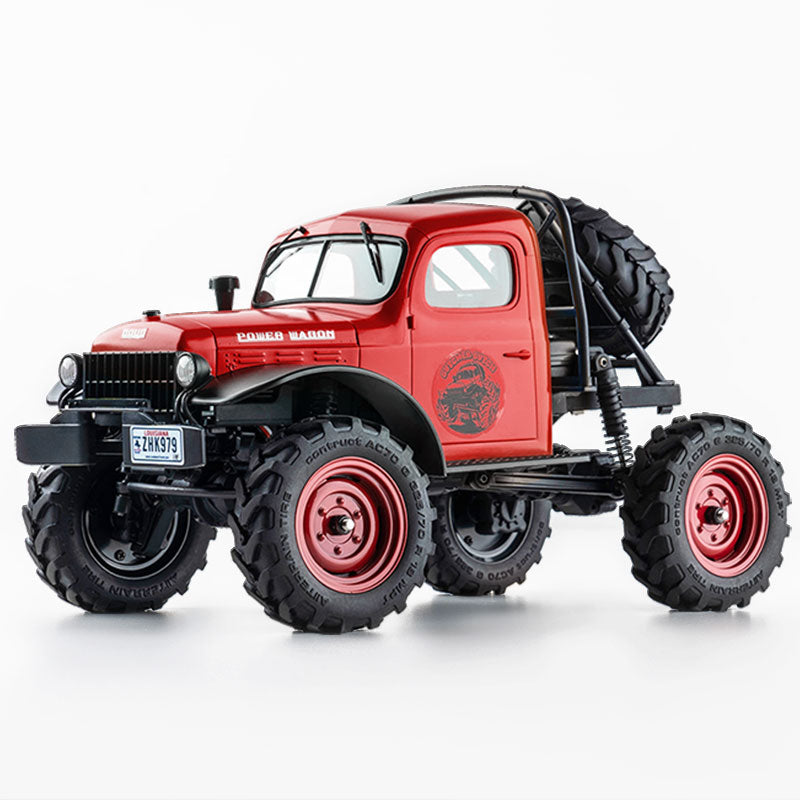

Power Wagon Blue and Red can only be shipped to the Contiguous United States, and Yellow can be shipped globally.
Features

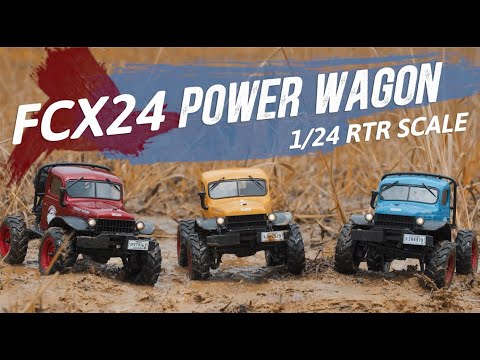

Power Wagon FCX24
FMS create world's first 1/24 RC Mini Crawler features 2-speed gearbox

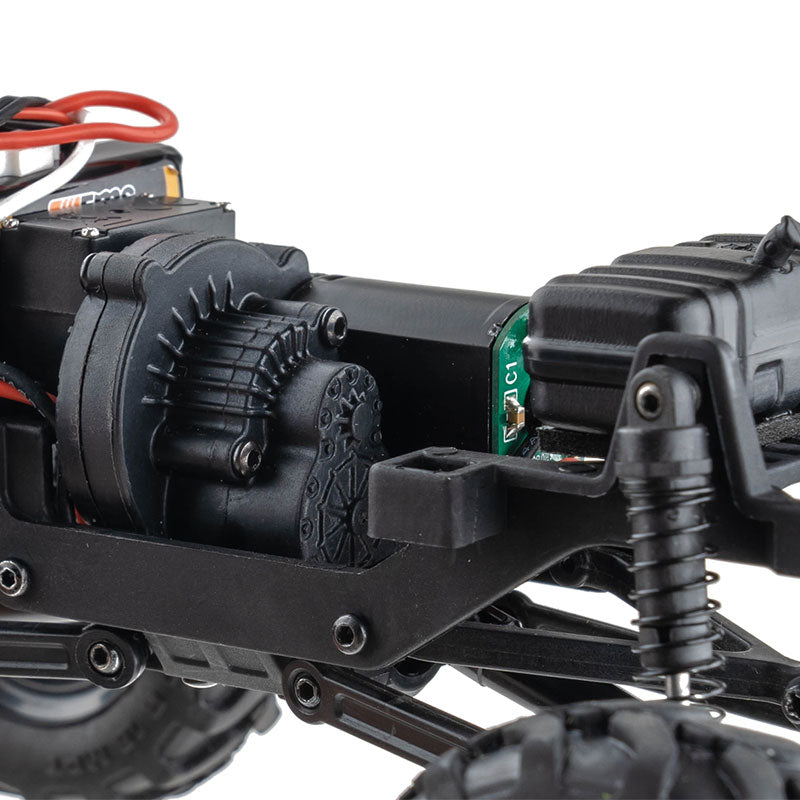

TWO-SPEED TRANSMISSION LEAVES RIVALS IN THE DUST
FMS has created the world's first 1/24th scale RC Crawler featuring a 2-speed gearbox. The torque output in Low speed is strong and great for extreme climbing and high speed. 8 mph allows you get to the rocks quicker and experience the fun sooner.
PORTAL AXLE
The axles are equipped with portal axles, which increase the ground clearance of the differential and reduce the gear ratio for increased performance.

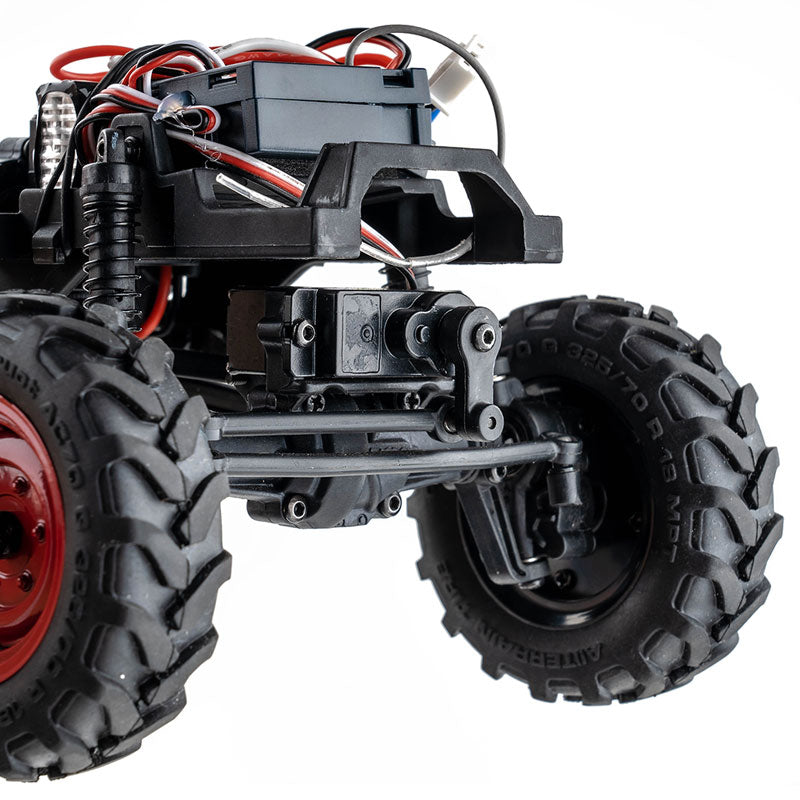

METAL GEARS STEERING SERVO
Durable waterproof metal gear steering servo allows you to control the accuracy of steering.
24 BALL BEARINGS PRE-INSTALLED
FCX24 is pre-installed with 24 ball bearings, providing higher performance, longer lifespan and reduced power loss resulting in longer run times.
4-LINK SUSPENSION
The front and rear of the FCX24 is equipped with a compact 4-Link, improving the stability and articulation required for extreme rock crawling.

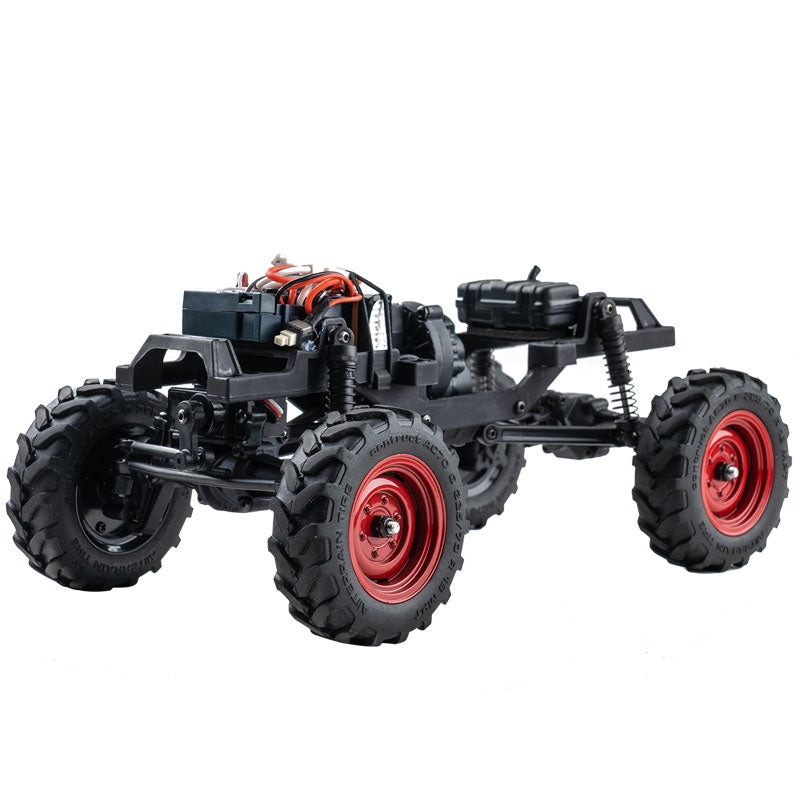

LIGHT AND STRONG
The FCX24’s integrally formed frame is made of high-strength nylon rather than metal and plastic, allowing for a lower center of gravity, lighter weight and higher strength than traditional models.
METAL CVD UNIVERSAL JOINT
The metal CVD universal joint combined with a strong transmission shaft creates a durable drive-line capable of challenging rock crawling and ensuring durability across all elements and terrains.
REMOTE CONTROL LIGHTING SYSTEM
Intelligent lighting control module, allows the headlights to switch between hi and lo beam making it possible to light up the trail day or night.
REMOVABLE HARD BODY
The FCX24’s hard plastic body can be separated from the frame with just the squeeze of a couple of clips, making it easy to maintain, make technical adjustments, install performance upgrades and clean.
ORIGINAL PERISONALIZED STICKERS
Style your own power wagon with our personalized sticker options.
HIGH TRACTION TIRES
Made of a soft grippy rubber combined with an aggressive tread pattern, the Power Wagon’s all-terrain tires have tremendous grip on rocks, mud and sand. The red paint and detailed sidewall provide a realistic and customizable look
130 BRUSHED MOTOR
Hold on to your hats! The Power Wagon is a blast to drive on the open road thanks to its high torque 130 brushed motor it’s also a beast on the rocks
Parts
1/24 Power Wagon Portal Axle Metal Gear
$12.99 USD

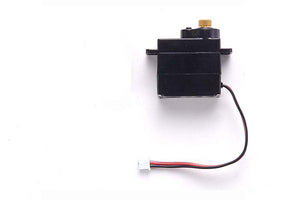

1/24 Power Wagon Steering Servo
$14.99 USD
1/24 Power Wagon Screw Nut
$1.99 USD
1/24 Power Wagon Transmission Gear Box Assembly
$24.99 USD
1/24 Power Wagon Screw
$3.99 USD
1/24 Power Wagon MG41 + R4A1 Transmitter Receiver Set
$29.99 USD View all partsPayment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

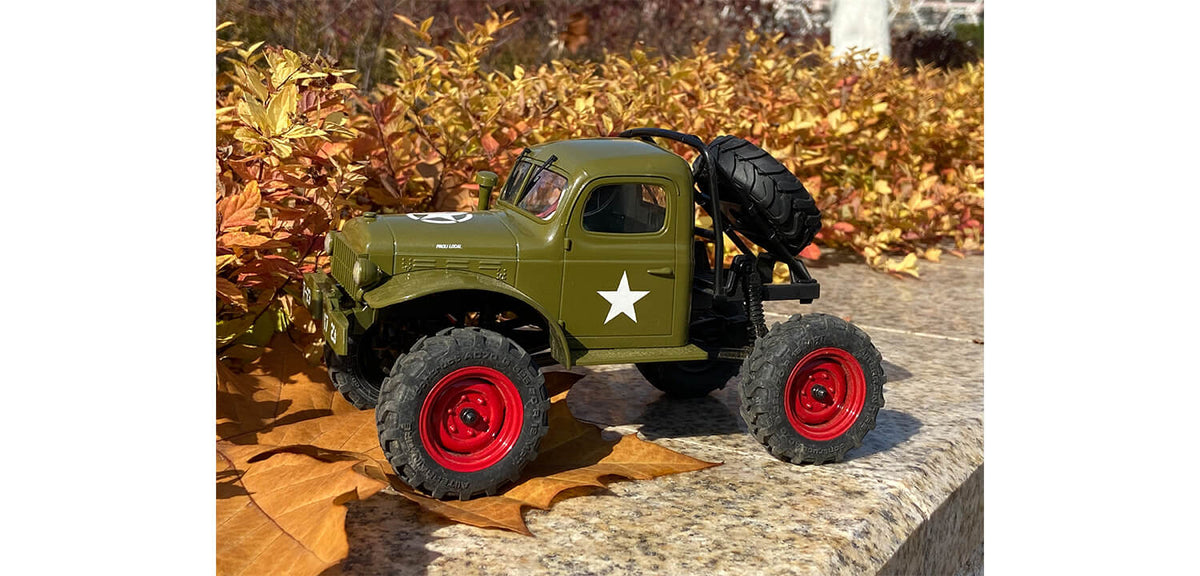

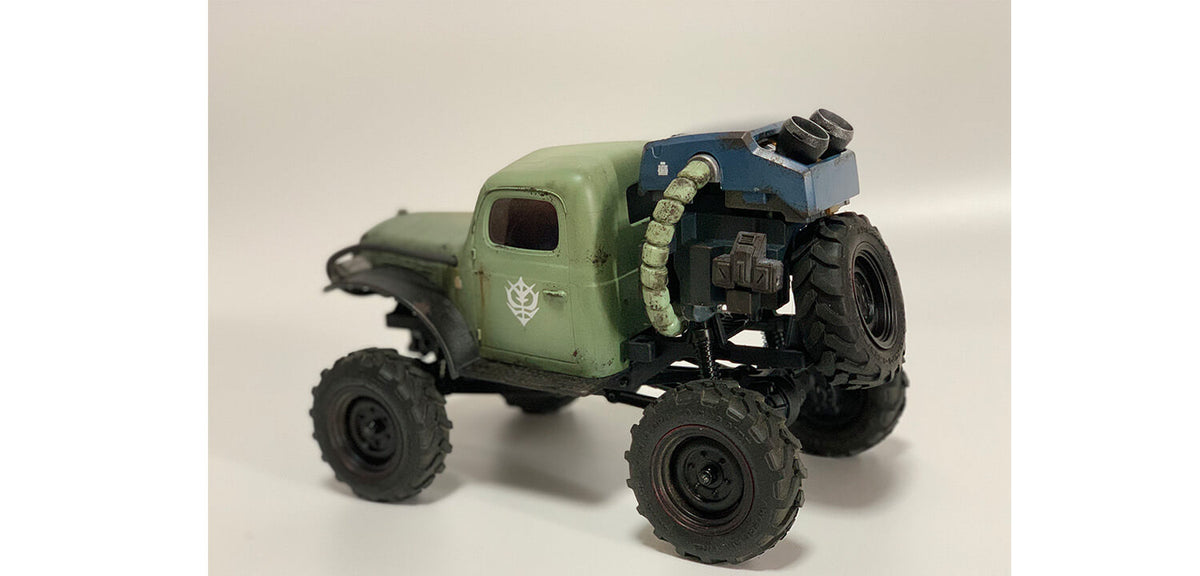

FCX24 Power Wagon Fun
