Introduction:

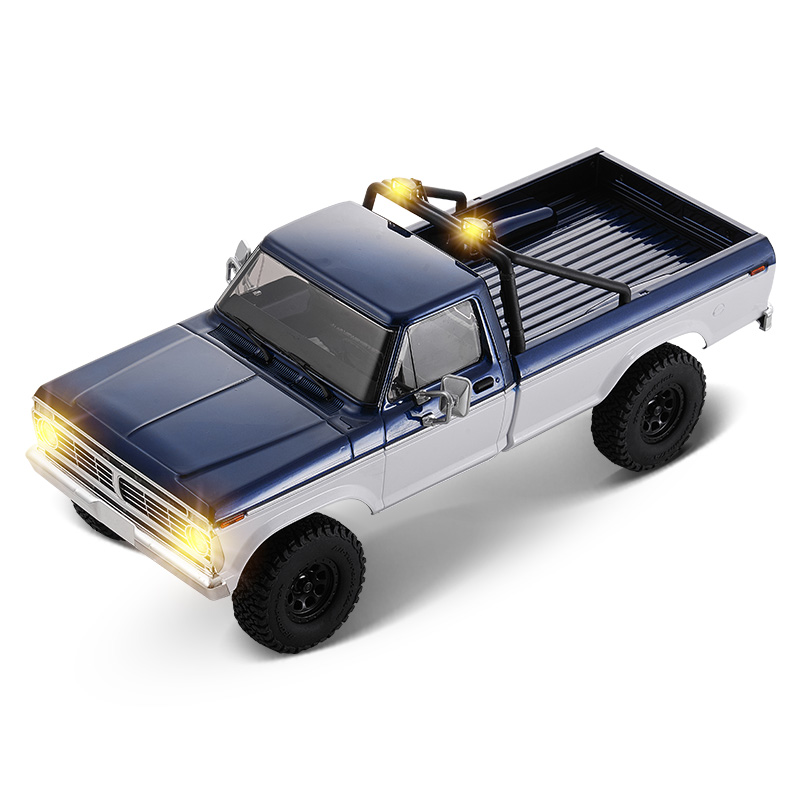

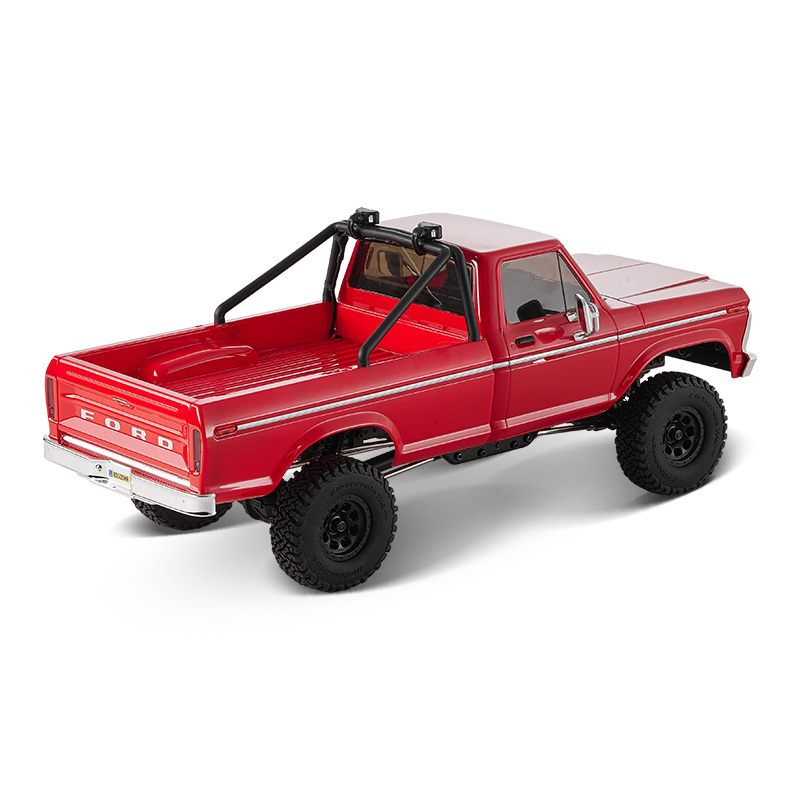

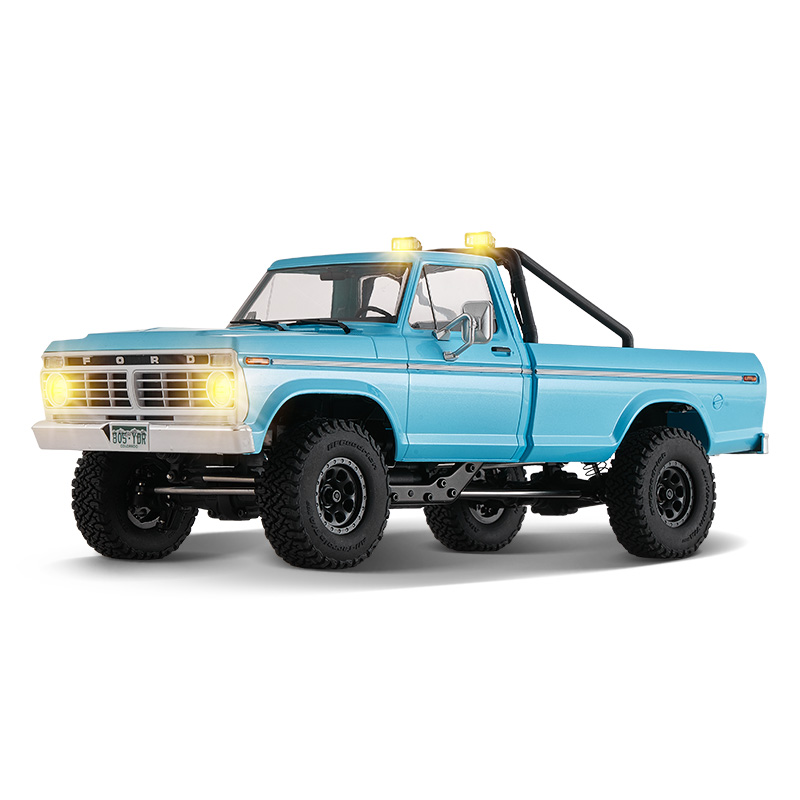

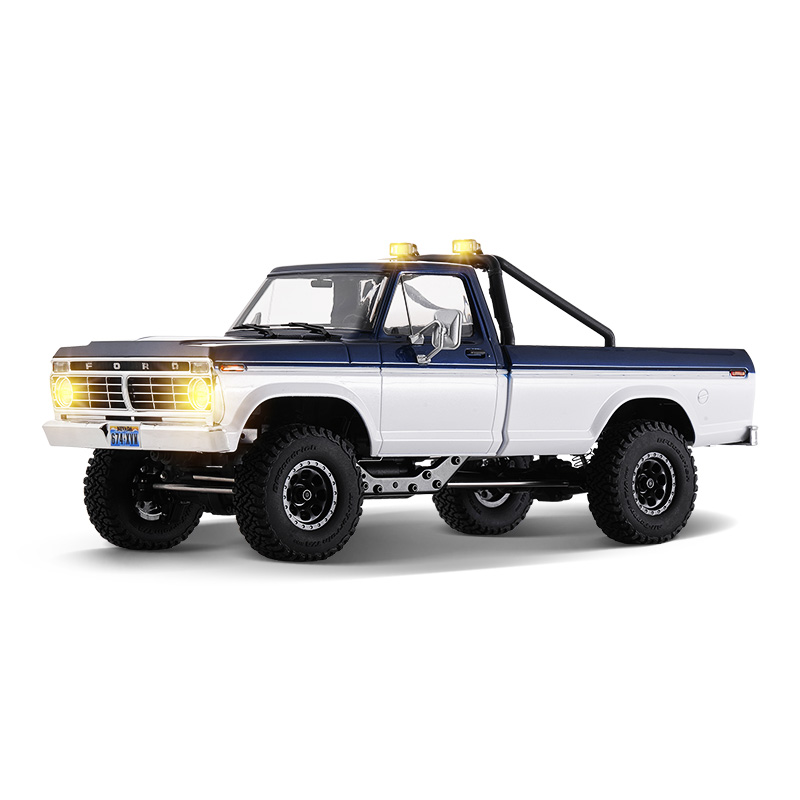

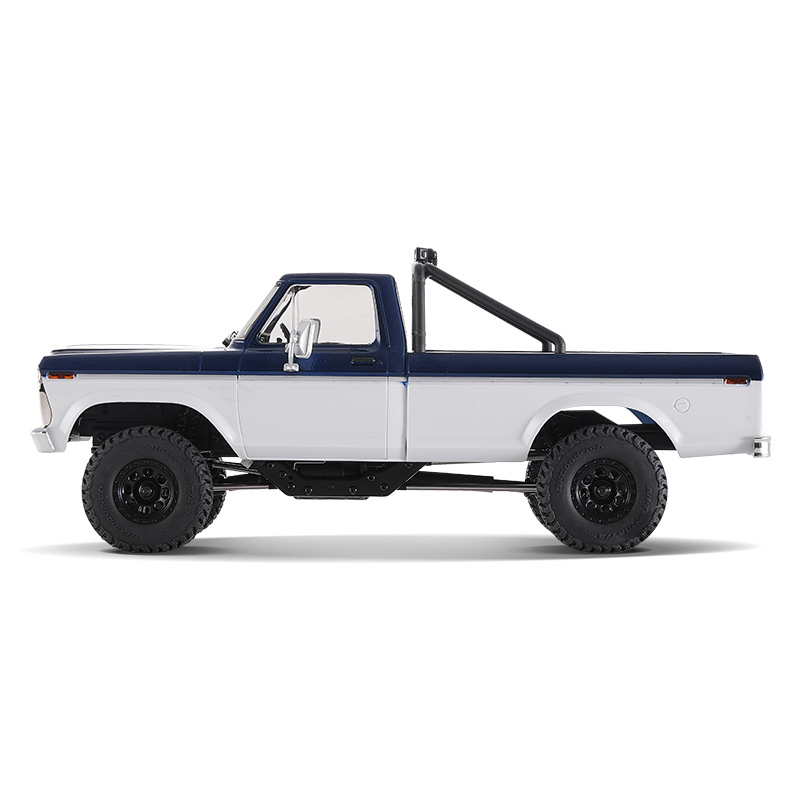

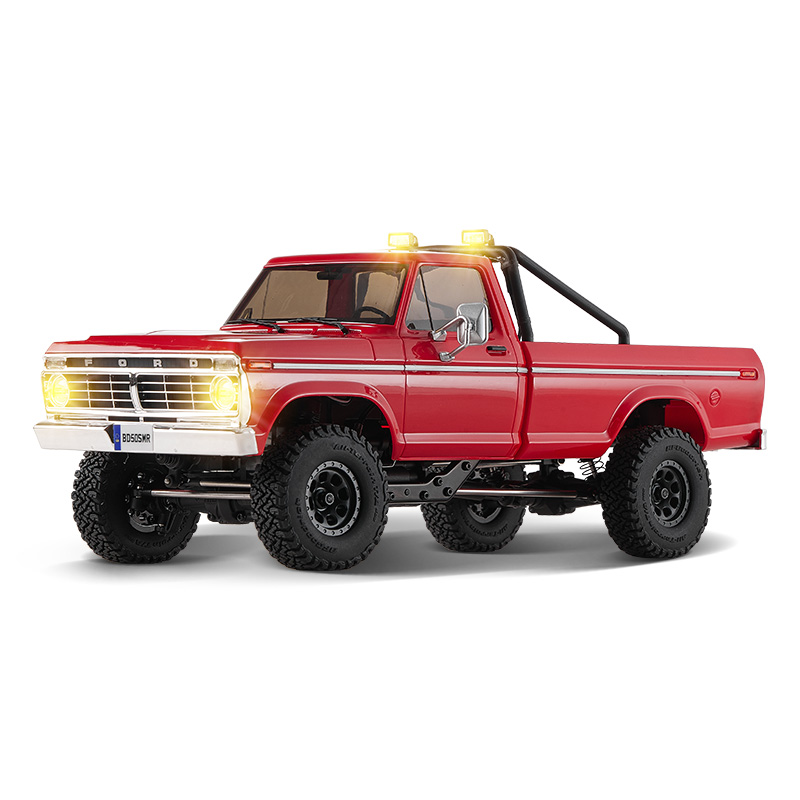

Authorized by Ford Motor Company, the FMS model is built on the all-new FCX18 second-generation low center of gravity (LCG) chassis and introduces the classic Ford F-100 in scale form. The Ford F-100 body features a durable hard-shell construction, with FMS meticulously replicating the original vehicle's proportions and design lines.

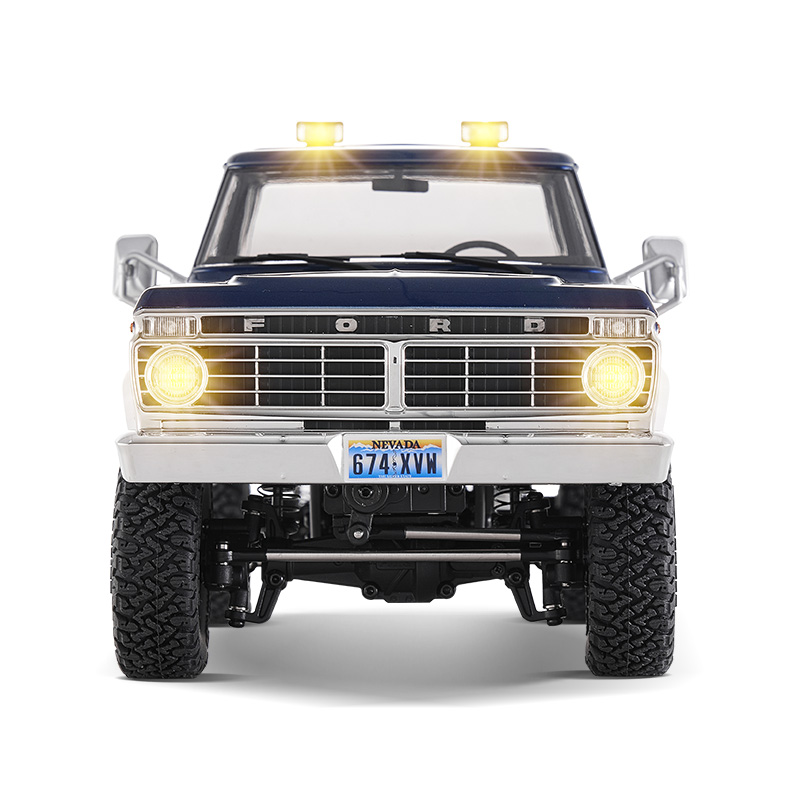

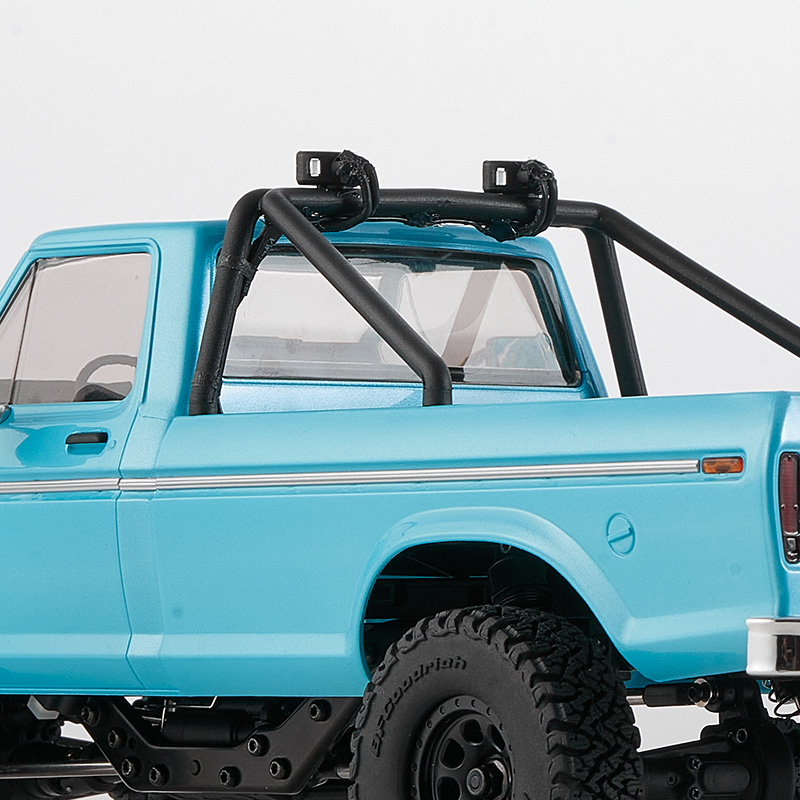

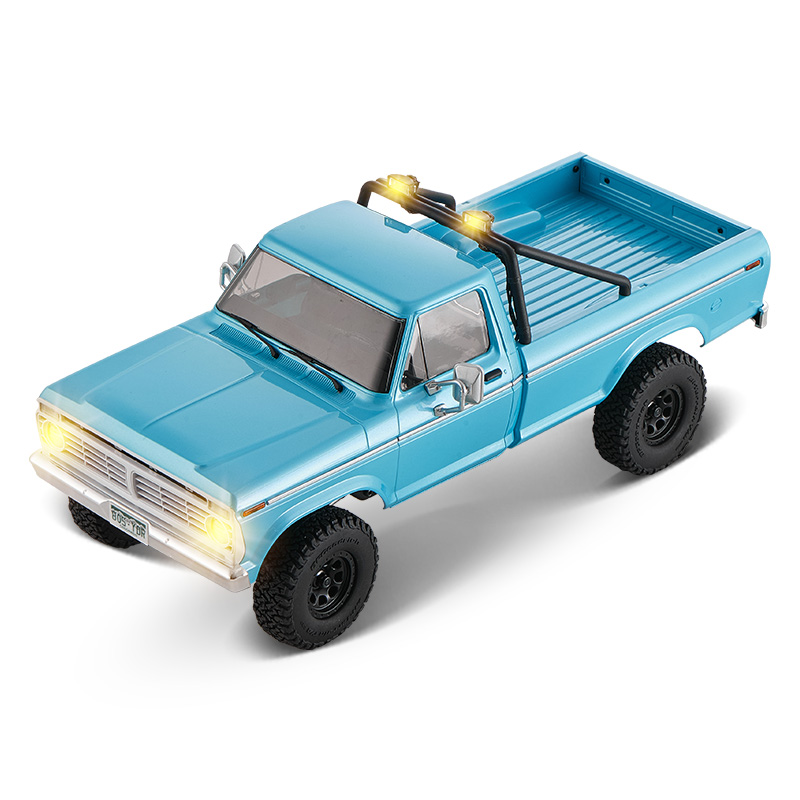

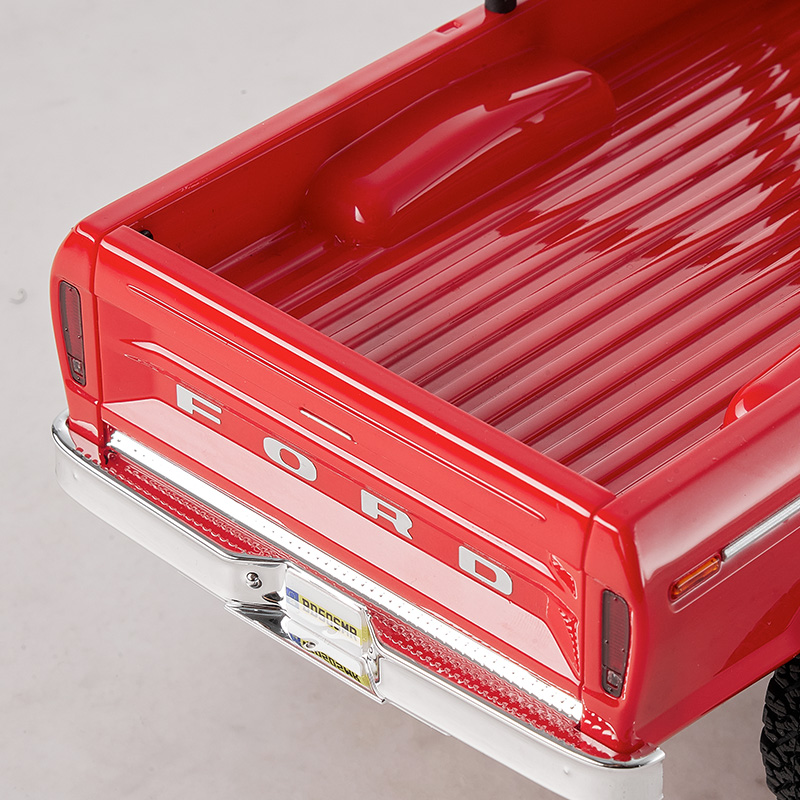

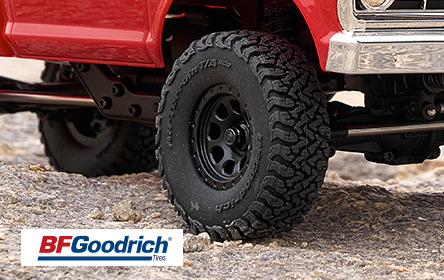

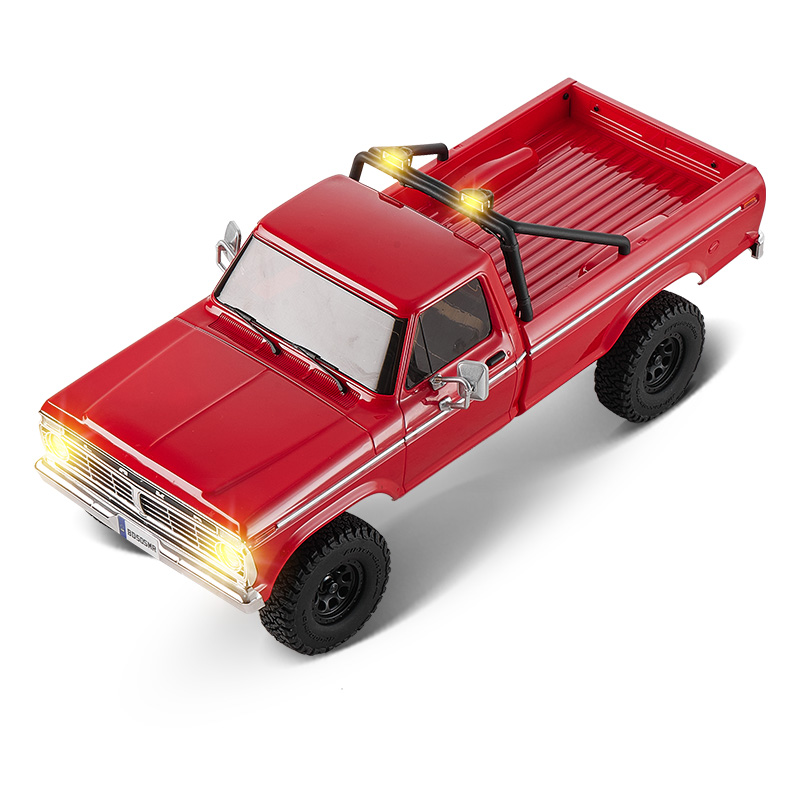

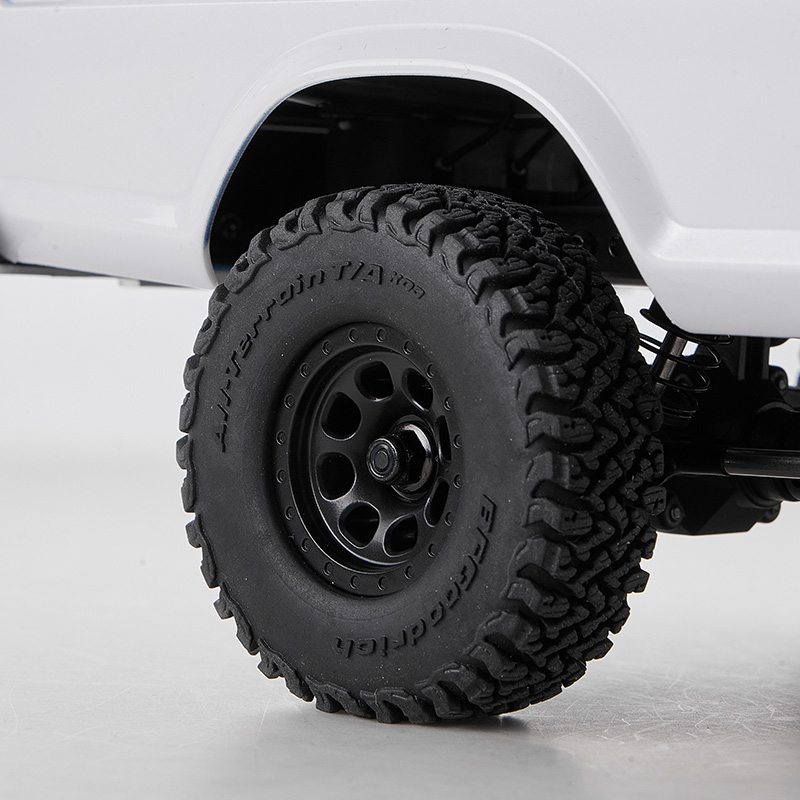

The vehicle features a fully molded scale interior, complete with mirrors and steering wheel, integrated with a synchronized lighting control system. Factory-installed headlights, taillights, turn signals, and roof-mounted spotlights are all individually controllable with linked lighting functions. A 2-in-1 brushed motor and ESC system with a selectable switching function allows easy replacement and future upgrades. Hidden wiring within the body and chassis simplifies installation, storage, and customization. Officially licensed BFGoodrich KO3 tires deliver an aggressive appearance while accurately replicating the driving posture and traction characteristics expected of a scale crawler.

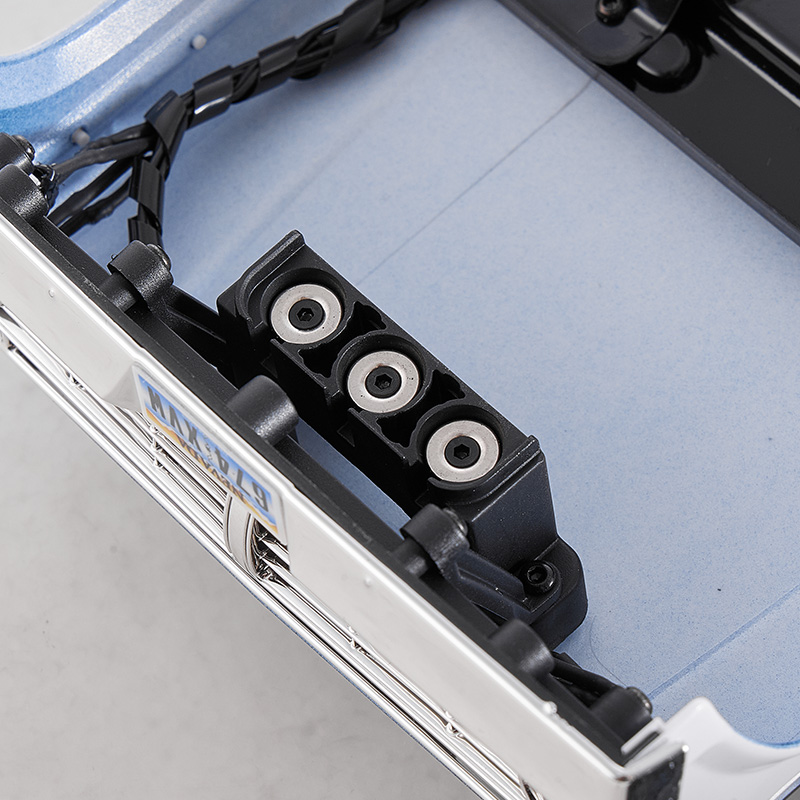

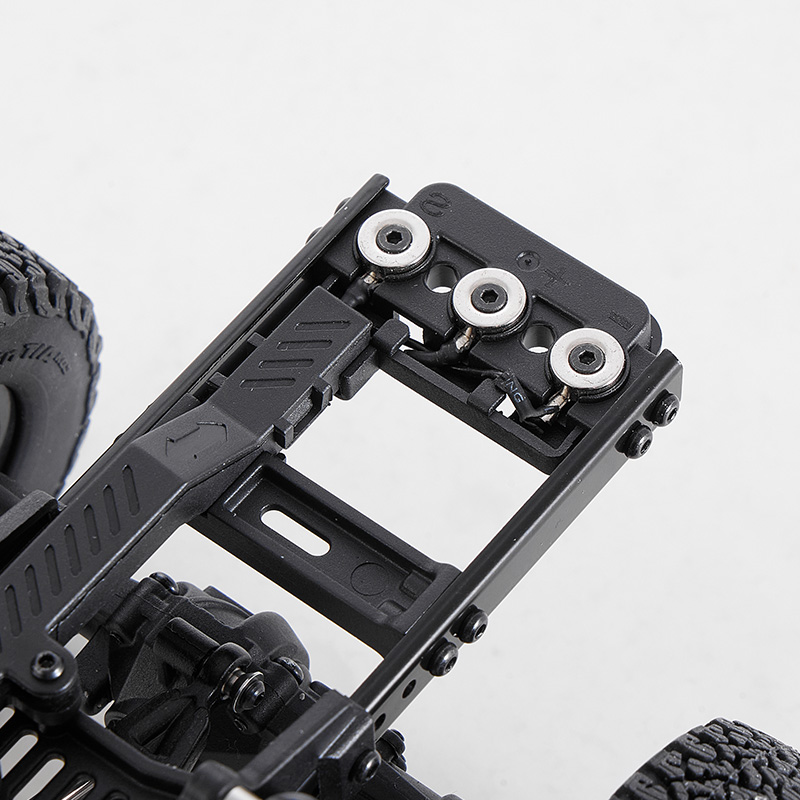

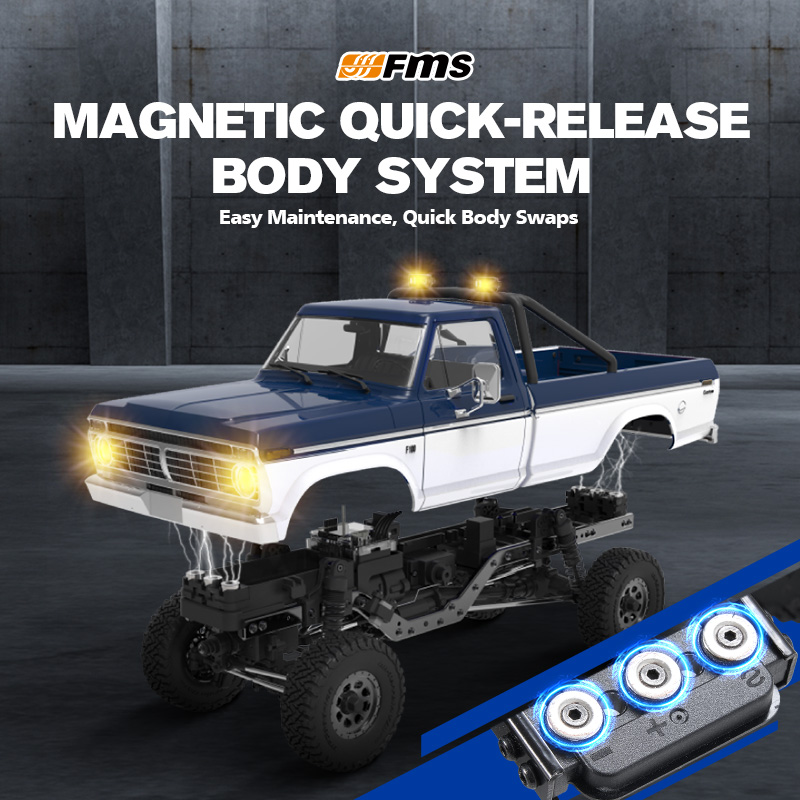

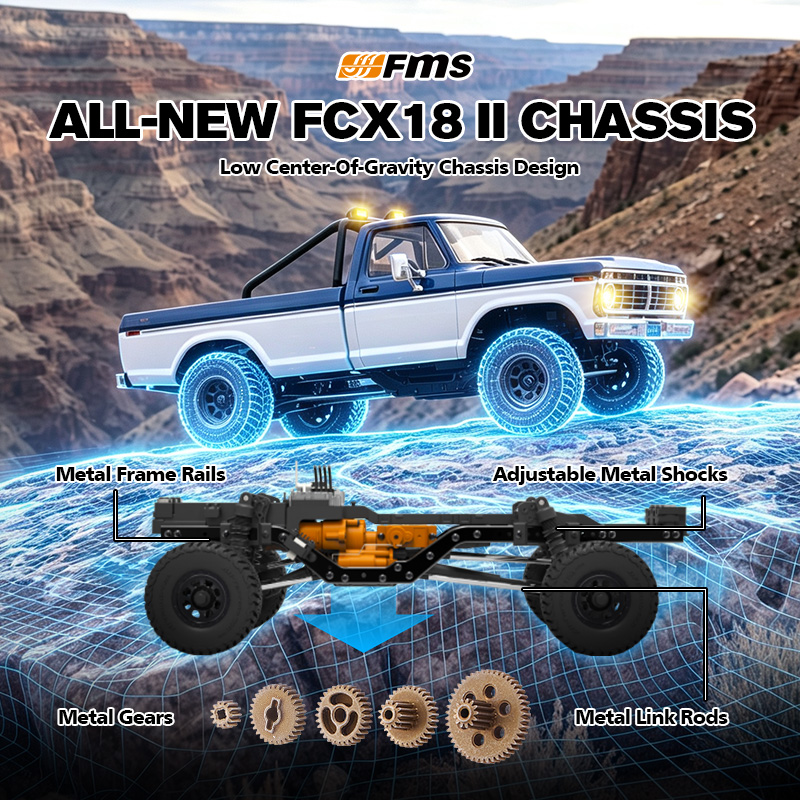

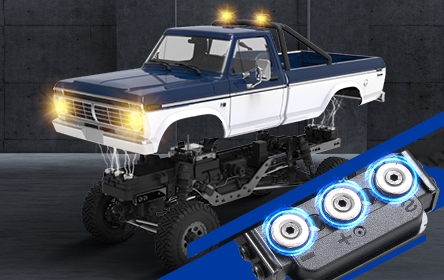

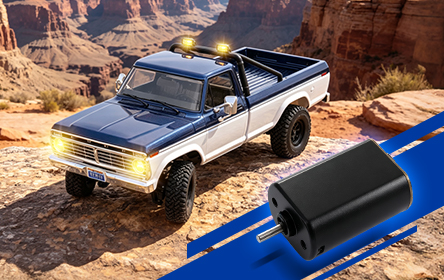

In terms of power and handling, the Ford F-100 features a full-time 4WD drivetrain. A high-performance 180 brushed motor is mounted at the front of the chassis to provide strong, consistent power output. The LCG layout combined with the magnetic quick-release body system is a key feature of the second-generation FCX18 platform, improving climbing stability and vehicle posture while reducing rollover risk on technical terrain. Different Painted body shells can be swapped in approximately two seconds, and the magnetic interface automatically supplies power to the body-mounted lighting system, allowing full lighting activation directly from the transmitter.
What's in the box:
- 1 x 1:18 FCX18 II Ford F-100 Vehicle
- 1 x Transmitter & Receiver (installed)
- 1 x 7.4V 900mAh Battery
- 1 x USB Battery Charger
- 1 x Decal Sheet
- 1 x Product Manual
Need to Complete:
- 4 x AAA Batteries for Transmitter
Specification:
| Product Size |
330x145x147 mm |
| Wheelbase |
199mm |
| Tire Size |
Φ 58*19 mm |
| Ground Clearance |
31mm |
| Approach Angle |
59° |
| Departure Angle |
53° |
| Gear Ratio |
High Gear: 17.7
Low Gear: 94.2 |
| Motor |
180 Brushed Motor |
| Receiver / ESC 2 In 1 Set |
FMS-R3D-BS |
| Battery |
2S Lipo 7.4V 900mAh |
| Radio Range |
Approx. 80m |
| Run Time |
Approx. 40-60 mins |
| Radio System |
FS-MG44 Transmitter |
FAQ:
1. What is the FMS FCX18 II F-100?
The FMS FCX18 II F-100 is a 1:18 scale RC crawler featuring an officially licensed Ford F-100 body, a 199mm wheelbase chassis, and a magnetic quick-release body system. Designed for enthusiasts who value both scale realism and crawling performance, it combines authentic truck details with capable off-road performance in a compact size.
With its realistic F-100 styling, portable design, and easy body removal system, the FCX18 II F-100 is built for collectors and drivers who want a detailed RC truck that is ready for both display and trail adventures.
2. Who is the FCX18 II F-100 for?
The FMS FCX18 II F-100 is made for RC enthusiasts who love scale realism, crawling performance, and compact-size adventure. It is ideal for fans of detailed RC trucks, small-scale crawlers, Ford vehicles, classic F-100 styling, and vintage-inspired builds. Whether you are a collector or a trail driver, the FCX18 II F-100 delivers the perfect balance of realistic appearance and enjoyable performance.
3. Is the FCX18 II F-100 a good RC crawler for beginners?
Yes. The FMS FCX18 II F-100 is an excellent choice for beginners thanks to its compact 1:18 scale design, which makes it easy to enjoy both indoor driving and outdoor adventures. Its small size is convenient for storage, transportation, and quick battery changes, making it a great entry point into the world of RC crawling.

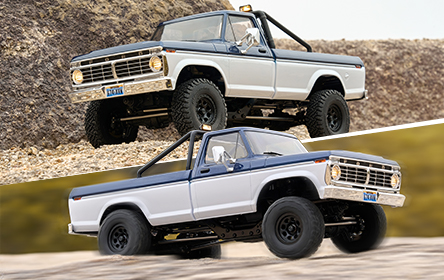

Equipped with a 2-speed transmission, the FCX18 II F-100 offers versatile driving experiences — low gear provides strong torque and precise control for crawling obstacles, while high gear allows for faster cruising on open terrain. This makes it enjoyable for both new drivers and experienced RC enthusiasts.
4. What makes the FCX18 II F-100 different from other 1/18 RC crawlers?

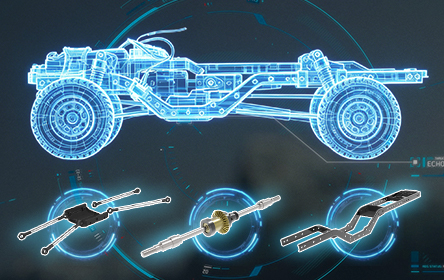

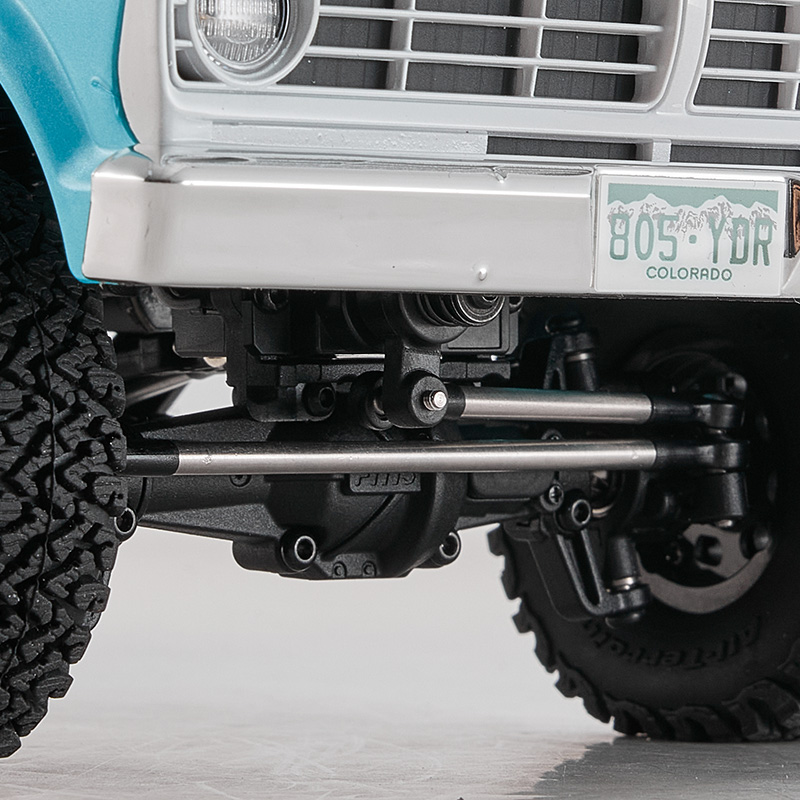

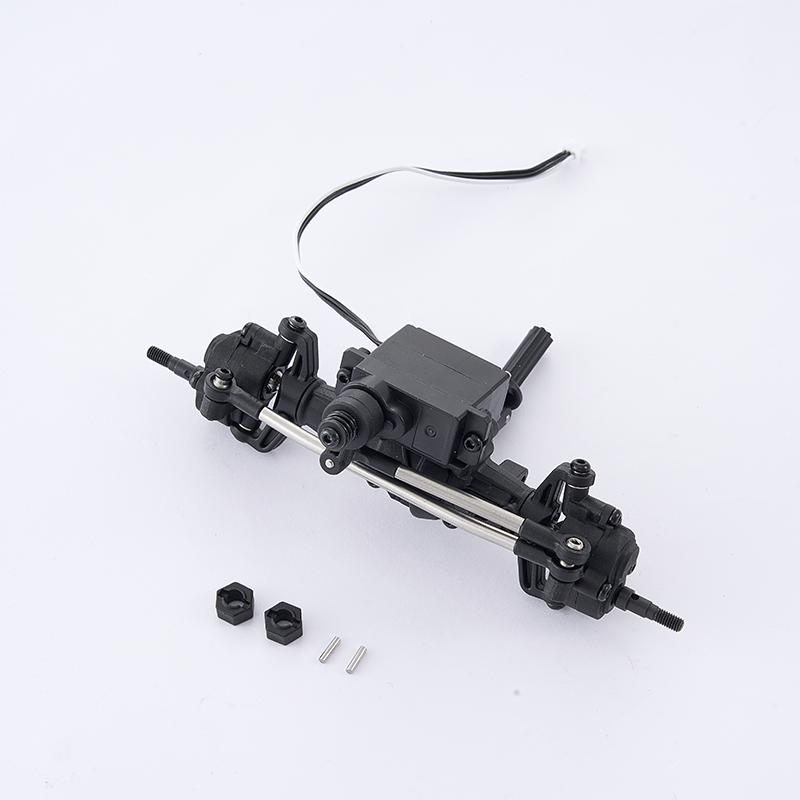

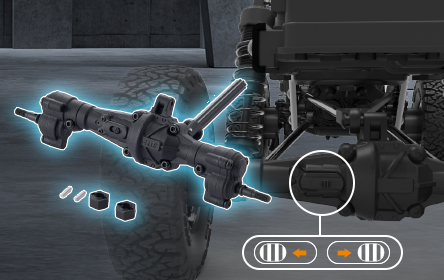

The FMS FCX18 II F-100 stands out with its new FCX18 II chassis platform, combining proven performance upgrades with innovative new features. Building on the original FCX18 chassis, it retains premium components such as metal gears, metal bearings, oil-filled metal shocks, a 2-speed transmission, metal steering links, and a four-link suspension system, while adding further improvements for enhanced crawling performance.

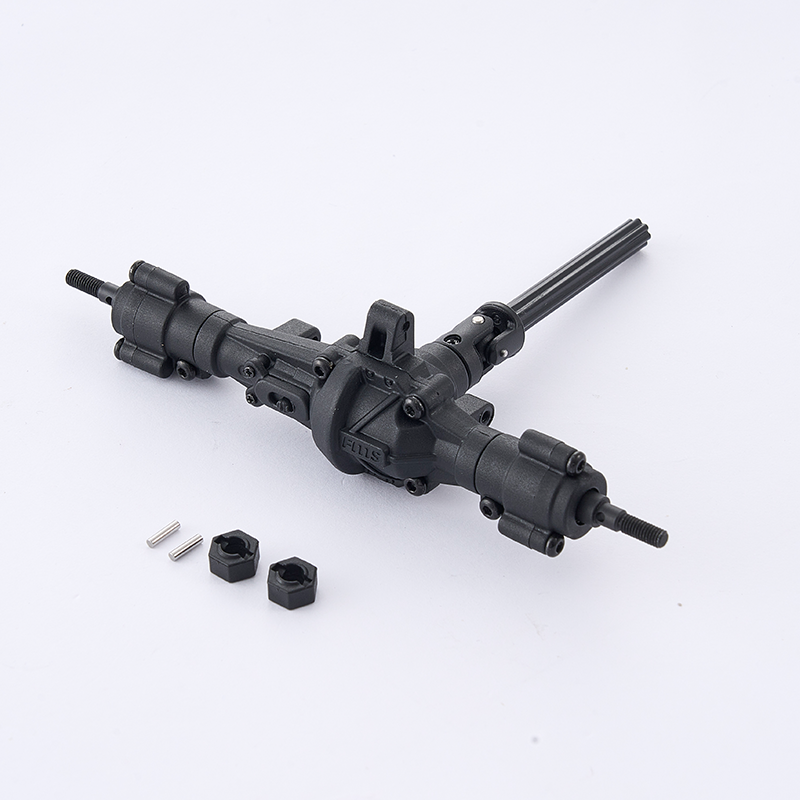

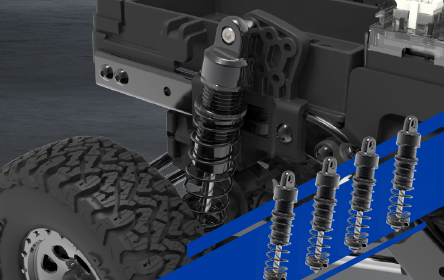

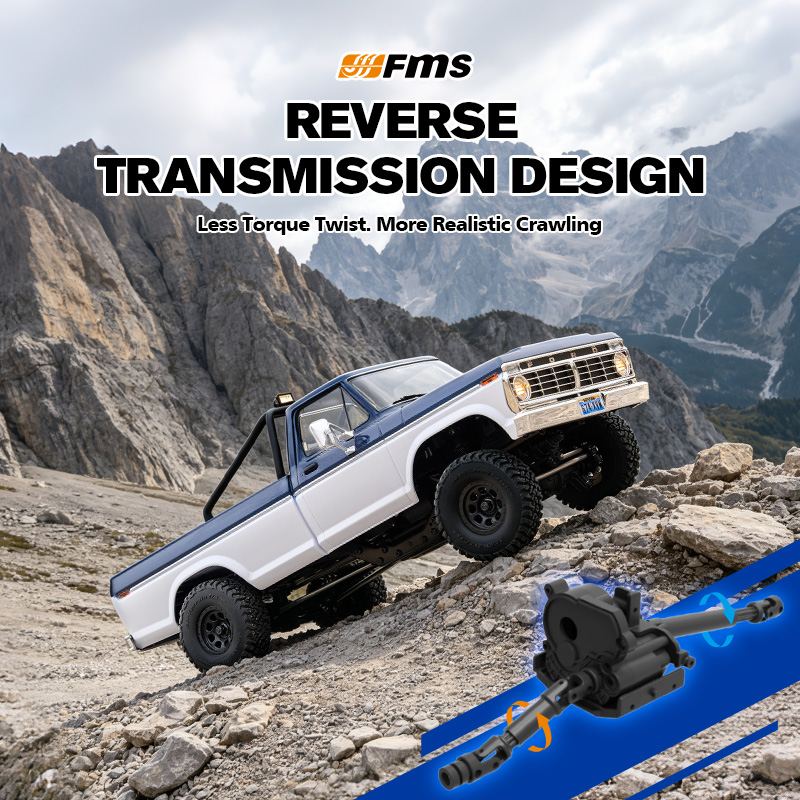

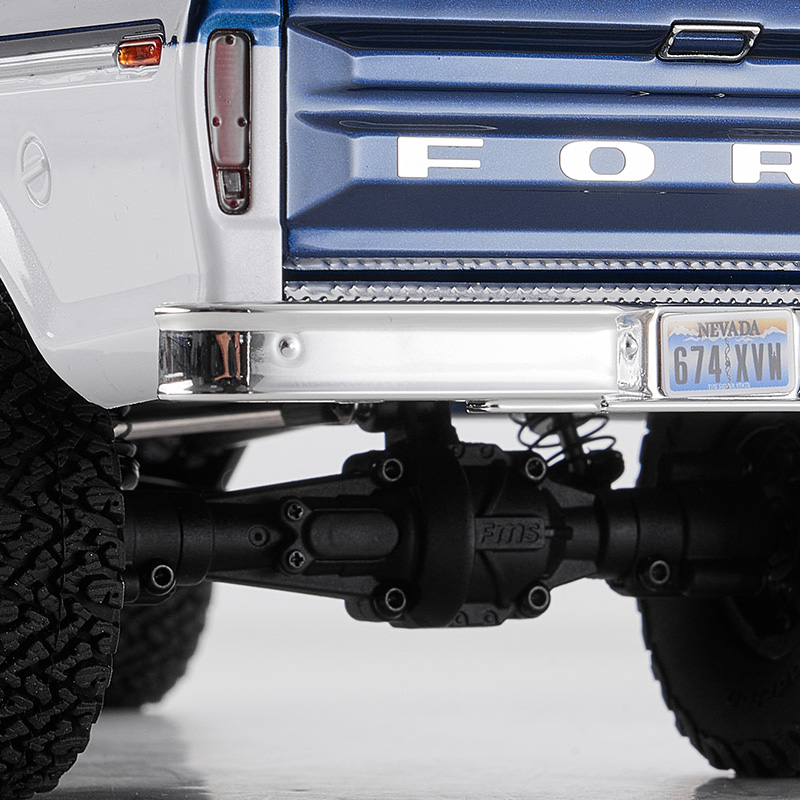

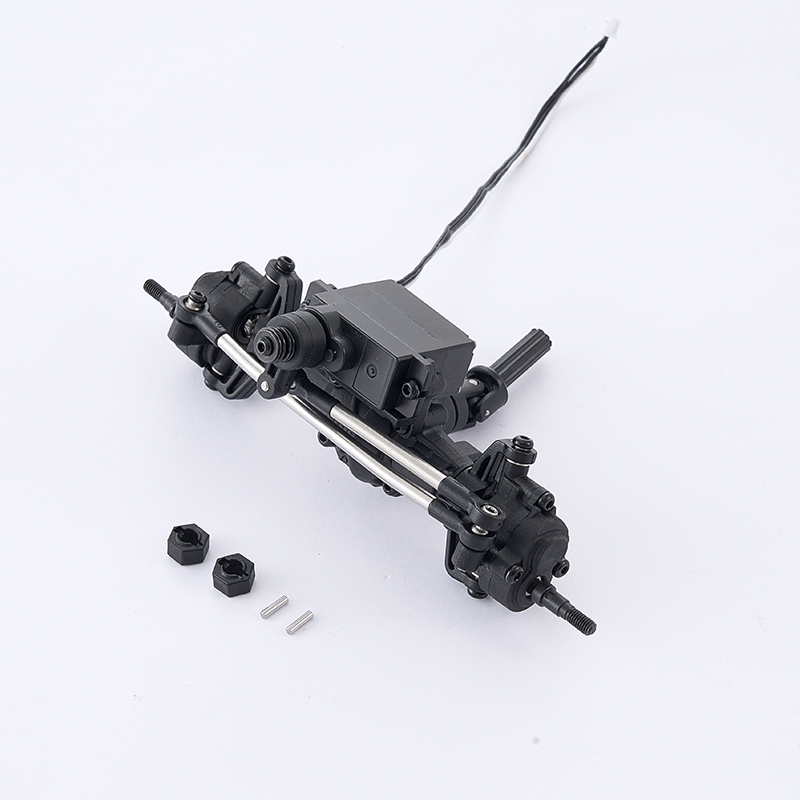

The upgraded low center of gravity chassis layout, magnetic quick-release body and power contact system, multi-position shock mounting, reverse transmission design, solid axle setup, and independent light controller take the 1/18 crawling experience to a higher level. With a fully equipped platform and room for future customization, the FCX18 II F-100 delivers exceptional capability, realism, and upgrade potential in a compact RC crawler.
5. Why should I choose the FCX18 II F-100?
The FMS FCX18 II F-100 is designed for RC enthusiasts who want more than just a crawler — it delivers the ideal balance of scale realism, crawling performance, and everyday usability. With its officially licensed Ford F-100 body, authentic truck details, and upgraded FCX18 II chassis platform, it offers a highly detailed appearance without sacrificing trail capability.
Featuring a low center of gravity chassis, 2-speed transmission, solid axle design, metal drivetrain components, and advanced features like the magnetic quick-release body system, the FCX18 II F-100 provides stable crawling performance, easy maintenance, and a more immersive driving experience. Its compact 1:18 scale size also makes it easy to enjoy anywhere — from indoor spaces to outdoor trails — while leaving room for future customization and upgrades.
6. What are the key features of the FCX18 II F-100?
The FMS FCX18 II F-100 combines authentic scale styling with advanced crawling performance through a range of upgraded features. Key highlights include an officially licensed Ford F-100 body, a 199mm wheelbase low center of gravity chassis, and a magnetic quick-release body and power contact system for easy maintenance and enhanced convenience.
Its performance-focused chassis features metal gears, metal bearings, oil-filled metal shocks, a 2-speed transmission, metal steering links, four-link suspension, solid axles, reverse transmission design, and multi-position shock mounting for improved durability, stability, and crawling capability. Additional features such as an independent light controller and detailed scale accessories further enhance realism and driving enjoyment.
7. Is the FCX18 II F-100 RTR and ready to run?
Yes. The FMS FCX18 II F-100 comes in a complete RTR (Ready-to-Run) package, allowing you to start driving right out of the box. No additional assembly or major setup is required — simply charge the battery, install it, and enjoy your first RC crawling adventure.
8. What comes with the FCX18 II F-100?
The FMS FCX18 II F-100 RTR package includes everything needed to get started, including the transmitter, battery, charger, quick start guide, and decal sheet. It also comes with exclusive scale accessories, including a surfboard decoration and a livery-matched magnetic badge that doubles as a fridge magnet for added realism and collectible value.
