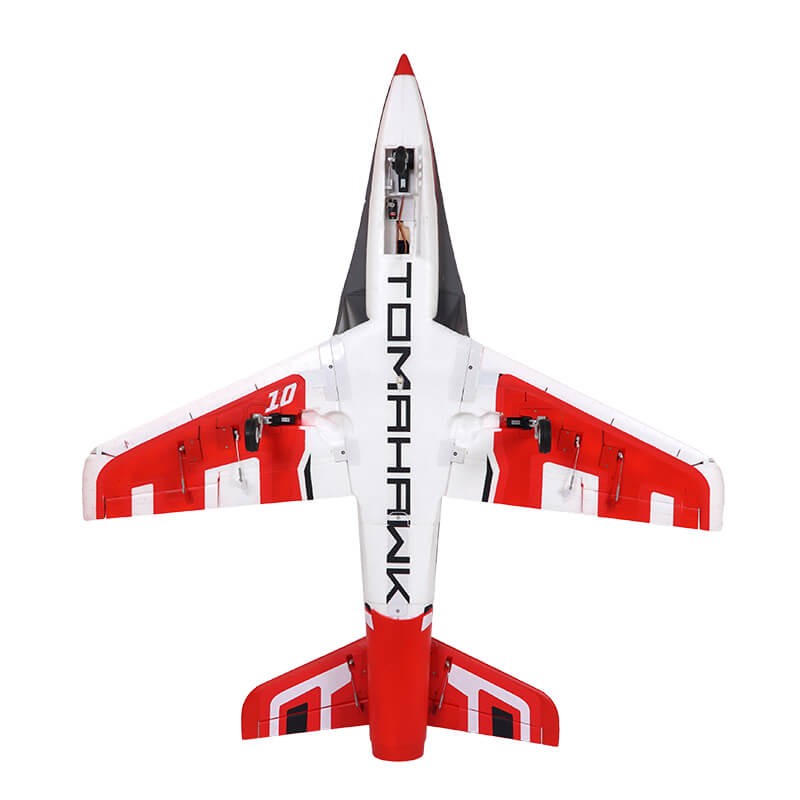

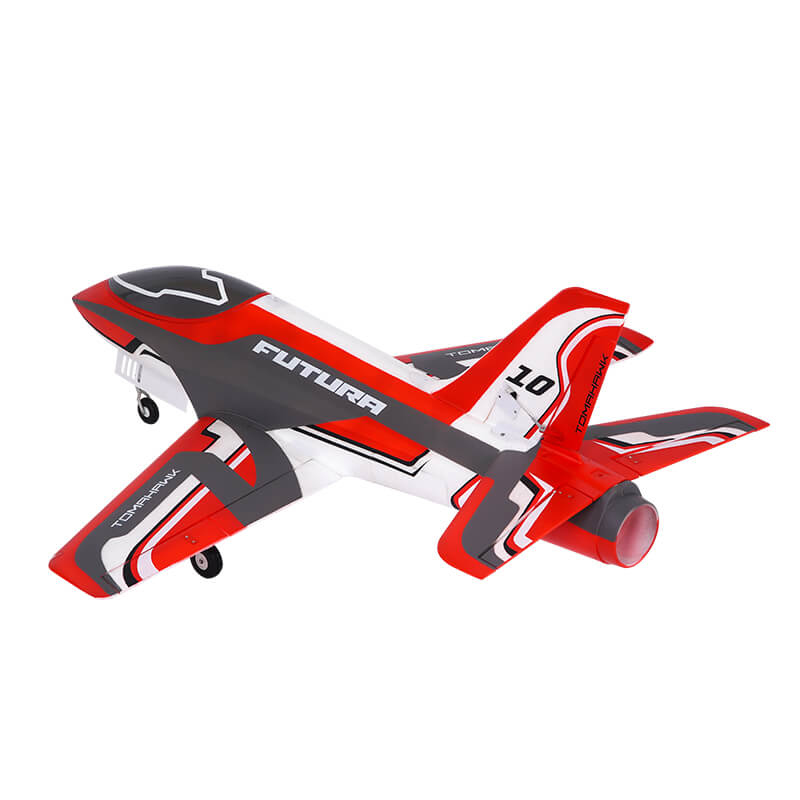

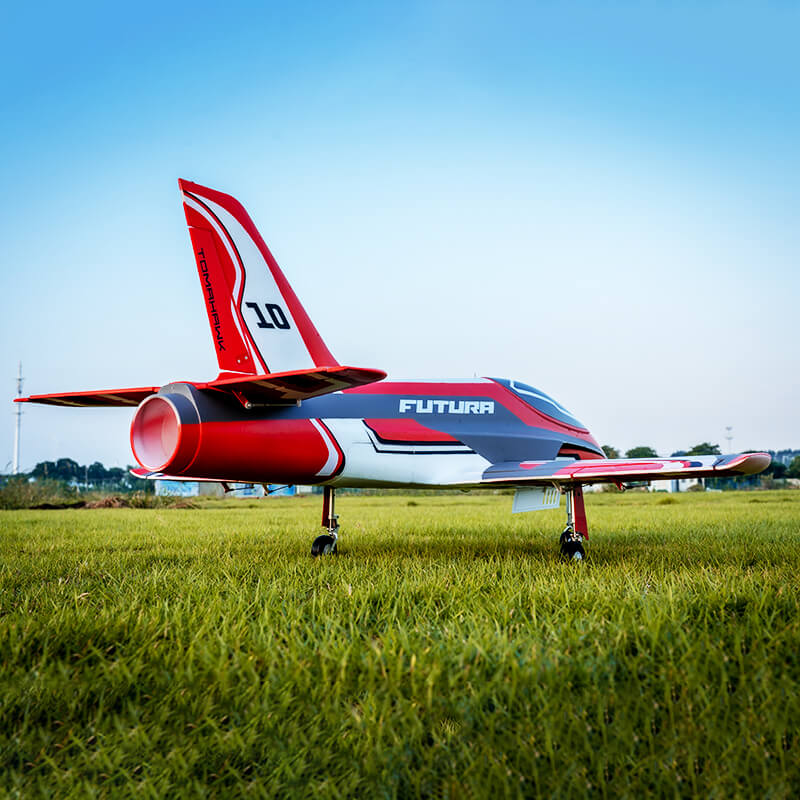

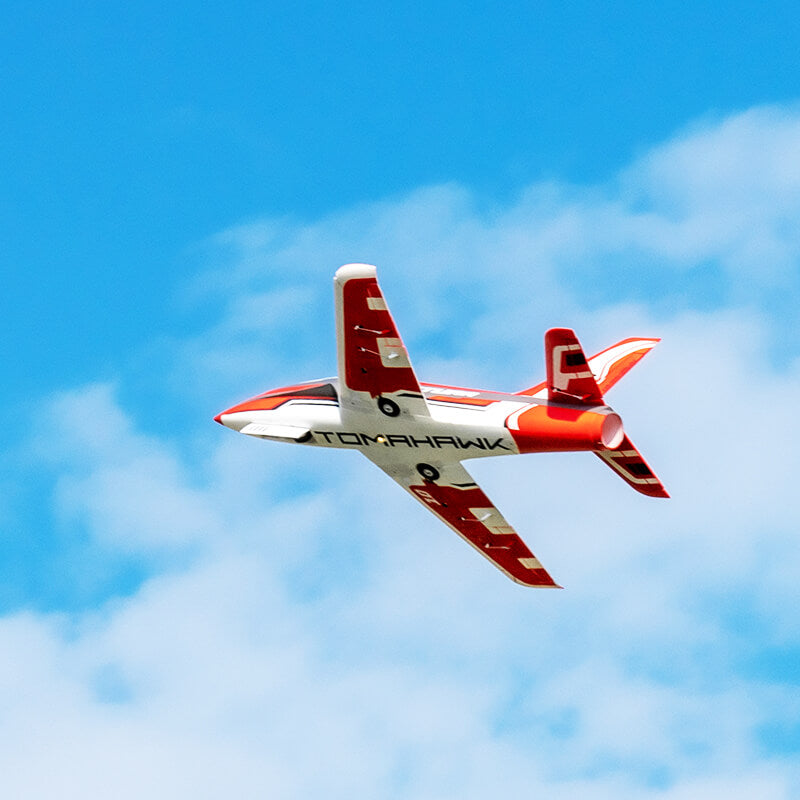

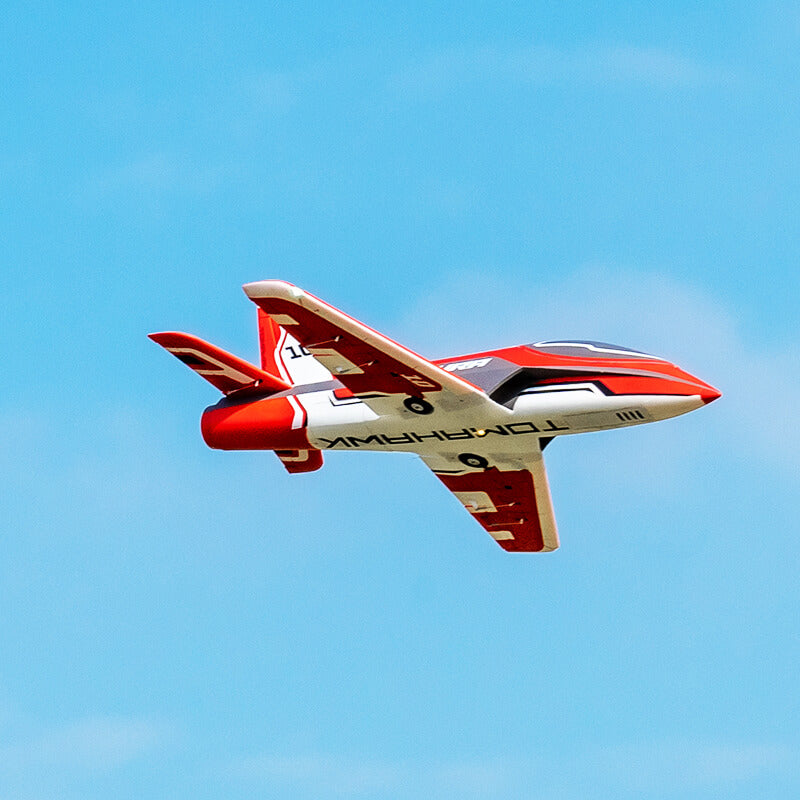

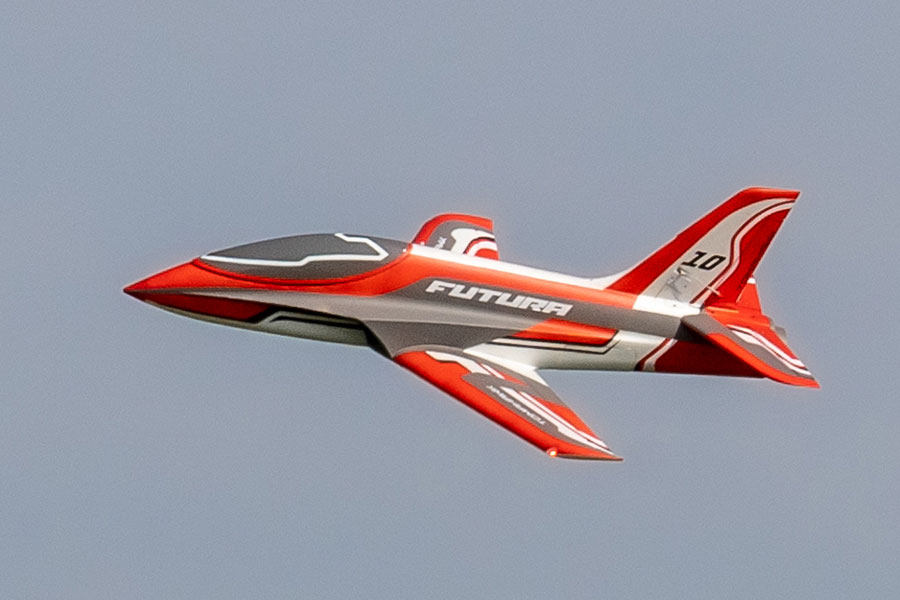

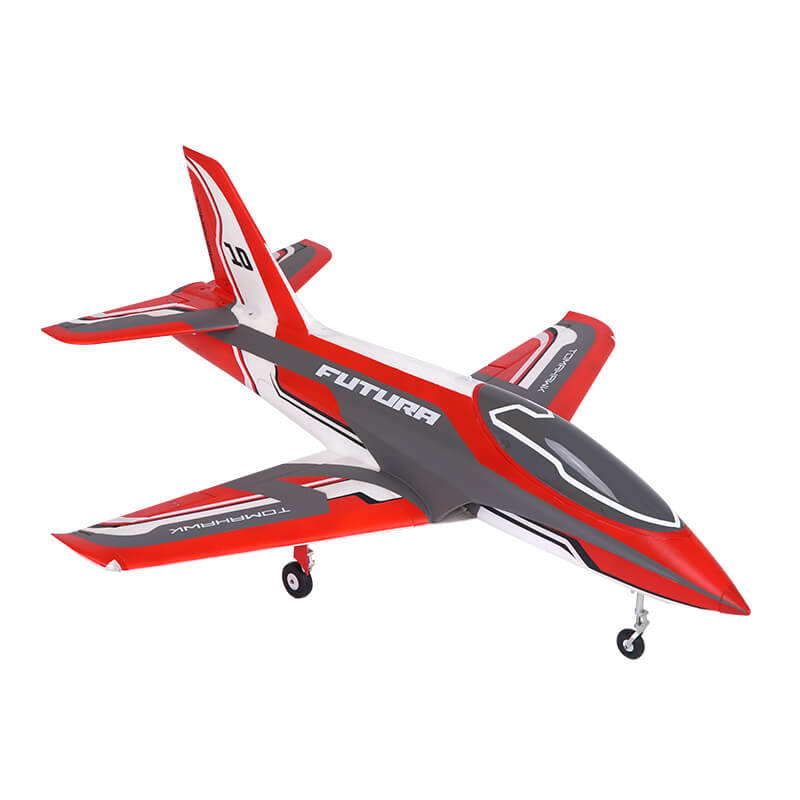

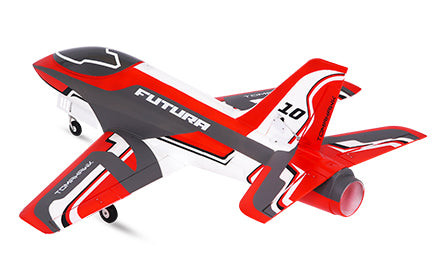

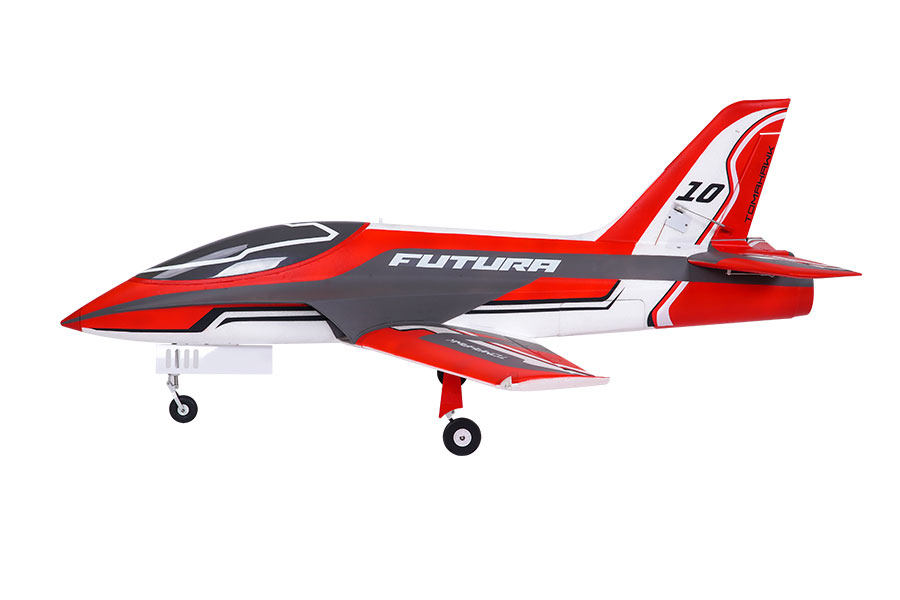

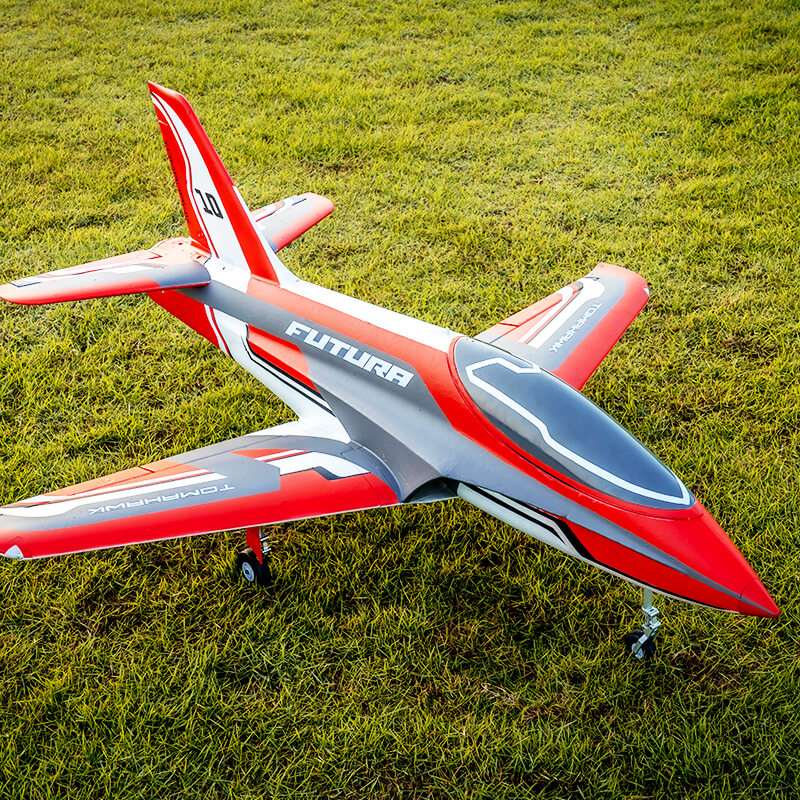

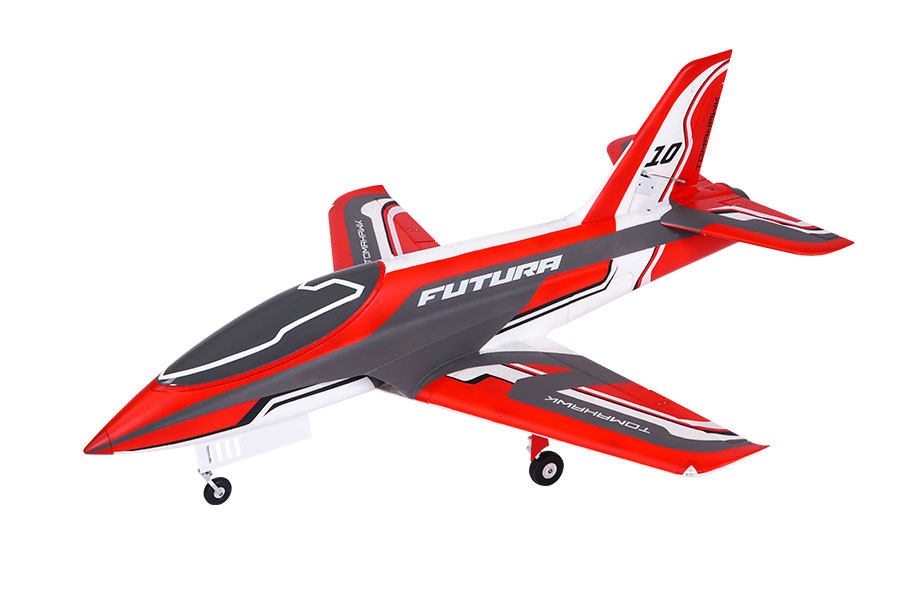

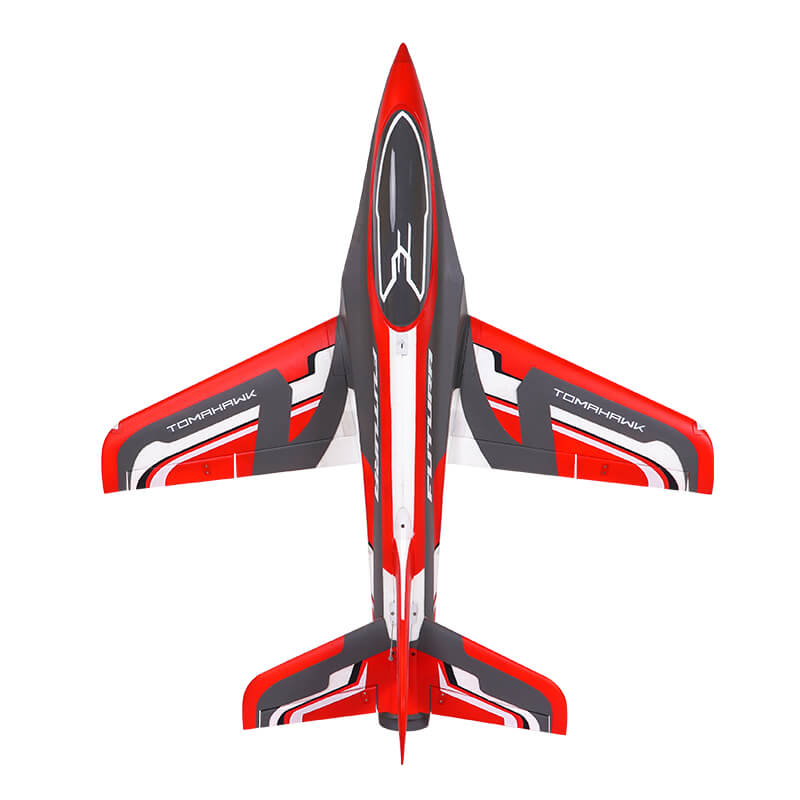

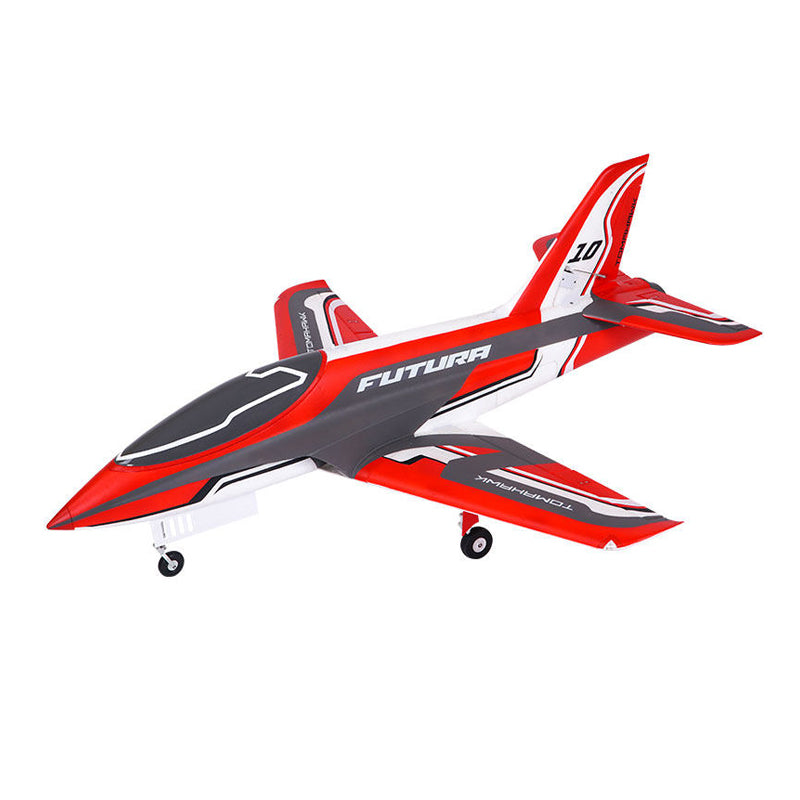

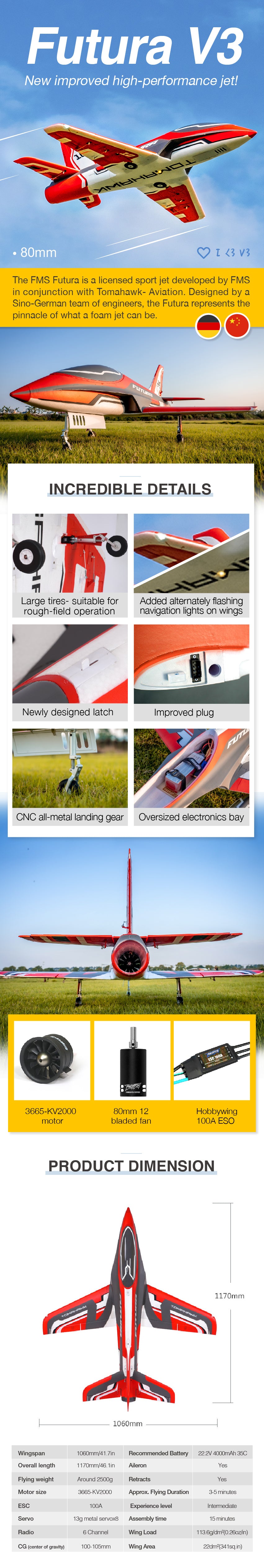

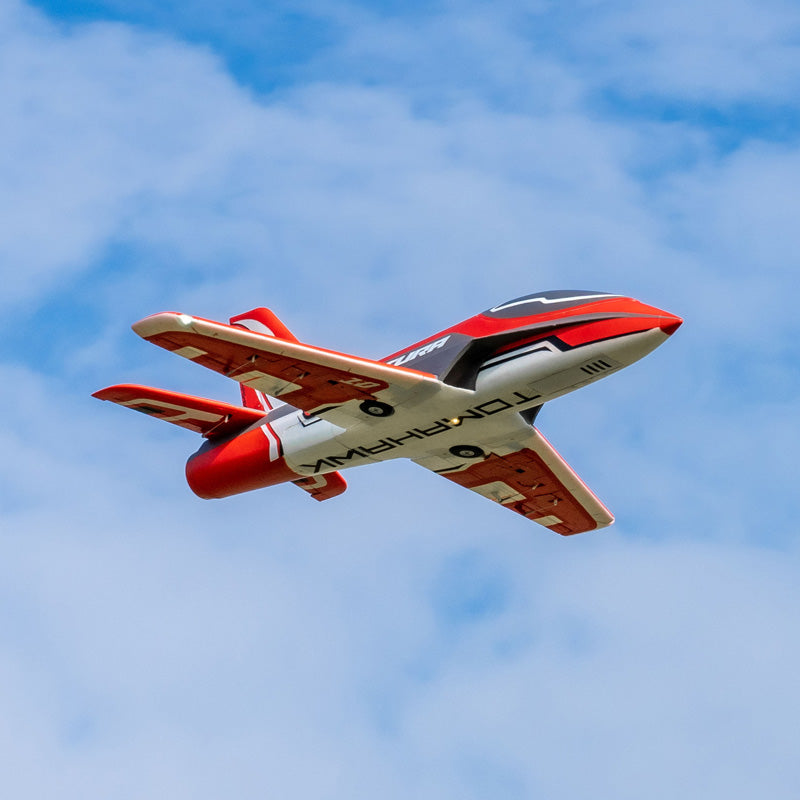

The FMS Futura is a licensed sport jet developed by FMS in conjunction with Tomahawk- Aviation. Designed by a Sino-German team of engineers, the Futura represents the pinnacle of what a foam jet can be.

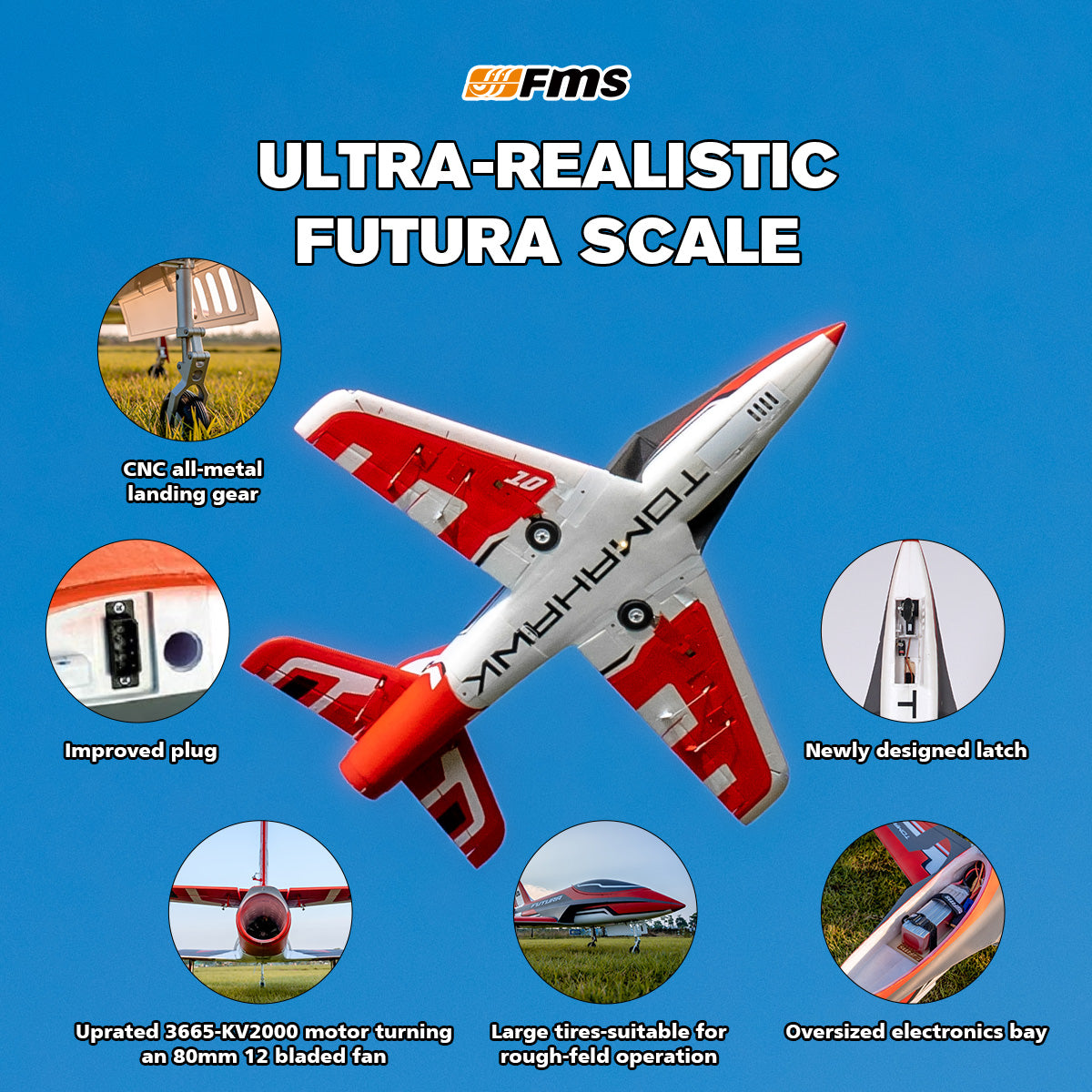

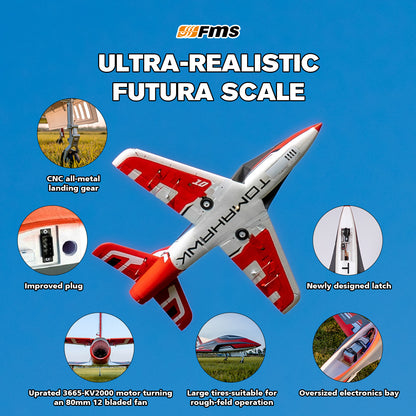

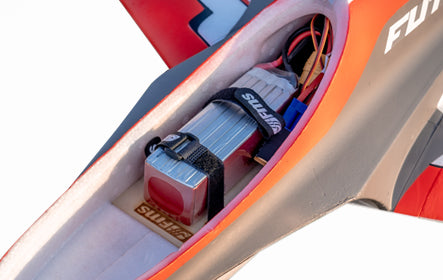

While retaining V1 features such as the CNC metal trailing-link landing gear for rough field operations, robust airframe with high-strength wing spars, oversized electronics bay, etc, and V2 features such as 13g all-metal digital servos for increased precision and torque, improved durable and reliable plug-type connectors, the FMS 80mm Futura V3 is upgraded with added alternately flashing navigation lights on the left and right wings and taxi lights on the bottom of the fuselage, and a recognizable and attractive red-grey paint scheme.

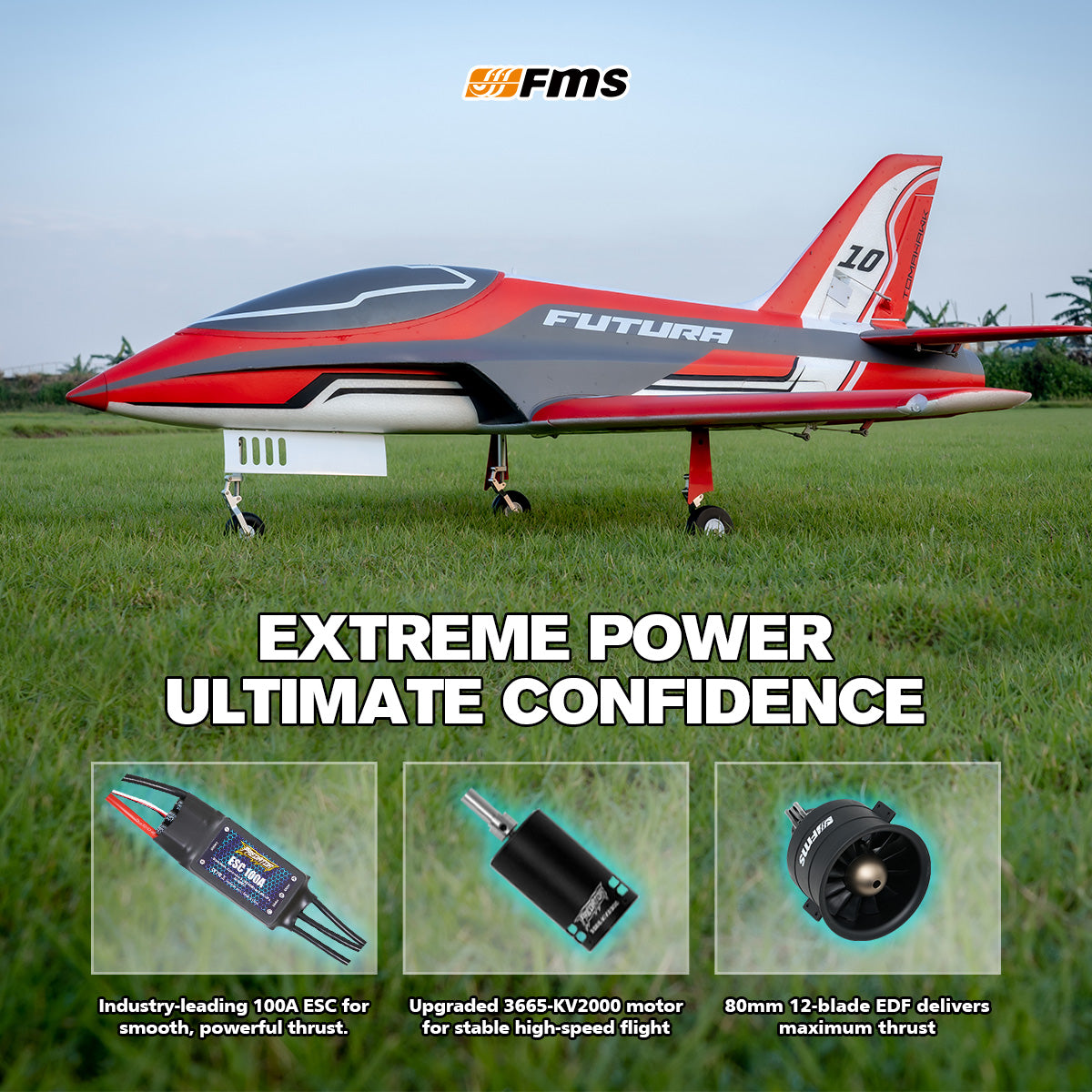

Powering the Futura V3 is an industry-leading Hobbywing 100A ESC paired with an uprated 3665-KV2000 motor turning an 80mm 12-bladed fan- delivering breathtaking power with absolute confidence.

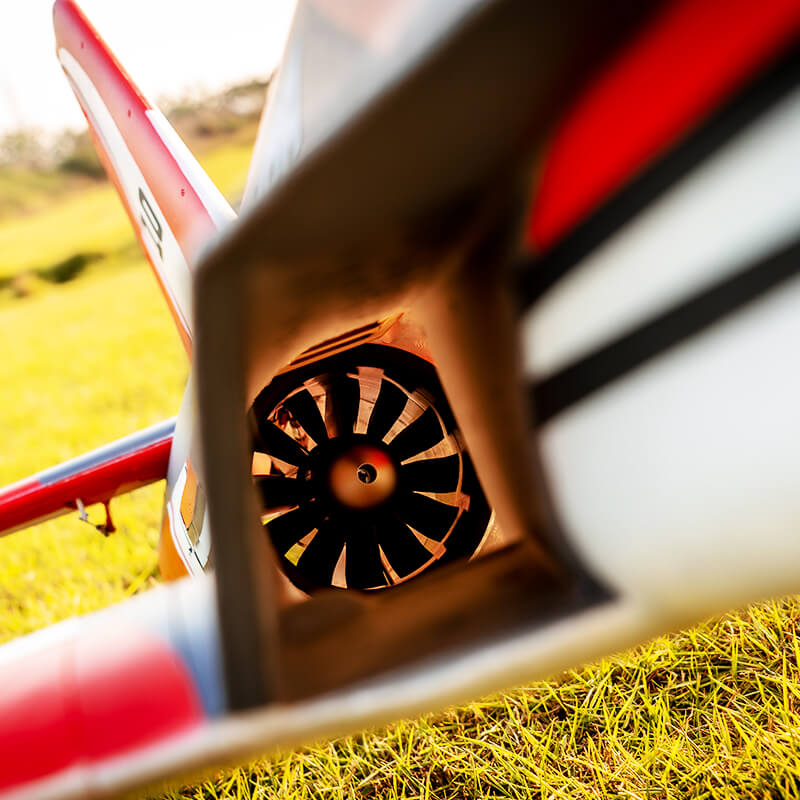

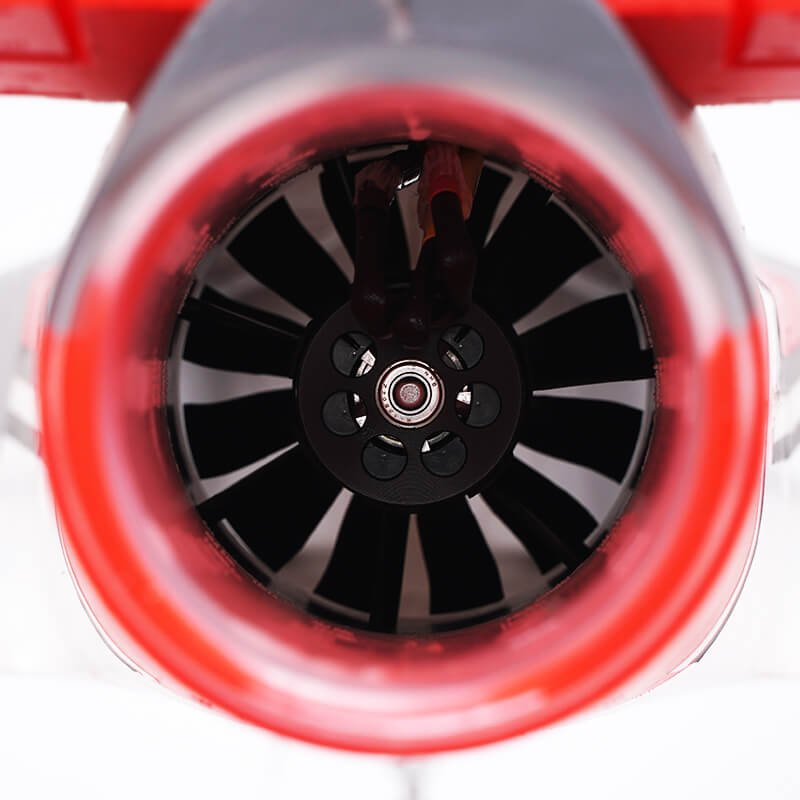

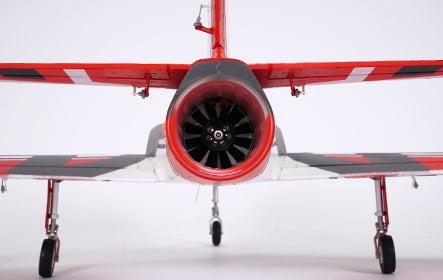

(1) 80mm EDF with 12 bladed fan
(2) 3665-KV2000 Brushless Motor (installed)
(3) Hobbywing 100A ESC ESC (installed)

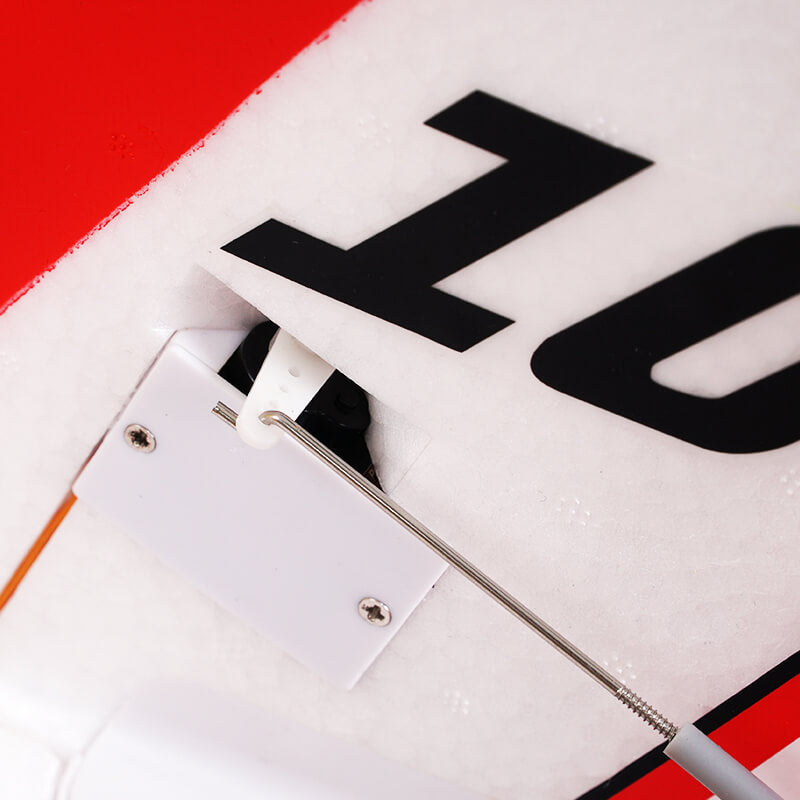

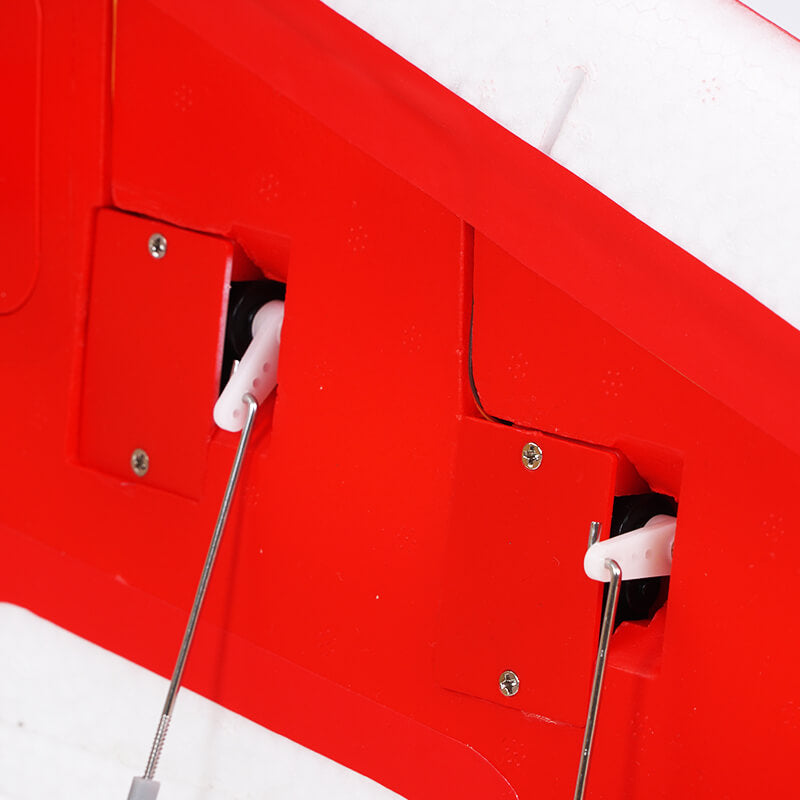

(4) 13g Digital All-metal Servos (installed)

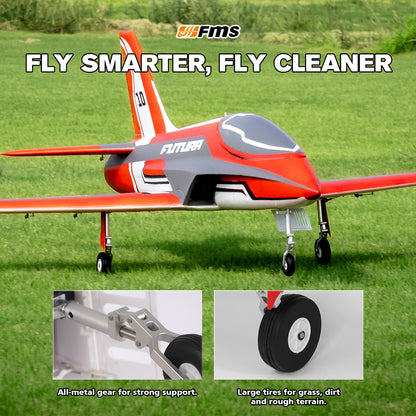

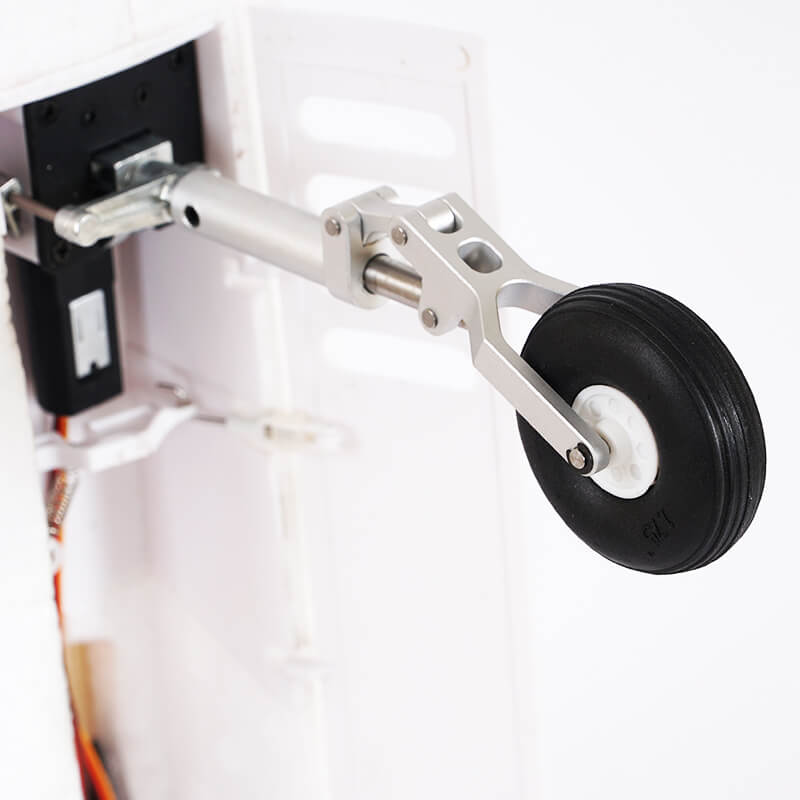

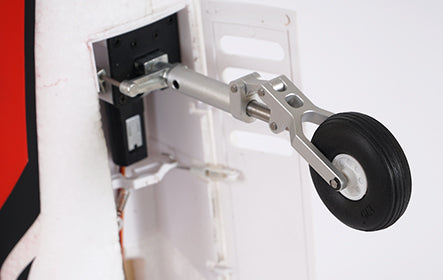

(5) CNC All-metal Landing Gear (installed)
(6) Flashing Navigation Lights On Wings And Taxi Tights On the Bottom Of the Fuselage (installed)

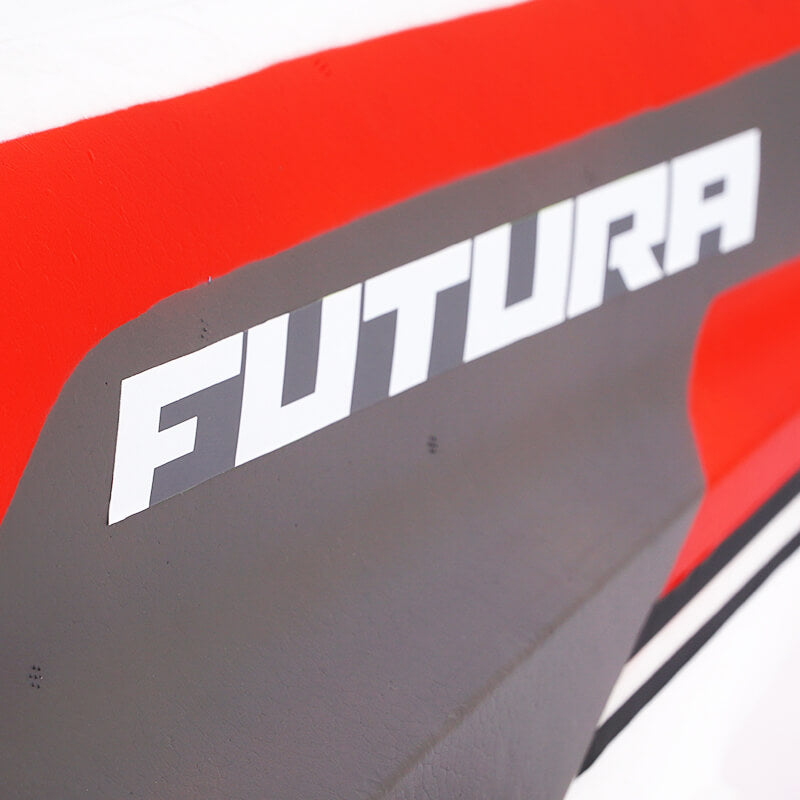

(7) Attractive Red-gray Decal
(8) Product Manual
| Specification | |
| Wingspan | 1060mm/41.7in |
| Overall Length | 1170mm/46.1in |
| Flying Weight | Around 2500g |
| Motor Size | 3665-KV2000 |
| ESC | 100A |
| Servo | 13g metal analog Servo x 8 |
| Radio | 6 Channel |
| CG (center of gravity) | 100-105mm (From Leading Edge) |
| EDF | 80mm Ducted Fan 12-blade |
| Recommended Battery | Li-Po 22.2V 4000mAh 35C |
| Battery Connector | EC5 |
| Aileron | Yes |
| Elevator | Yes |
| Rudder | Yes |
| Flaps | Yes |
| Retracts | Yes |
| Approx. Flying Duration | 3-5 minutes |
| Minimum Age Recommendation | 14+ |
| Experience Level | Intermediate |
| Assembly Time | 15 minutes |
| Wing Load | 113.6g/dm² (0.26oz/in²) |
| Wing Area | 22dm² (341sq.in) |

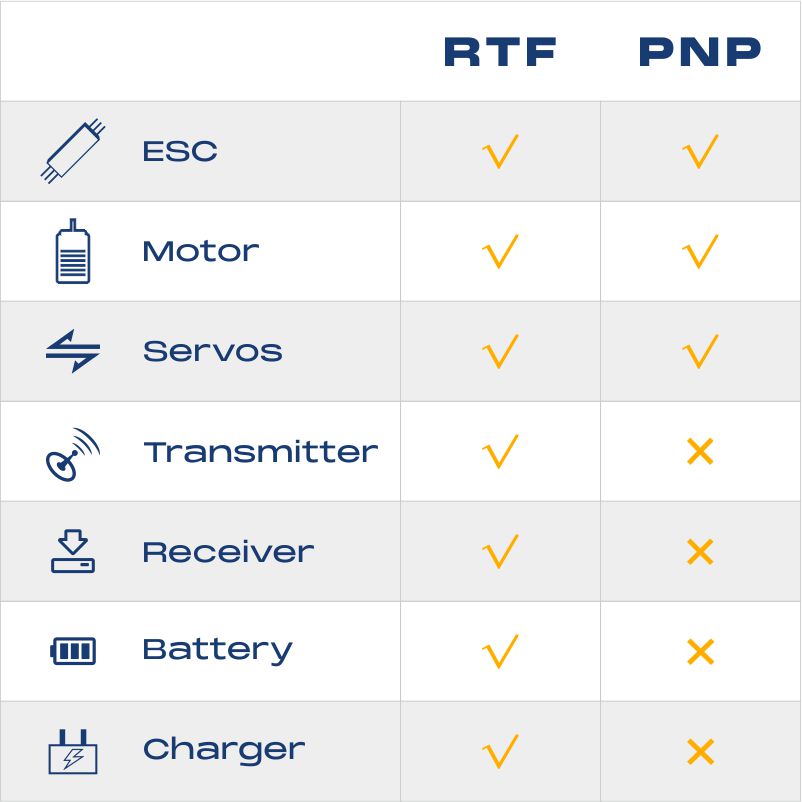

RTF (Ready to Fly) airplanes come with everything you need to fly in the box. A transmitter, receiver, battery, charger, and all other required electronics are included and pre-installed from the factory.
PNP (Plug-and-Play) airplanes include the ESC, motor, and servos all pre-installed from the factory. Transmitter, receiver, battery, and charger are not included.
FMS Reflex V3 Stable Flight Controller
FMS RC Plane Rack
Common Parts - 100A ESC With 300 Input Cable EC5
EDF System: 80mm Ducted fan (12-blade) with 3665-KV2000 inner runner motor (6S) V4

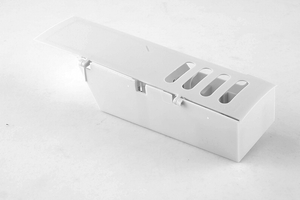

80mm Futura V3 Front Landing Gear Cover and Housing

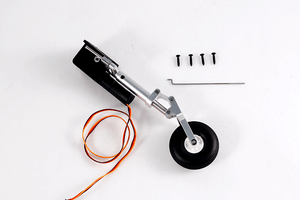

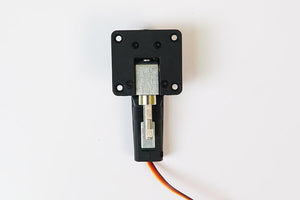

80mm Futura V2/V3 Front Landing Gear System
