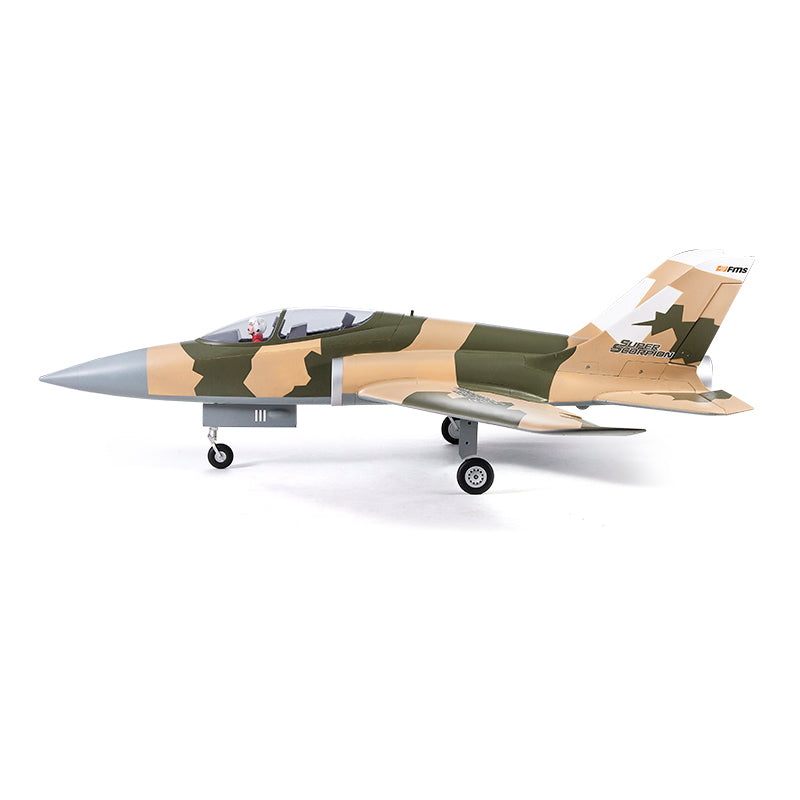

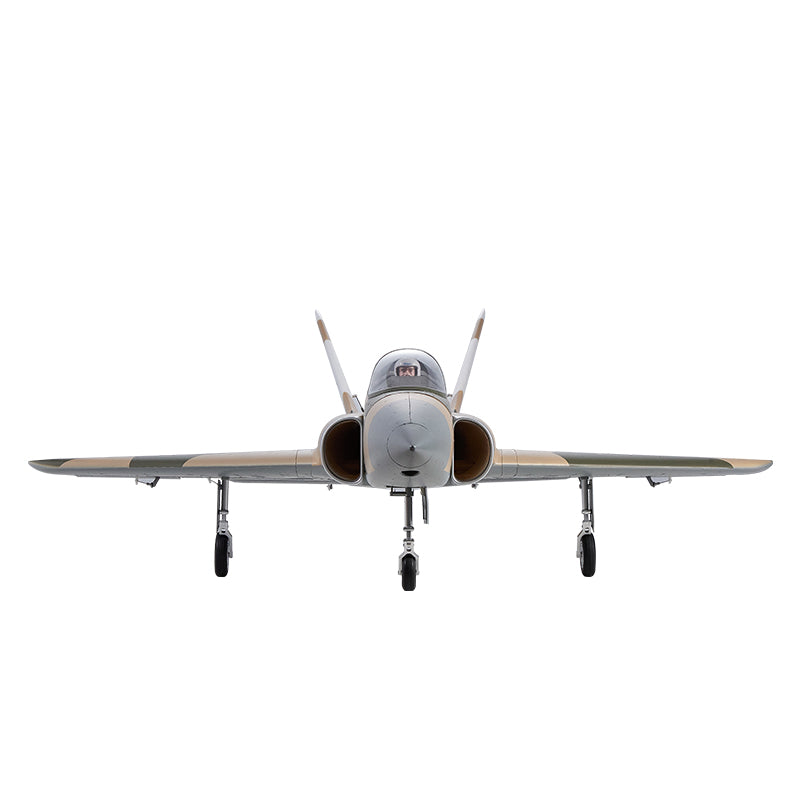

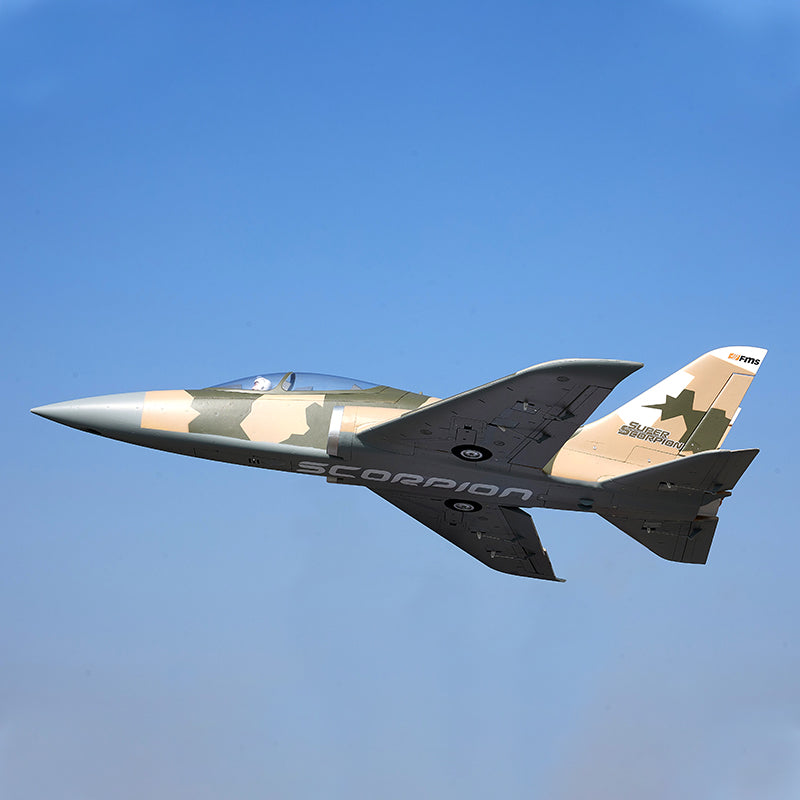

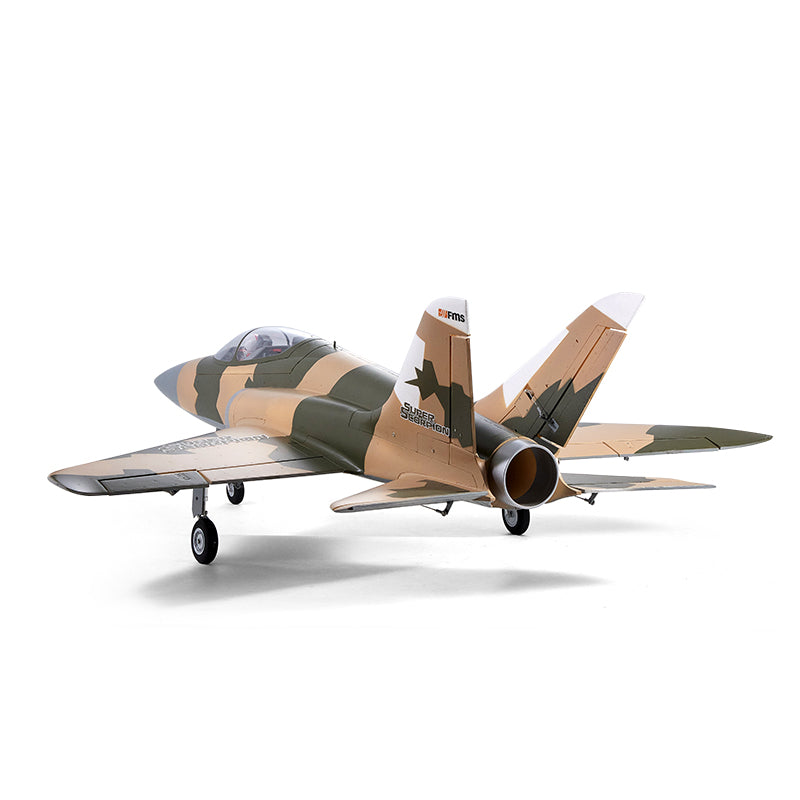

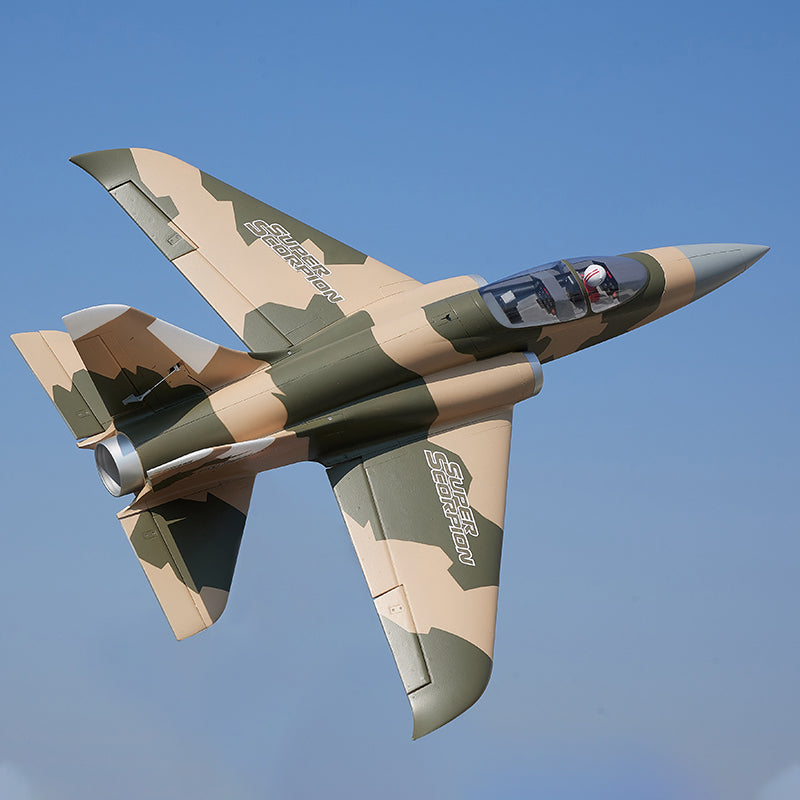

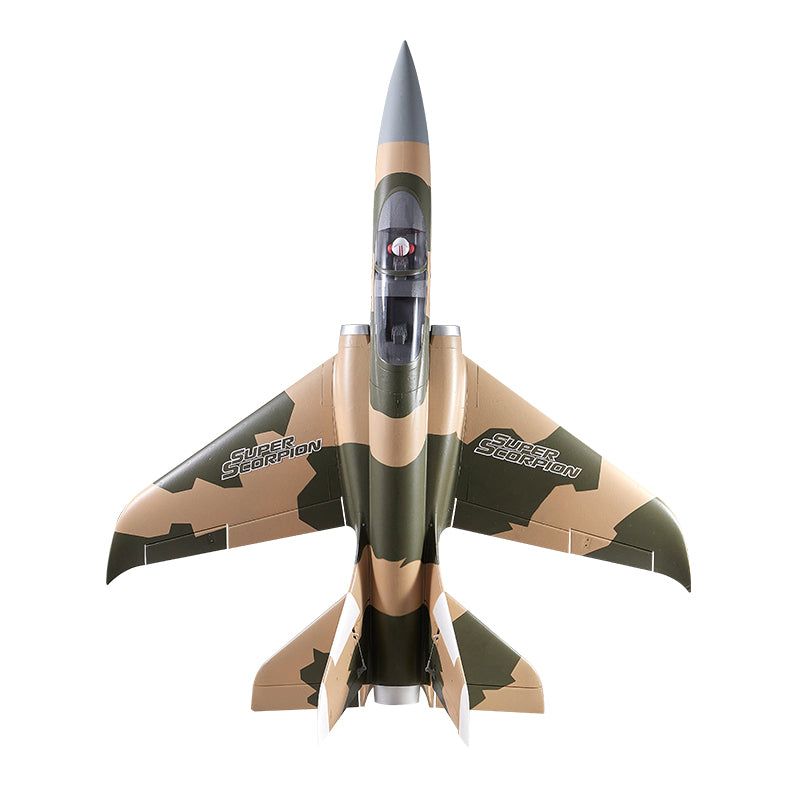

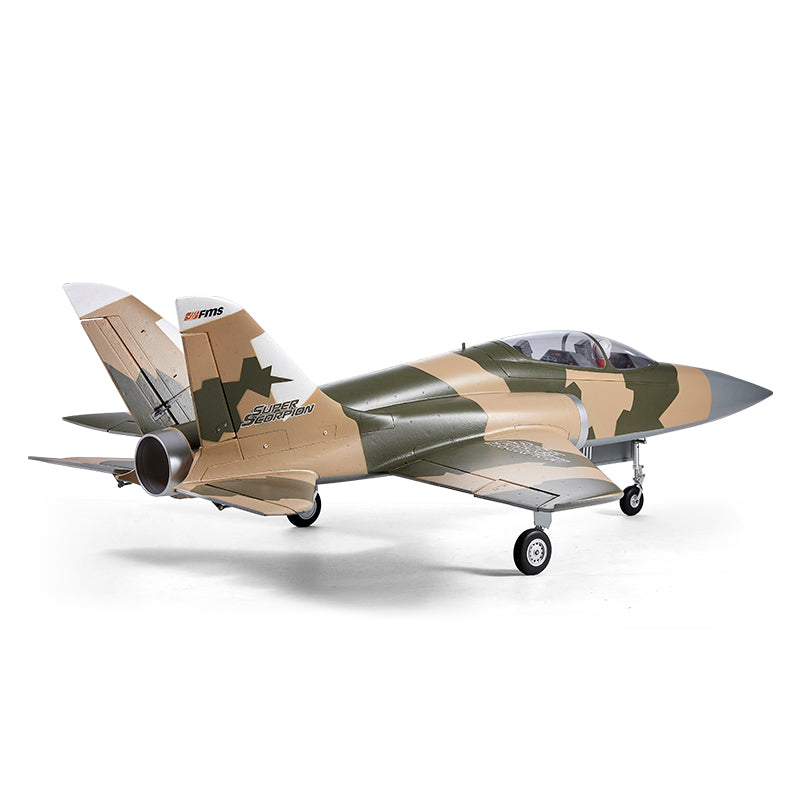

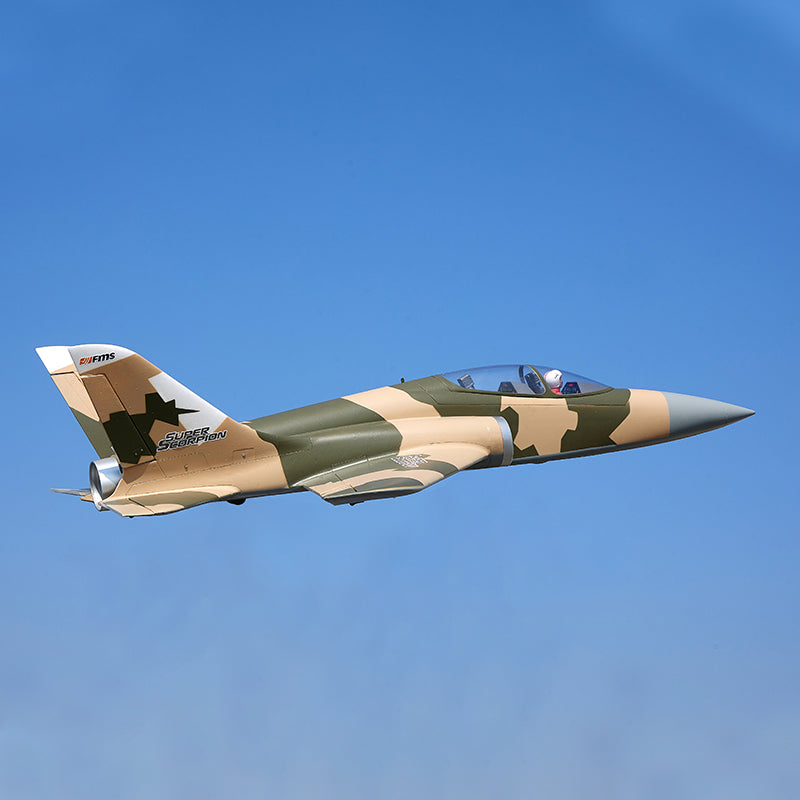

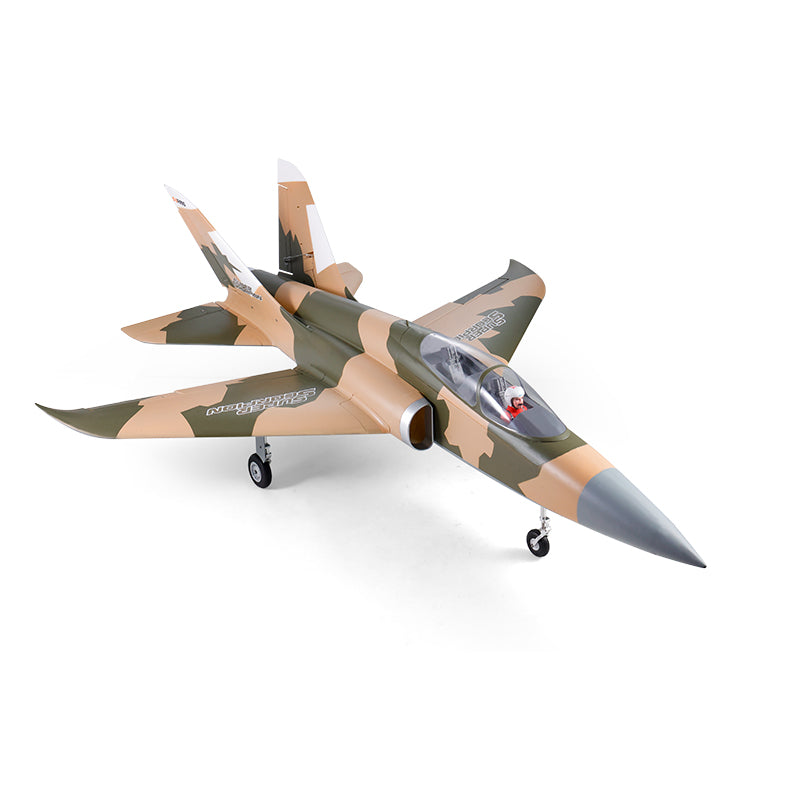

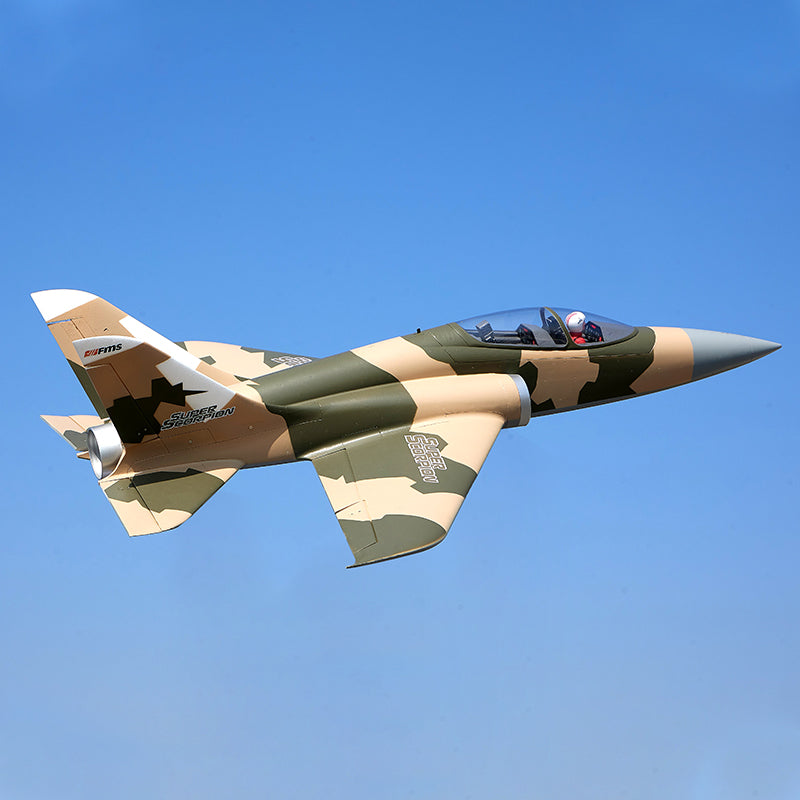

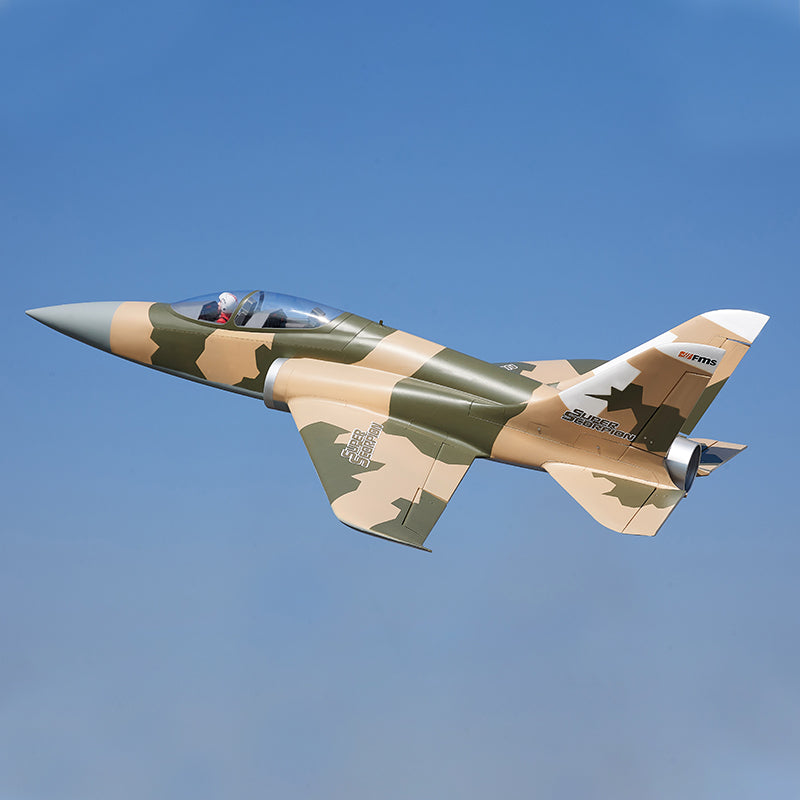

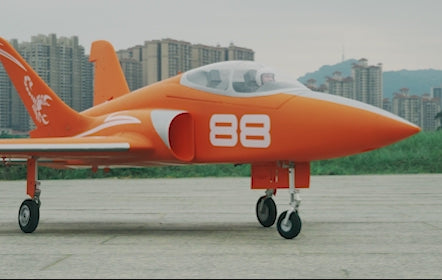

The all-new FMS 90mm EDF Super Scorpion V2 is here. Designed to elevate your flight experience with its upgraded inrunner motor and unique 12-blade fan. You'll feel the power and hear the difference! Choose between striking orange or camouflage paint schemes, both optimized for increased visibility and realism in flight. Available in 6S and 8S versions, this advanced sport jet delivers on every front; speed, stability, and maneuverability. Ready to dominate the skies? The Super Scorpion V2 has arrived!

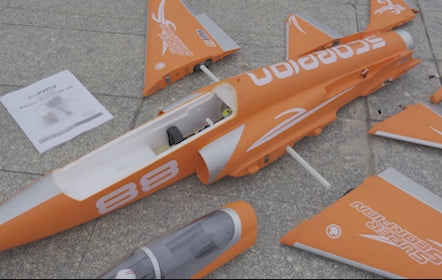

(1) 90mm Super Scorpion V2 EDF PNP
(2) 120A ESC with Reverse Thrust Function (installed)
(3) 6S (3670-KV1950 inrunner motor) or 8S (4075-KV1500 inrunner motor) options (installed)

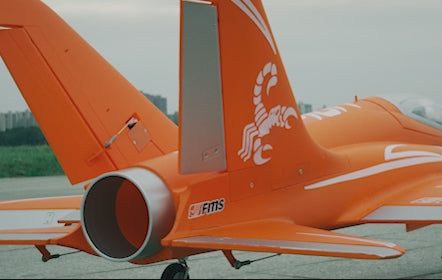

(4) 90mm 12-blade ducted fan (installed)

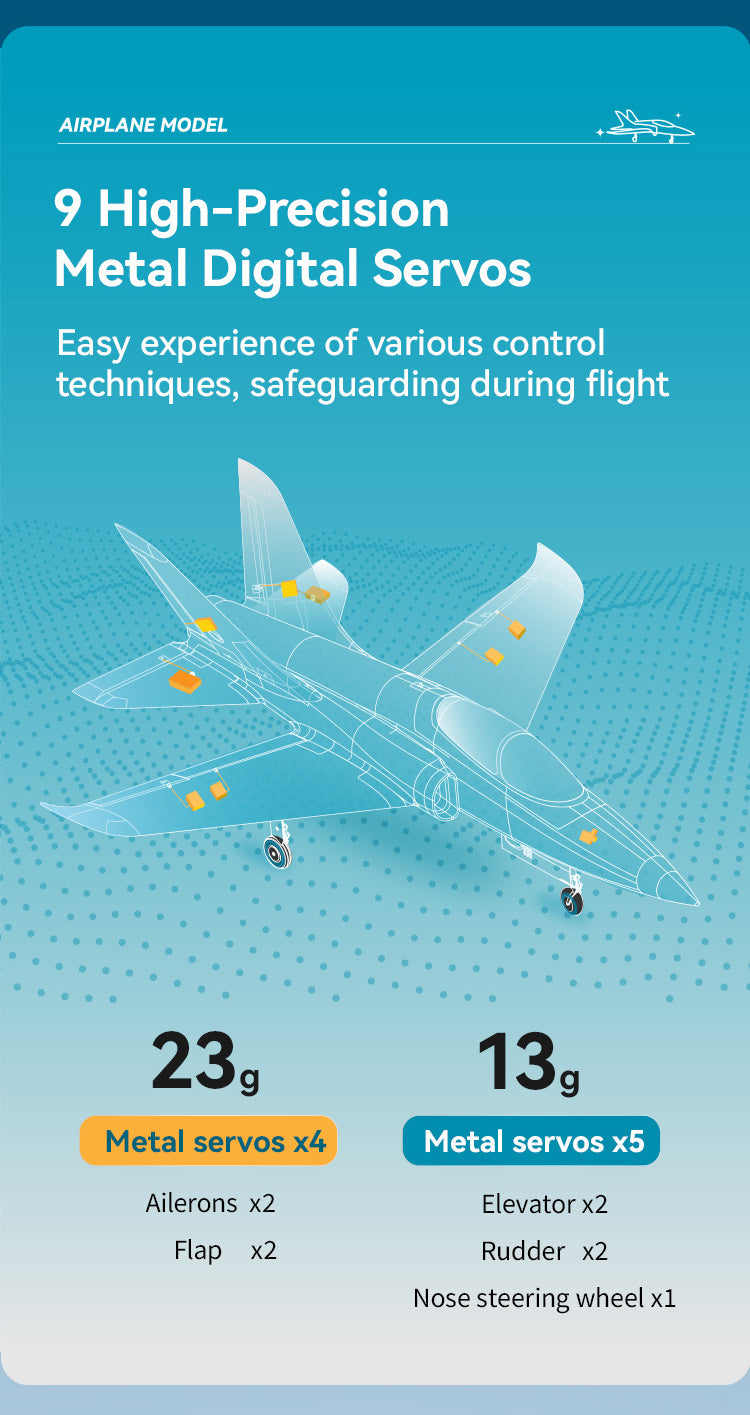

(5) 9 High-precision All-metal Digital Servos (installed)
(6) Product Manual
(1) 6 Channel Transmitter and Receiver
(2) 6S (22.2V 5000mAh-6000mAh 45c with EC5 connector) / 8S (29.6V 5000mAh-5500mAh 45c with EC5 connector)
(3) LiPo Battery Charger
① RTF (Ready to Fly) airplanes come with everything you need to fly in the box. A transmitter, receiver, battery, charger, and all other required electronics are included and pre-installed from the factory.
② PNP (Plug-and-Play) airplanes include the ESC, motor, and servos all pre-installed from the factory. Transmitter, receiver, battery, and charger are not included.
③ EPO foam and cockpits can bubble or deform in high heat. To prevent this, avoid leaving them in direct sunlight when not in use.

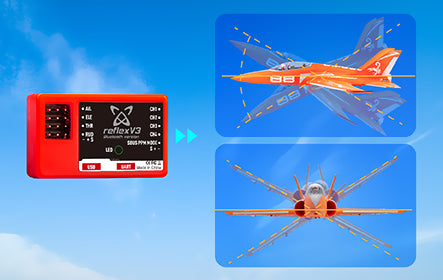

④ Reflex V3 is not included and needs to be purchased separately.
⑤ 6-channel receiver is needed for Ailerons, Elevator, Throttle, Rudder, Landing Gear, and Flaps. Upgrade to 7 or more channels for advanced features like Thrust Reverse and Reflex Control.

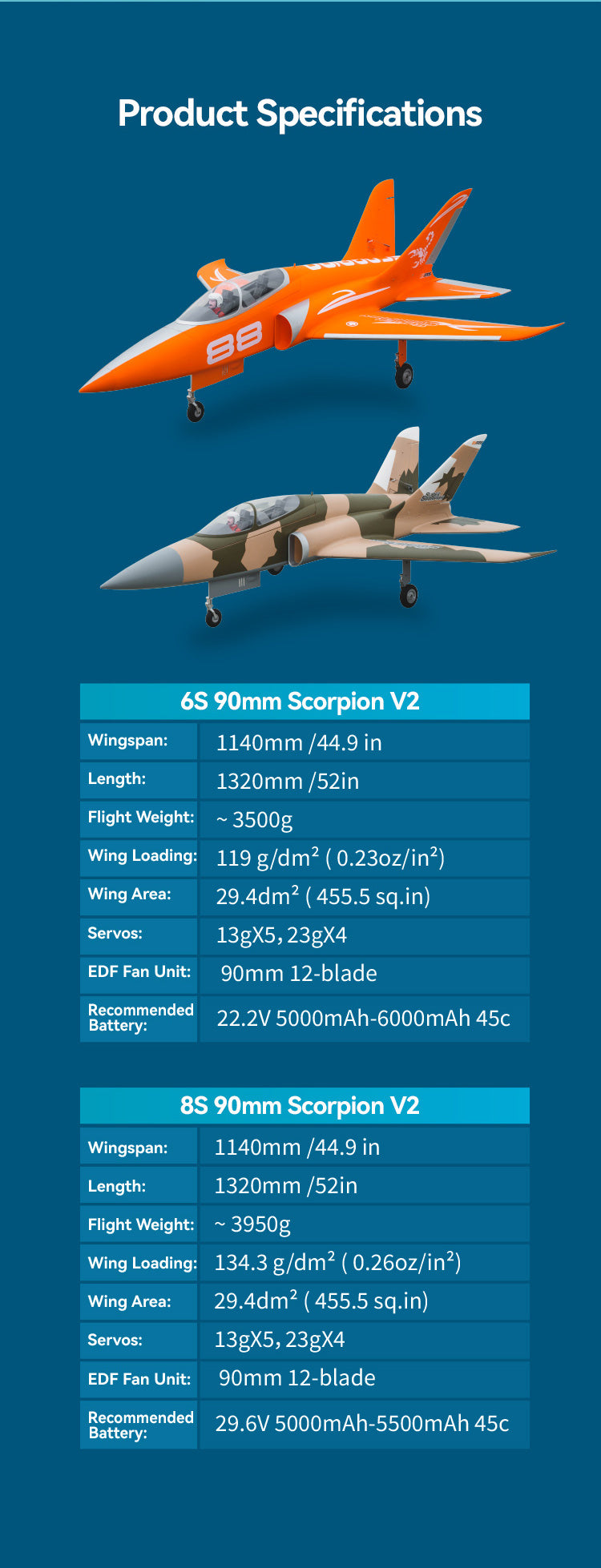

| Model | 6S | 8S |
| Wingspan | 1140mm /44.9 in | 1140mm /44.9 in |
| Overall Length | 1320mm /52in | 1320mm /52in |
| Flying Weight | Around 3500g | Around 3950g |
| Motor Size | 3670-KV1950 | 4075-KV1500 |
| ESC | 120A | 120A |
| Servo | 13gX5pcs | 13gX5pcs |
| Servo | 23gX4pcs | 23gX4pcs |
| Radio | 6CH Channel | 6CH Channel |
| CG (center of gravity) | 150-160mm | 150-160mm |
| Prop Size | 90mm 12-blade ducted fan | 90mm 12-blade ducted fan |

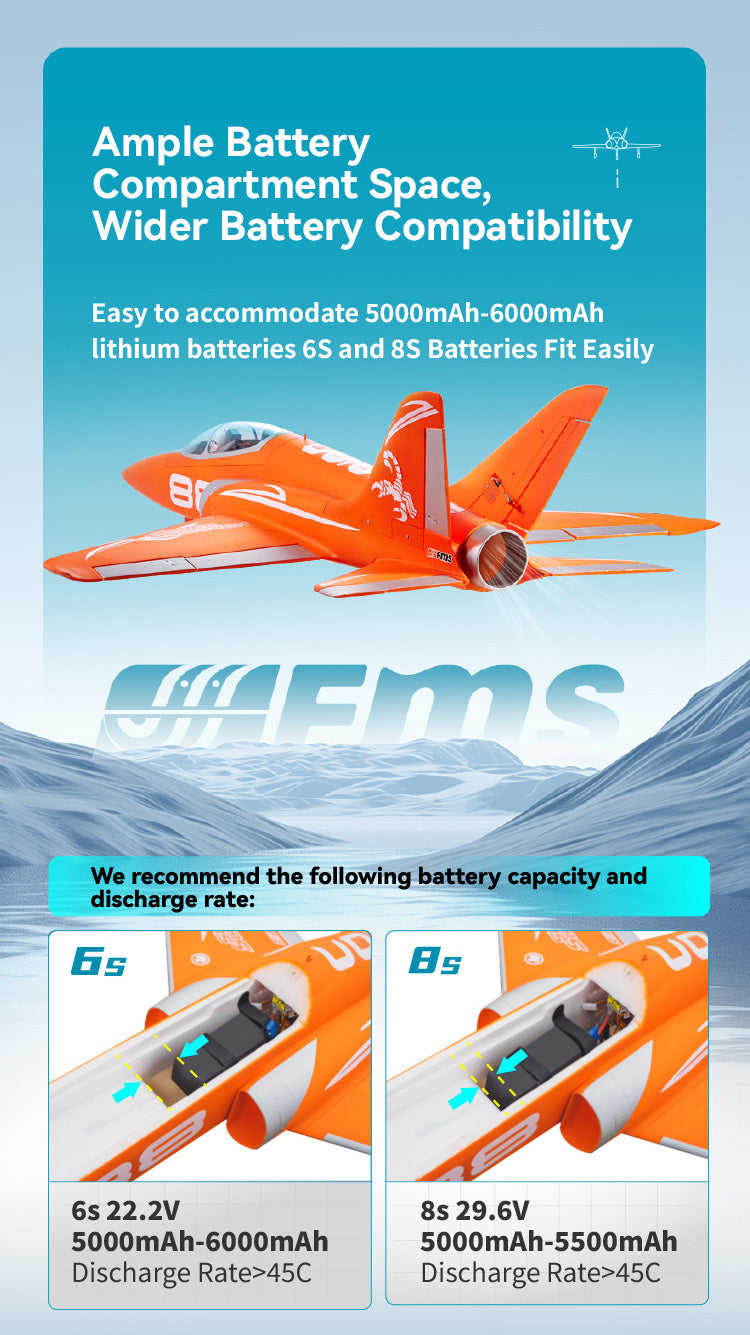

| Recommended Battery | 22.2V 5000mAh-6000mAh 45c with EC5 connector | 29.6V 5000mAh-5500mAh 45c with EC5 connector |
| Aileron | Yes | Yes |
| Rudder | Yes | Yes |
| Flaps | Yes | Yes |
| Retracts | Yes | Yes |
| Approx. Flying Duration | 3 minutes | 3 minutes |
| Minimum Age Recommendation | 14+ | 14+ |
| Experience Level | Intermediate | Intermediate |

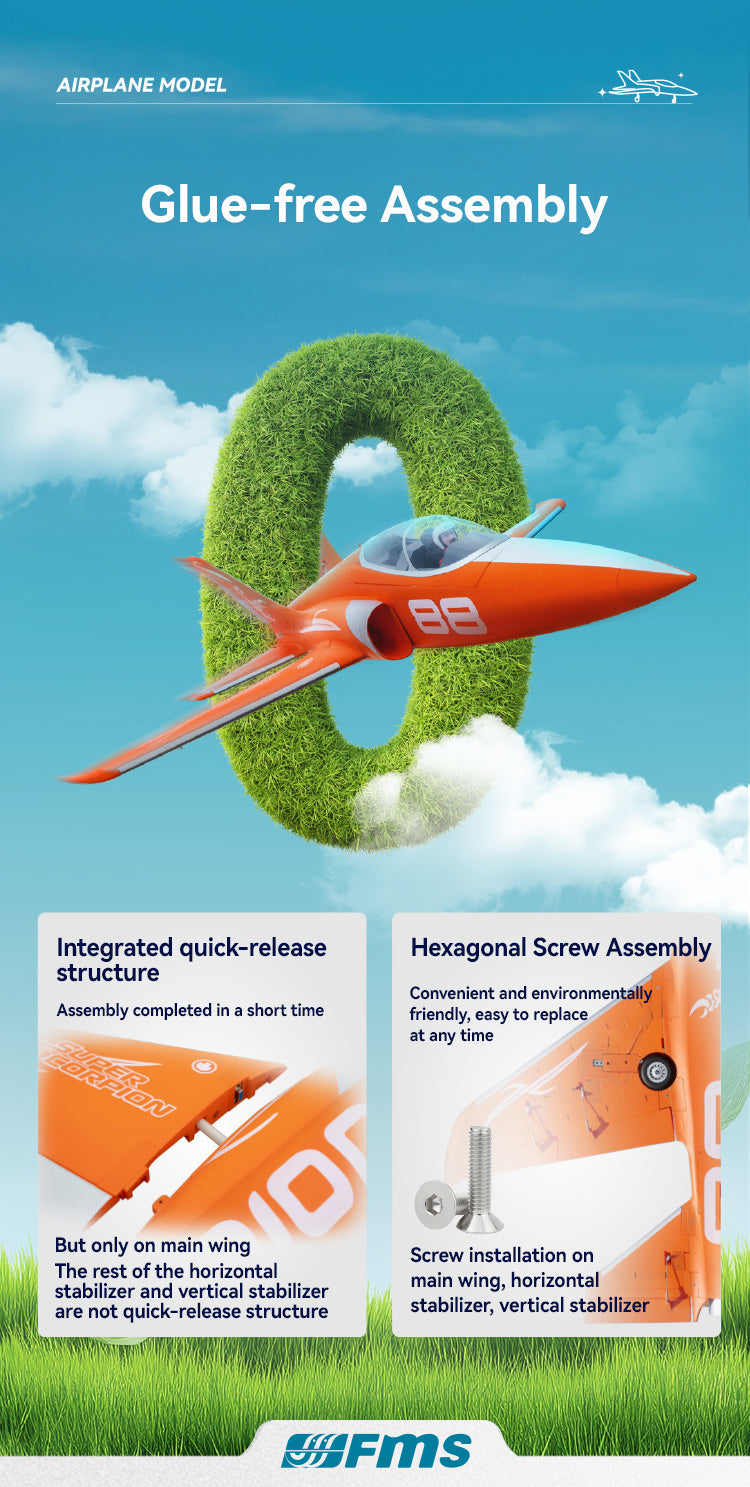

| Assembly Time | 10 minutes | 10 minutes |
| Wing Load | 119 g/dm² (0.23oz/in²) | 134.3 g/dm² (0.26oz/in²) |
| Wing Area | 29.4dm² (455.5 sq.in) | 29.4dm² (455.5 sq.in) |
FMS Reflex V3 Stable Flight Controller
FMS RC Plane Rack

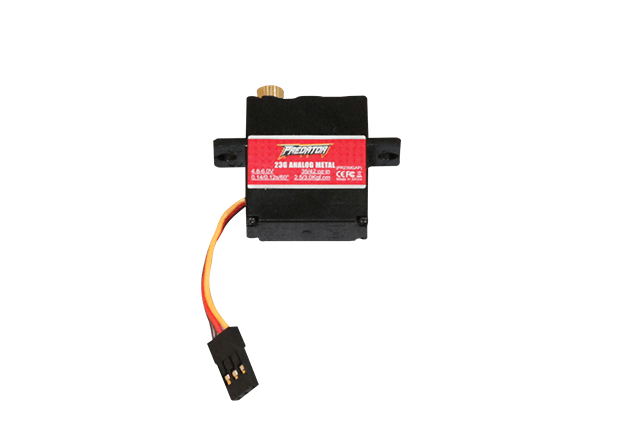

Predator 23g Digital Metal Gear Servo Positive With 330mm Wire

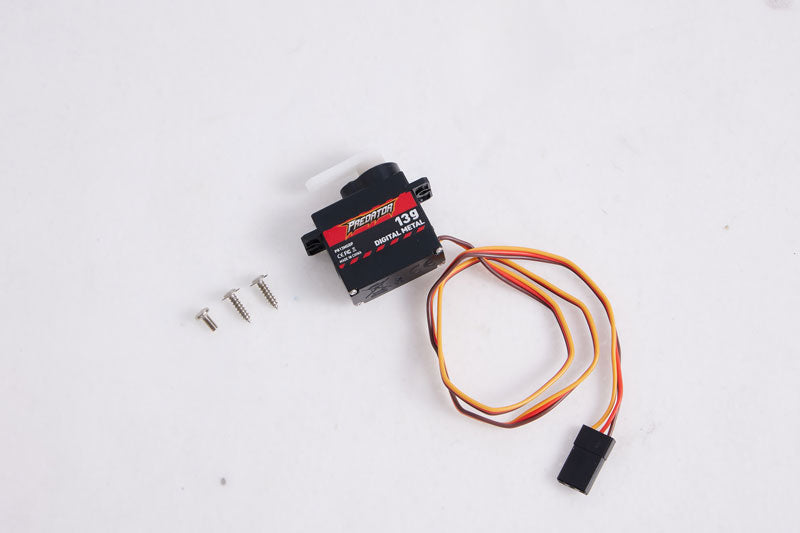

Common Parts - Predator 13g Digital Metal Gear Servo Positive With 460mm Wire
Predator 13g Digital Metal Gear Servo Reverse With 460mm Wire

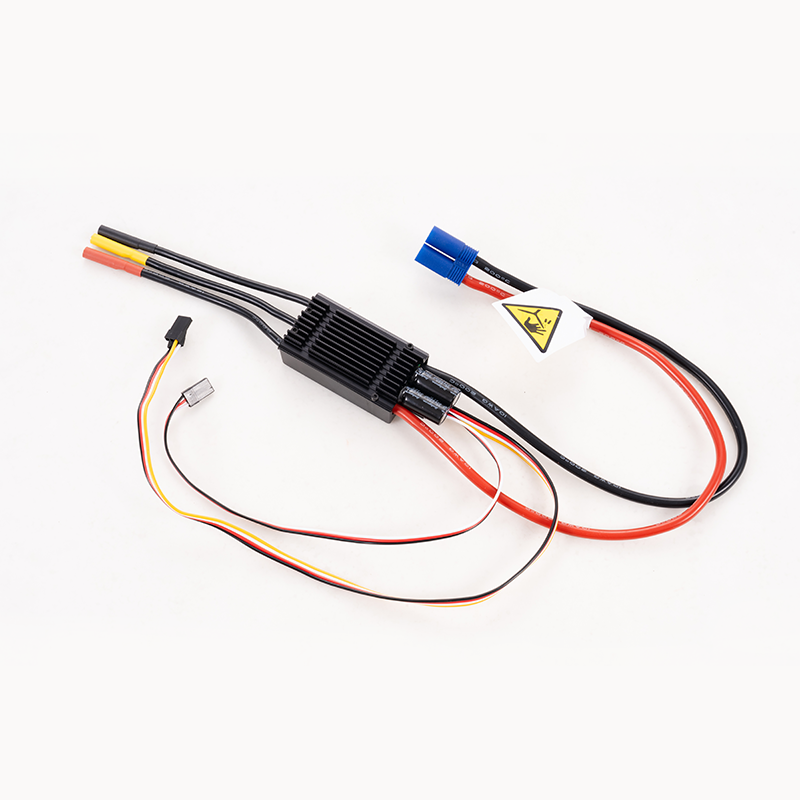

120A ESC EC5 For 90mm Super Scorpion V2, 90mm Avanti
