Top Highlights
- Powerful 3541- 750KV Outrunner motor with Predator 45A ESC provides adequate thrust for any situation.
- CNC metal landing gear structure for less-than-perfect landings.
- 6.25-inch oversized balloon tires for all-terrain operations.
- STOL capable. (Takes off in less than 3m/10ft)
- Pre-installed navigation and landing lights.
- Two-piece wing and horizontal stabilizer for easy transportation.
- High-strength carbon fiber wing spars.
- Integrated servo connectors.
- Screw-together assembly.
- Large battery bay.
- Ball-linked pushrods for increased precision.
- Tough two bladed Nylon propellers.
- Functional flaps.
- Optional floats and stainless-steel wing struts.
Description
The Piper PA-18 Super Cub is a two-seat, single-engine monoplane. It was developed from the Piper PA-11. In close to 40 years of production, over 9,000 were built. Super Cubs are commonly found in roles such as bush flying, banner towing and glider towing.
As a relative of the popular 1400mm J-3 Cub, the 1700mm PA-18 Super Cub retains great flight characteristics while offering increased power and wingspan.
Thanks to its functional flaps, high-lift airfoil, rugged landing gear and oversized balloon tires- the 1700mm PA-18 Super Cub has impressive short take-off and landing (STOL) performance, allowing it to operate from just about any terrain.
Utilizing the latest FMS hardware and design, the 1700mm PA-18 Super Cub has pre-installed ball-link type pushrods, integrated servo connectors in the wing structure and can be assembled very easily using no glue at all.

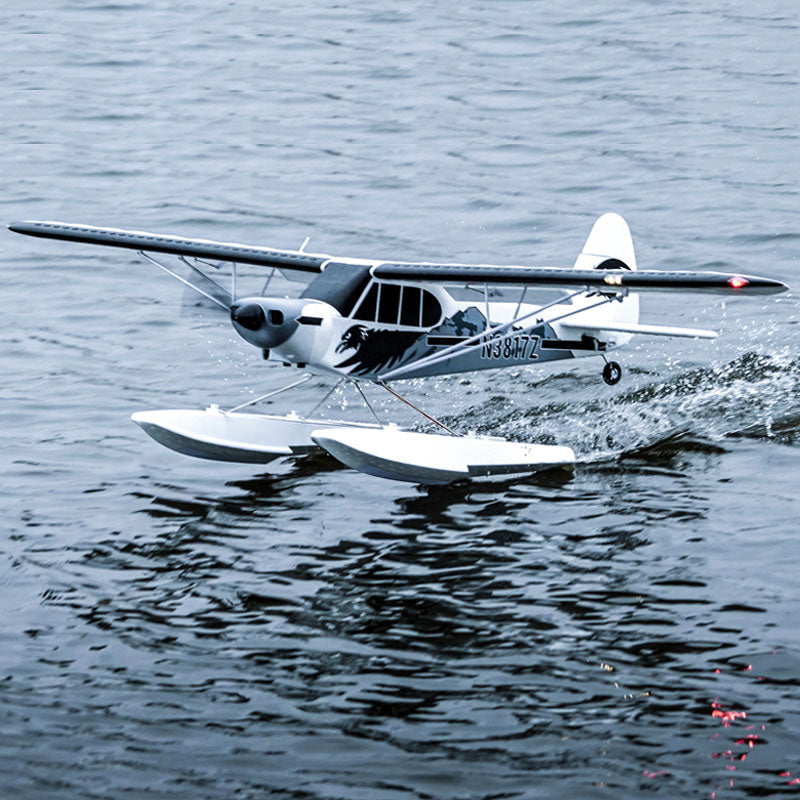

For pilots wanting to get the genuine bush-plane experience, the PA-18 Super Cub can be equipped with floats.
Versatile, fun and exceptionally relaxing to fly- the 1700mm PA-18 Super Cub is a great addition to any fleet!
Notes to buyers:

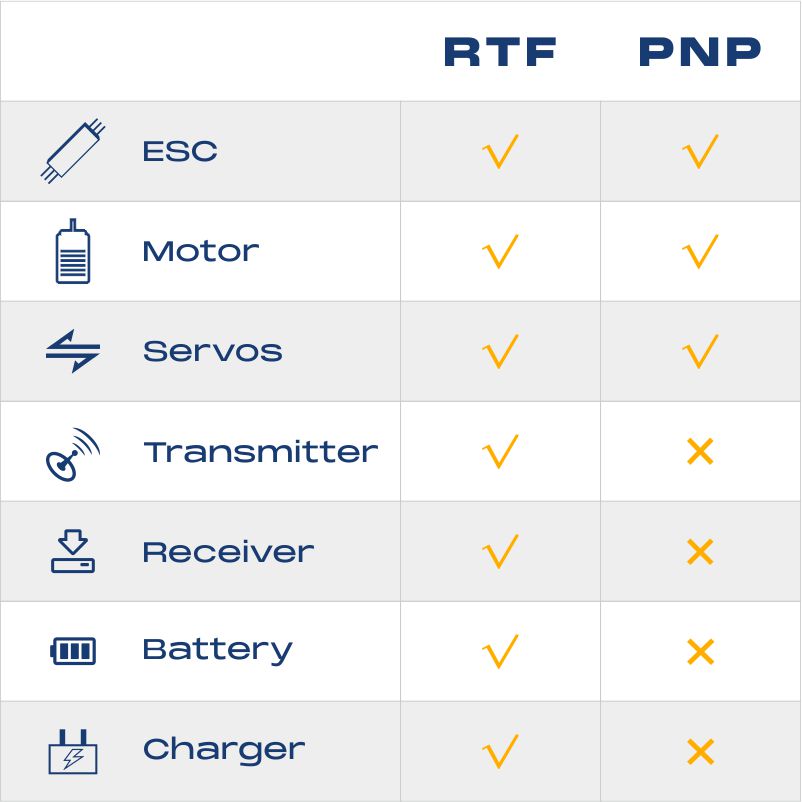

RTF (Ready to Fly) airplanes come with everything you need to fly in the box. A transmitter, receiver, battery, charger, and all other required electronics are included and pre-installed from the factory.
PNP (Plug-and-Play) airplanes include the ESC, motor, and servos all pre-installed from the factory. Transmitter, receiver, battery, and charger are not included.
Specification | |
Wingspan | 1700MM/66.9in |
Overall length | 1136MM/44.7in |
Flying weight | 2100g |
Motor size | 3541-KV750 |
ESC | 45A |
Servo | 17g*6 |
Radio | 6 Channel |
CG (center of gravity) | 80-85mm(From leading edge) |
Prop Size | 12*7.5, 2-blade |
Recommended battery | 14.8V 2200-2600mAh 4s 35C |
Battery Connector | XT60 |
Aileron | Yes |
Elevator | Yes |
Rudder | Yes |
Flaps | Yes |
Retracts | No |
LED | Yes |
Approx. flying duration | 4-5 minutes |
Minimum age recommendation | 14+ |
Experience level | intermediate |
Assembly time | around 40 minutes |
Wing load | 50g/dm²; 0.11oz/in2 |
Wing area | 42dm² ;651sq.in |
Video
More Videos Please Go To Our Youtube Channel: FMS Model



Parts
FMS Reflex V3 Stable Flight Controller

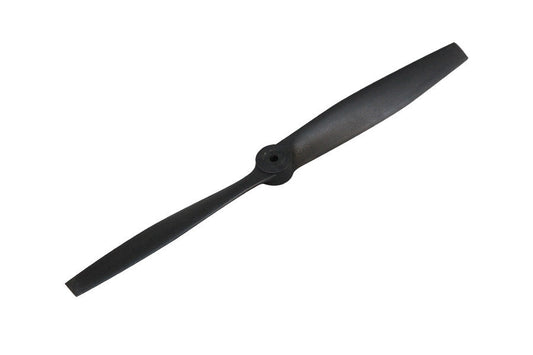

Propeller 12*7.5
Charger With Adapter Wire

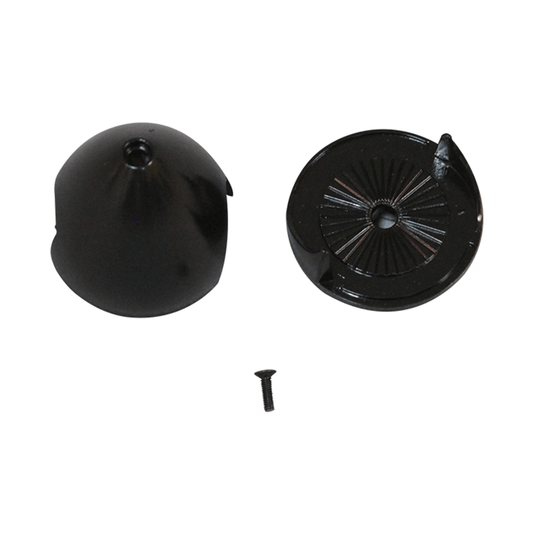

1700mm PA-18 Spinner

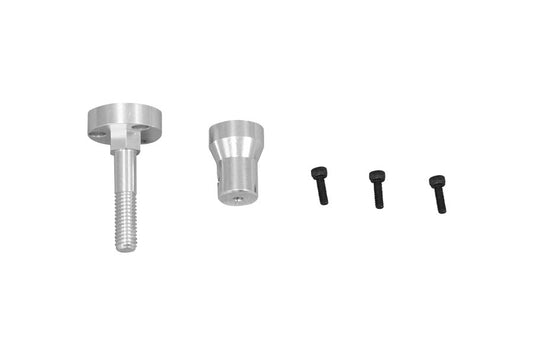

3541 Motor Shaft For 1100mm PC-21, 1700mm PA-18, 1800mm Ranger, 2500mm ASW-17

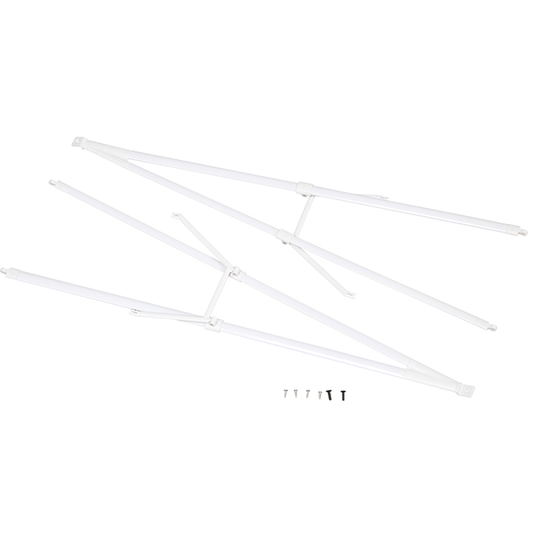

1700mm PA-18 Supporting Strut Set
Manual & Support
Description
The Piper PA-18 Super Cub is a two-seat, single-engine monoplane. It was developed from the Piper PA-11. In close to 40 years of production, over 9,000 were built. Super Cubs are commonly found in roles such as bush flying, banner towing and glider towing.
As a relative of the popular 1400mm J-3 Cub, the 1700mm PA-18 Super Cub retains great flight characteristics while offering increased power and wingspan.
Thanks to its functional flaps, high-lift airfoil, rugged landing gear and oversized balloon tires- the 1700mm PA-18 Super Cub has impressive short take-off and landing (STOL) performance, allowing it to operate from just about any terrain.
Utilizing the latest FMS hardware and design, the 1700mm PA-18 Super Cub has pre-installed ball-link type pushrods, integrated servo connectors in the wing structure and can be assembled very easily using no glue at all.
For pilots wanting to get the genuine bush-plane experience, the PA-18 Super Cub can be equipped with floats.
Versatile, fun and exceptionally relaxing to fly- the 1700mm PA-18 Super Cub is a great addition to any fleet!
Notes to buyers:
RTF (Ready to Fly) airplanes come with everything you need to fly in the box. A transmitter, receiver, battery, charger, and all other required electronics are included and pre-installed from the factory.
PNP (Plug-and-Play) airplanes include the ESC, motor, and servos all pre-installed from the factory. Transmitter, receiver, battery, and charger are not included.
Specification | |
Wingspan | 1700MM/66.9in |
Overall length | 1136MM/44.7in |
Flying weight | 2100g |
Motor size | 3541-KV750 |
ESC | 45A |
Servo | 17g*6 |
Radio | 6 Channel |
CG (center of gravity) | 80-85mm(From leading edge) |
Prop Size | 12*7.5, 2-blade |
Recommended battery | 14.8V 2200-2600mAh 4s 35C |
Battery Connector | XT60 |
Aileron | Yes |
Elevator | Yes |
Rudder | Yes |
Flaps | Yes |
Retracts | No |
LED | Yes |
Approx. flying duration | 4-5 minutes |
Minimum age recommendation | 14+ |
Experience level | intermediate |
Assembly time | around 40 minutes |
Wing load | 50g/dm²; 0.11oz/in2 |
Wing area | 42dm² ;651sq.in |
Video
Parts
FMS Reflex V3 Stable Flight Controller
Propeller 12*7.5
Charger With Adapter Wire
1700mm PA-18 Spinner
3541 Motor Shaft For 1100mm PC-21, 1700mm PA-18, 1800mm Ranger, 2500mm ASW-17
1700mm PA-18 Supporting Strut Set
Manual & Support

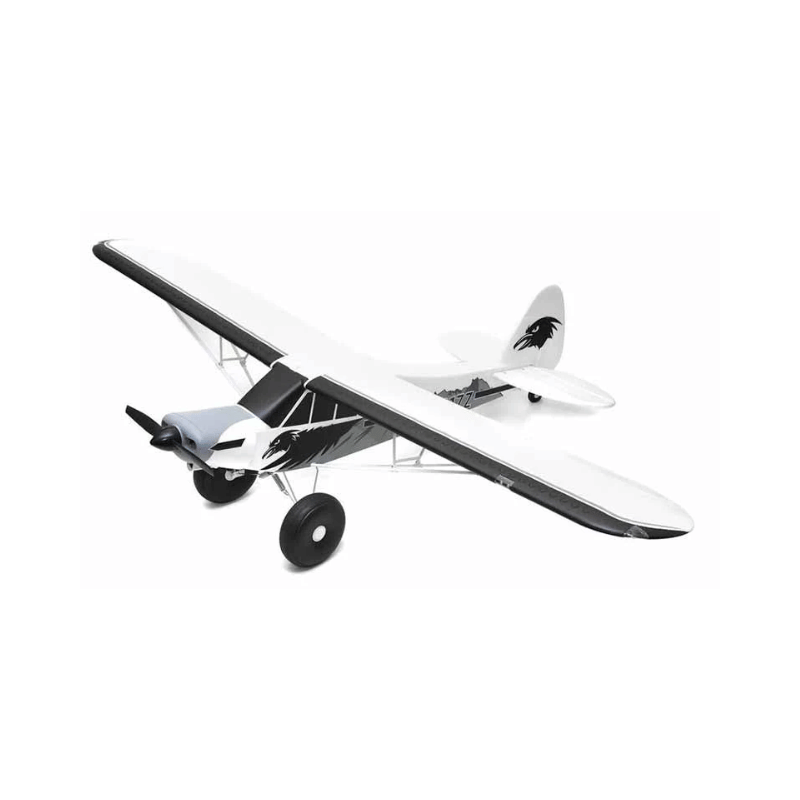

FMS 1700mm PA-18 Super Cub PNP with Reflex V2
FMS 1700mm PA-18 Super Cub PNP with Reflex V2
SKU: FMS110PF-REFV2
Displayed points are based on product value.
FMS VIP Adventure
The points displayed are based on the value of the product. Please refer to the account page to see the actual points after checkout.
Before checking out, please ensure you are logged into your account to avoid losing points.
Points are awarded and available for use once your order has been completely shipped.
To redeem points for coupons, please click on the top right corner of the page:
Sign in > Points & Coupons > Ways to Redeem.

Displayed points may not include bonus points for specific products. If a product has bonus points, the extra points will be shown in your account’s Transaction History. You can check your bonus points in your account by signing in and navigating to:
Sign in >Points & Coupons > Transaction History.
Rewards start at just 300 points. Log into your account now and join the FMS VIP Adventure points journey!
Couldn't load pickup availability
🚚Shipping Fee
• Free Shipping on orders over $99
• $15 Shipping Fee on orders under $99
⏰Shipping Time
• RC Airplanes: 3-7 working days from the US warehouse
• RC Cars: 3-7 working days from the US warehouse; 10-15 days from the Chinese warehouse
• Parts & Accessories: 3-7 working days from the US warehouse; 10-15 days from the Chinese warehouse
👉🏻 Learn more about the Shipping Policy
We offer a 30-day return policy for new and unused products purchased directly from www.fmshobby.com, which can be returned for a refund or credit. This policy covers items that are defective or DOA (Dead On Arrival), as well as those that have shipping damage, loss, or missing parts.
👉🏻 Learn more about the Return Policy
Electronic accessories have a 90-day warranty from the date of delivery. At the same time, the customer is entitled to long-term official technician support.
👉🏻 Learn more about Warranty Policy
Good quality for the price. Surprised it flies so well on 2200 4s.
What I expected from FMS! Dynamic performance
Bought my son one of these from a former team pilot. He was flying it on his sixth flight after soloing on a 1220 Ranger. He put it in a tree a couple of weeks ago. We ordered a new plane. The box was destroyed. FMS sent a replacement and was very helpful.
This is an awesome airplane, once corrections are made that should have been made on the drafting table and production floor! The issues are as follows…
As some have mentioned in their reviews, I do not think the tires can be any harder. Due to their hardness, they lack grip on hard surface runways and do tend to slide a bit in a crosswind and during high speed turns. I am still trying to understand why the designers made this poor choice for tires for this airplane, especially after using much better tires on the 1300mm PA-18. I had to purchase different tires that were softer and more appropriately sized for this airplane. An additional monetary expense that should not be necessary for this correction.
And, right out of the box, the wires inside the battery/receiver/flight stabilizer compartment were an absolute mess. There is no reason for this. If only the designers would have used wiring harnesses that were properly sized for this airplane. I spent too much time on a problem that should have been taking care of before and/or during production. An additional expense of labor that should not be necessary!
FMS engineers need to address these issues and implement changes into the design, as there is no reason for producing a product with these design flaws.
Once these modifications were completed, the airplane has been a true joy and I highly recommend it. But, if you purchase the FMS PA-18 1700mm Super Cub for your ‘hangar’, expect to have to make modifications for these unprofessional and unnecessary issues right out of the box, if you desire a stellar airplane!
If not for the aforementioned design issues, I would have gladly given this airplane 5+ stars!
