An In-Depth Guide to RC Plane Components: Servos and Electronic Speed Controllers (ESCs)

Two main parts are crucial in the fascinating world of remote-controlled (RC) planes to guarantee flawless and fun flights: servo motors and electronic speed controllers (ESCs). These technologies operate behind the scenes to allow you control over the speed and direction of your plane. Knowing servos and ESCs is essential whether your interests are experienced and you want to maximize your setup or you are a novice wondering about how these components work. This guide will lead you through the functions of every component and their interactions to enable your RC plane to soar effortlessly beyond the heavens.

Understand Servo Motors in RC Planes

Why Are Servo Motors Integral to RC Plane Control?

Servo motors are crucial components in RC planes, acting like the muscles of the aircraft. They translate signals from your remote control into physical movements, allowing you to adjust various parts of the plane with precision. Without servos, you wouldn’t be able to control the direction or stability of your flight effectively. These tiny powerhouses help make flying an RC plane a dynamic and interactive experience, giving you the ability to perform complex maneuvers with ease.

What Are the Key Functions of Servo Motors?

1. Manage Control Surfaces

• Ailerons: Found on the wings, they control plane roll. Servos let the plane tilt left or right by varying these surfaces up or down, therefore allowing smooth lateral movements.
• Elevators: Found in the tail, elevators regulate the plane's pitch. Changing elevators either upward or downward controls vertical movement, thereby enabling the plane to ascend or fall.
• Rudder: Driven on the vertical stabilizer at the tail, the rudder manages yaw. Moving this surface left or right helps the plane to perform directional turns or changes.

2. Regulate Engine Thrust

More sophisticated RC plane models employ servos to control engine thrust and change the throttle. Controlling the speed and acceleration of the plane depends especially on this ability to guarantee that the aircraft keeps the intended pace during flight.

3. Operate Landing Gear

Some RC planes have retractblae landing gear systems, in which case servos are essential for functioning. As necessary, they extend and retract the landing gear, hence improving the model's aerodynamics and realism.

4. Control Other Components

Beyond the primary flight surfaces, servos also control other movable parts of the plane, such as:

• Flaps: These are used to increase lift, primarily during takeoff and landing, making it easier to manage the plane at slower speeds.
• Leading-edge Slats: These components enhance lift during landing, improving stability and control.
• Airbrakes: Used to reduce speed or control descent rates, airbrakes can be crucial for precise landings or rapid slowdowns.

How Do Servos Enhance Flight Performance?

All things considered, perfect control and improved flight performance in RC air planes depend on servo motors. They manage everything from simple directional changes to advanced operations, including retractable landing gear and throttle control. Pilots who know how servos operate and their several uses can maximize control and have a more responsive flying experience.

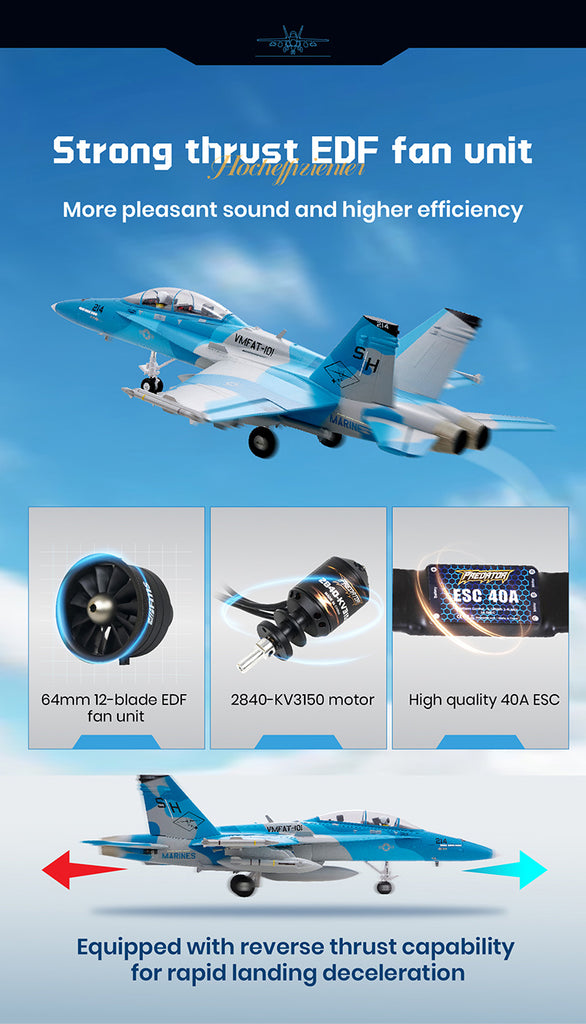

What Are Electronic Speed Controllers (ESCs)

Core Functionality

Essential parts in RC planes, electronic speed controllers (ESCs) govern motor speed and direction. Between the remote control system and the motor, they serve as middlemen, turning signals into electrical power that controls motor speed. Pilots can so instantly change the throttle to provide seamless acceleration and slowdown during flight.

What Are the Specific Roles of ESCs?

1. Control Motor Speed

Translation of commands from your remote control into exact motor actions depends critically on ESCs. They modulate the speed of the motor using the input signal. Either non-linear controls, which allow for more subtle speed modifications depending on sophisticated algorithms, or linear controls, which offer a direct link between signal inputs and motor output.

2. Adjust Motor Direction

An essential feature of many ESCs is their ability to reverse the motor’s direction. This capability is particularly useful in certain types of model aircraft or when quick directional changes are necessary, such as in quadcopters or advanced aerobatic models.

3. Provide Protection

ESCs come equipped with several protection features to ensure both the motor and battery are safeguarded during operation:

• Overheat Protection: Prevents the motor from overheating by reducing power if temperatures rise too high.
• Overcurrent Protection: Automatically limits the current to prevent damage from excessive load.
• Low-Voltage Cutoff: Protects the battery from discharging below safe levels, extending its lifespan.

4. Start-up and Braking Systems in ESCs

ESCs often include soft start mechanisms that gradually increase power to the motor, minimizing the risk of sudden shocks to the system. They also offer braking features that can quickly stop the motor, aiding in precise control and maneuverability during critical phases of flight like landing.

5. Ensure Voltage Matching

To ensure optimal performance, ESCs manage the voltage output, matching it precisely with the motor's requirements. This compatibility is essential for maintaining stable operations and preventing damage to the motor or battery due to mismatched power levels.

How Do ESCs Enhance Operational Stability and Reliability?

In summary, ESCs are fundamental to maintaining the overall stability and reliability of RC planes. By accurately controlling motor speed and direction, providing essential protective measures, and ensuring proper voltage matching, ESCs help deliver a smooth and responsive flying experience. Understanding these functions allows hobbyists and professionals alike to optimize their setups for better performance and longer-lasting equipment.

Compare and Integrate Servo Motors and ESCs

Provide Comprehensive Control

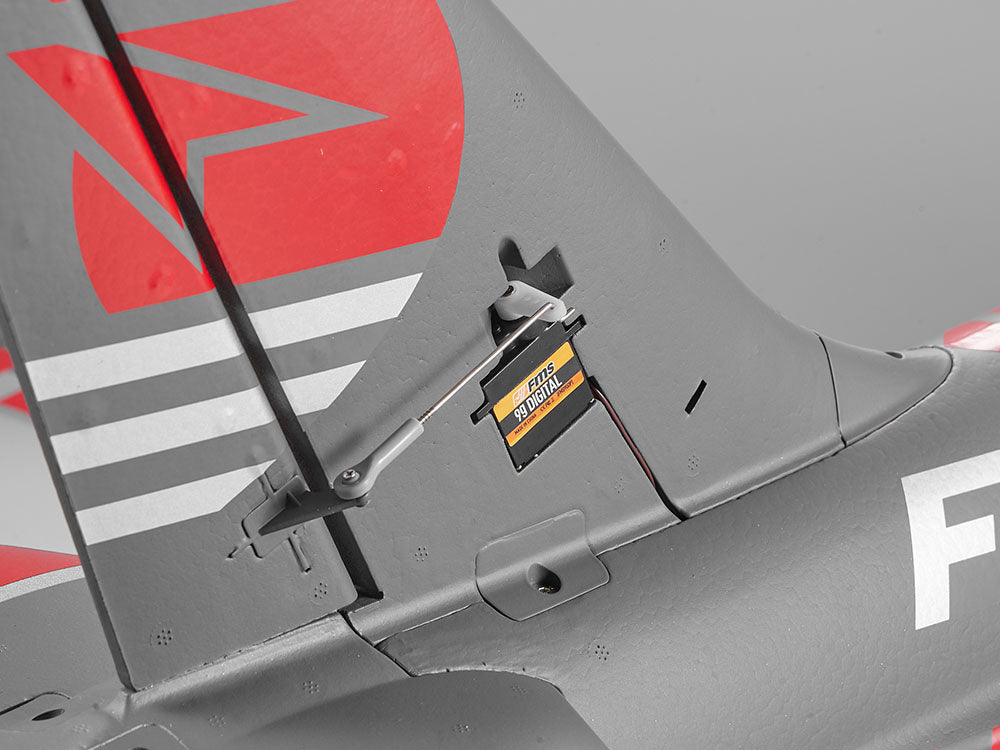

Servo motors and electronic speed controllers (ESCs) are like the heart and brain of an RC plane, working in harmony to give you full control over the aircraft. While servos handle the physical movement of the plane's control surfaces—such as ailerons, elevators, and rudders—ESCs manage the motor’s speed and direction, which affects how fast the plane moves through the air.

When these two components work together seamlessly, they allow for precise maneuvering and responsive handling. For instance, as you increase throttle via the ESC to gain speed or climb, the servos adjust the elevators to change the pitch, ailerons to initiate a roll, or the rudder to pivot the plane. This integration is crucial for executing complex aerobatics and smooth flight paths, making your flying experience more controlled and enjoyable.

Tips for Selecting the Right Components Based on Model Requirements and Intended Use

Choosing the appropriate servos and ESCs for your RC plane depends on several factors:

Model Size and Weight:

• Larger planes require more powerful servos with higher torque ratings to move heavier control surfaces effectively.
• Similarly, more substantial models may need high-capacity ESCs that can handle greater currents to drive larger motors.

Intended Use:

• If you’re into aerobatic flying, opt for servos with high speed and precision to perform quick, intricate maneuvers.
• For gliders or slower-flying planes focused on endurance, efficiency in ESCs is more critical than raw power output.

Power Source Compatibility:

• Ensure that the ESC matches your battery type (LiPo, NiMH, etc.) and voltage to prevent damage or inefficiency.
• Check that the ESC's current rating suits the power draw of your motor setup.

Control Precision:

Digital servos offer finer control and faster response times compared to analog versions, ideal for high-performance applications.

Budget Considerations:

Balance your budget with performance needs. Generally, investing in quality components provides better reliability and longevity.

Master RC Plane Control

Understanding and integrating servo motors and ESCs are essential for achieving precise control and optimal performance in RC planes. By choosing the right components and harmonizing their functions, hobbyists and professionals can enhance their flying experiences, ensuring every flight is smooth and well-controlled.

FAQ

How do I choose the right servo for my RC plane?

Consider the plane's size, weight, and intended use; prioritize torque and speed ratings accordingly.

What should I do if my ESC overheats?

Ensure adequate cooling, check for correct motor compatibility, and avoid exceeding the ESC's current limits.

Why is my servo jittery or unresponsive?

Check power supply stability, ensure connections are secure, and consider potential radio interference issues.

Can I mix different brands of servos and ESCs?

Yes, but ensure compatibility in terms of voltage and signal standards for seamless operation.
