VIP Adventurer
FMS 1:24 FCX24M Land Rover Camel Trophy Edition RTR
Upgrade Parts - FCX24M Blister Seat Compartment with Figure A
Description
Upgrade Parts - FCX24M Blister Seat Compartment with Figure B
Description

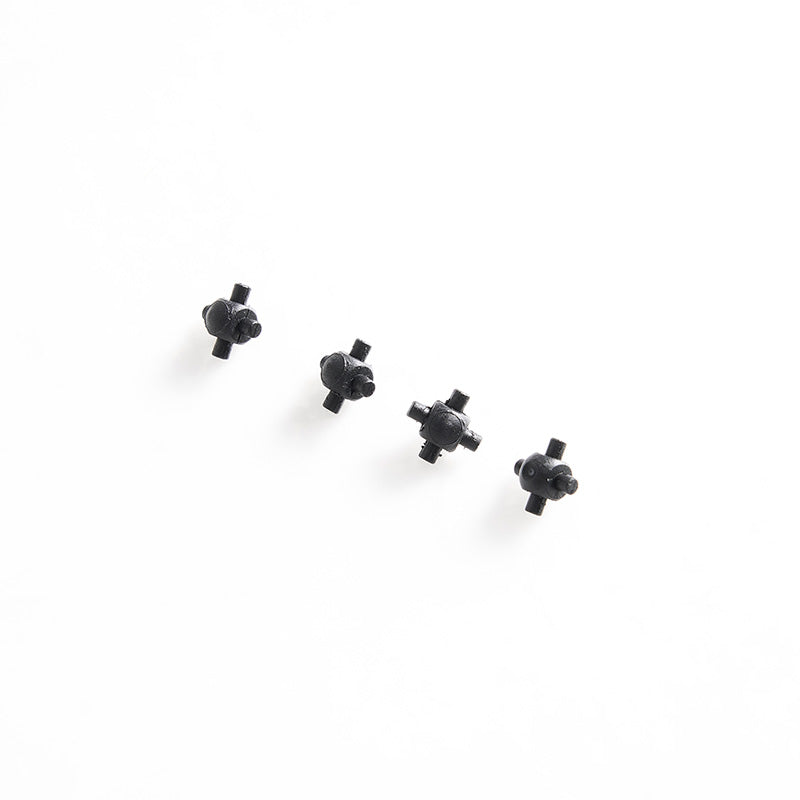

Upgrade Parts - FCX24M Differential Set

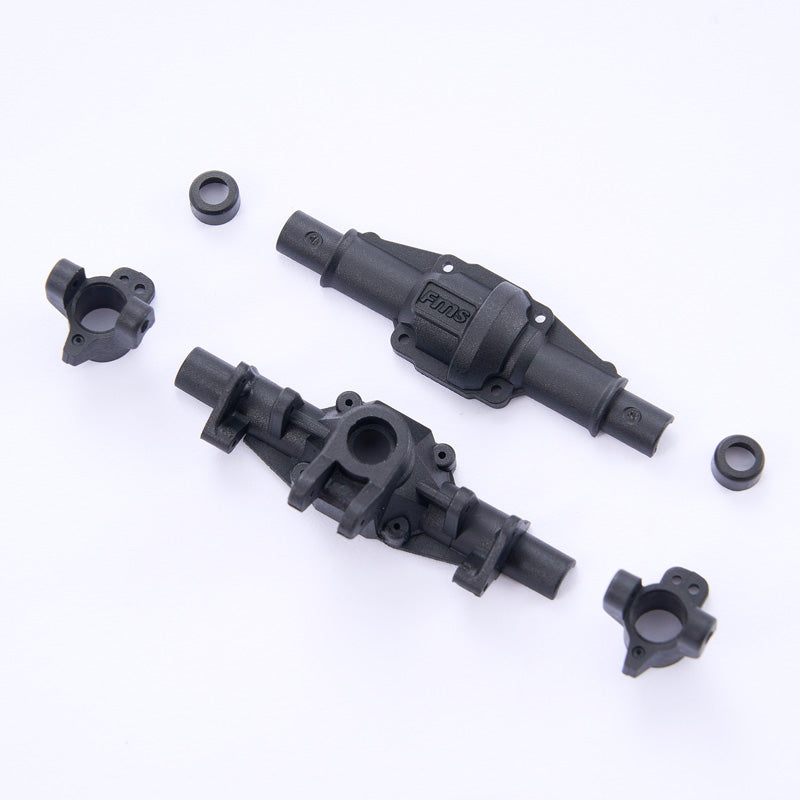

FCX24M Front Axle Plastic Parts V2
Description
Front Axle Assembly: C3416, Must paired with C3413V2

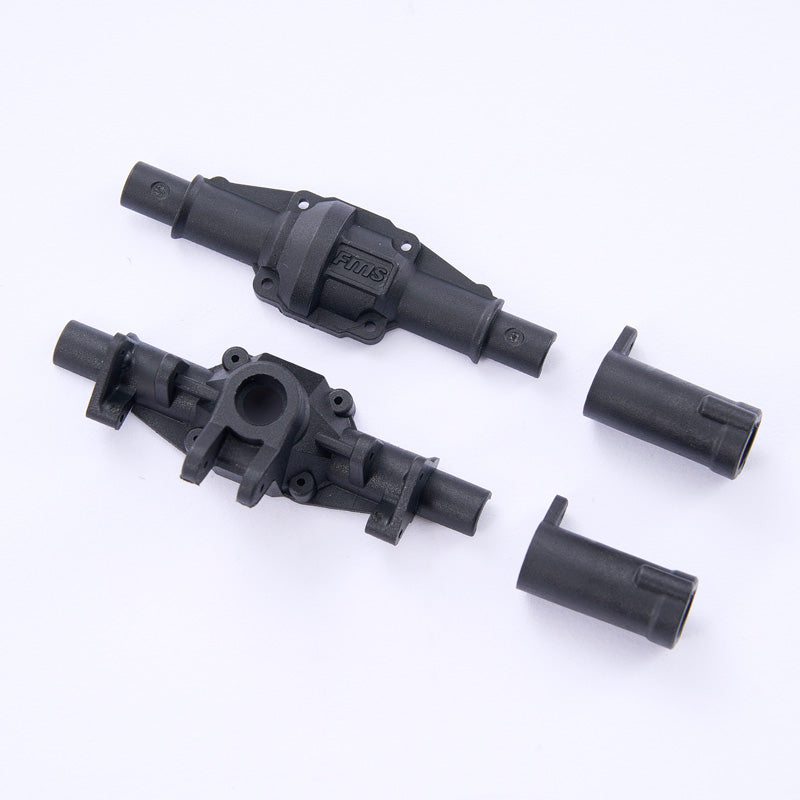

FCX24M Rear Axle Plastic Parts V2

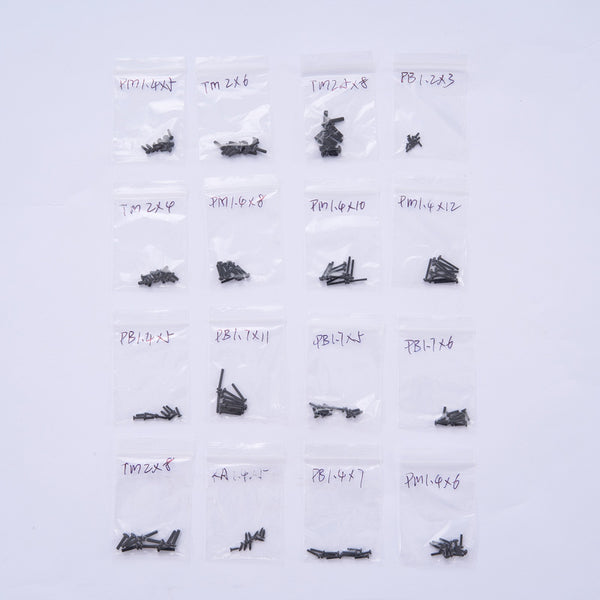

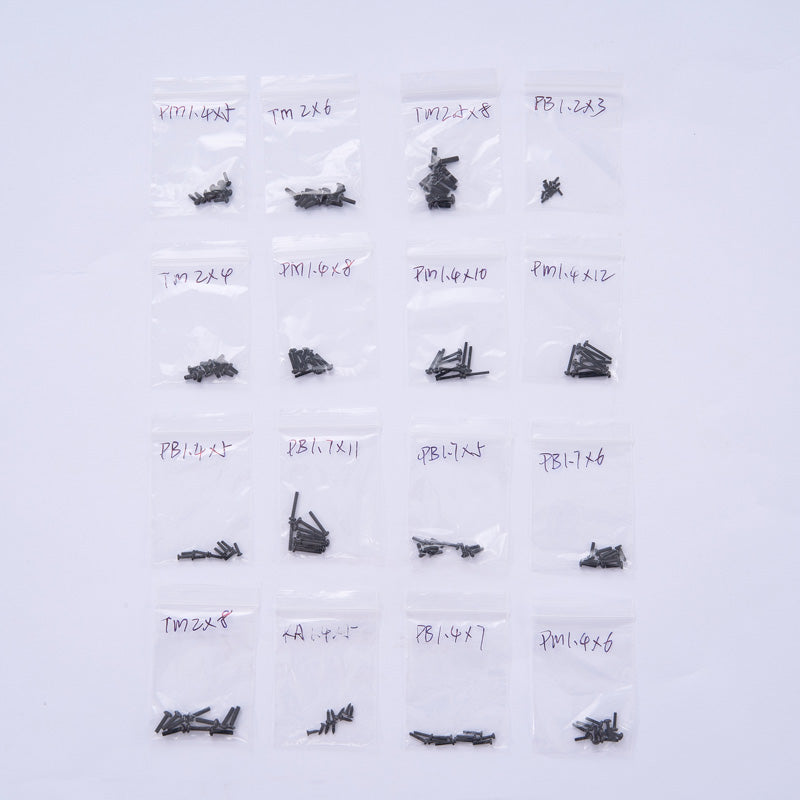

FCX24M Screw Set

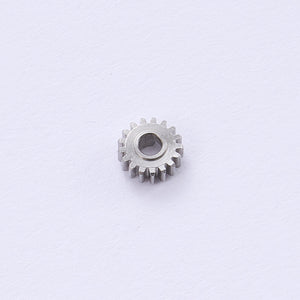

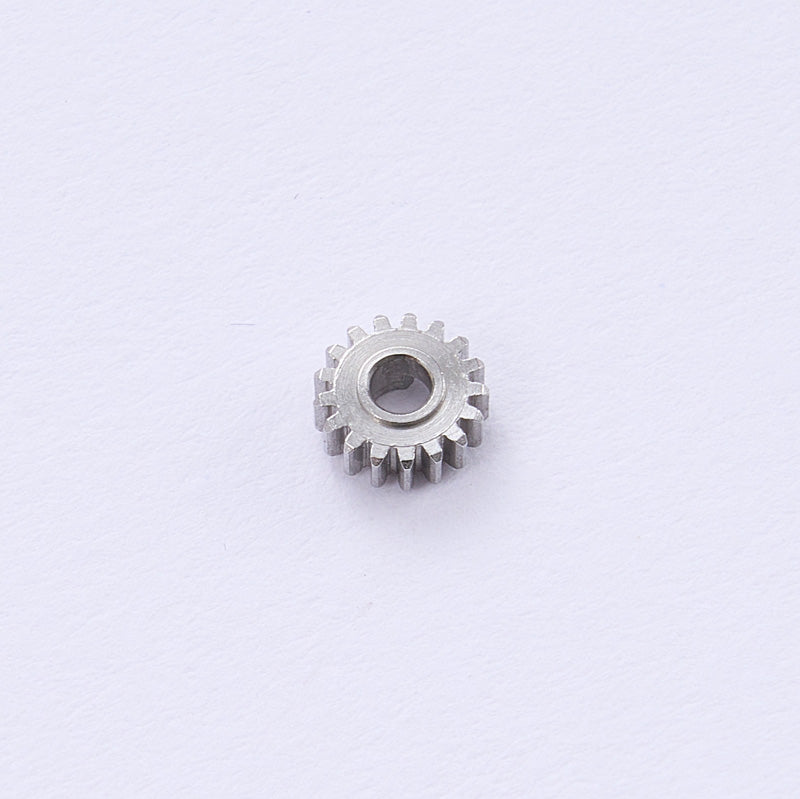

FCX24M Transmission Gear 17T (Steel)

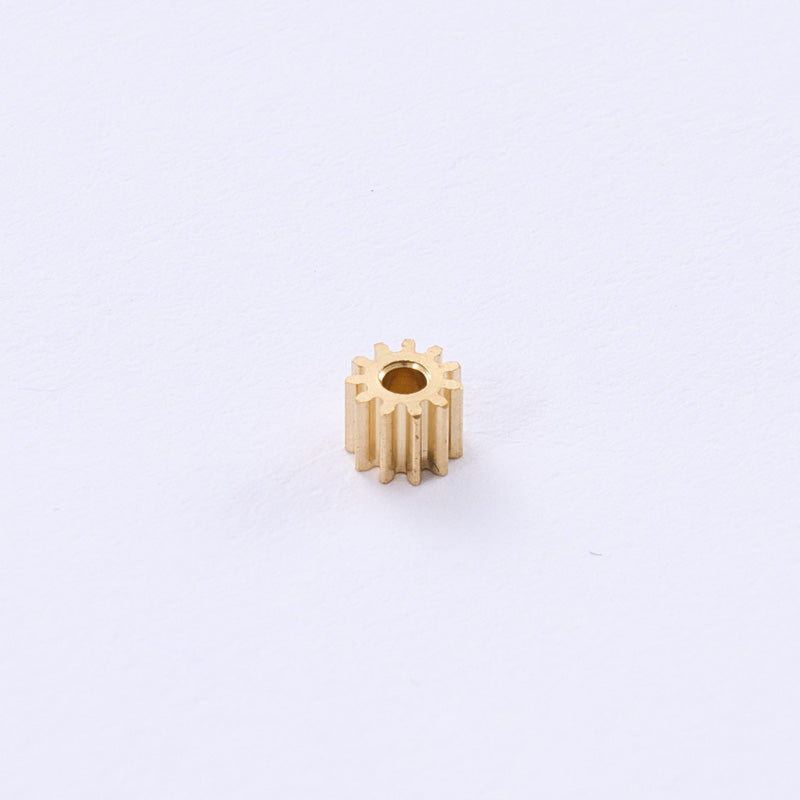

FCX24M 11T Pinion Gear Brass

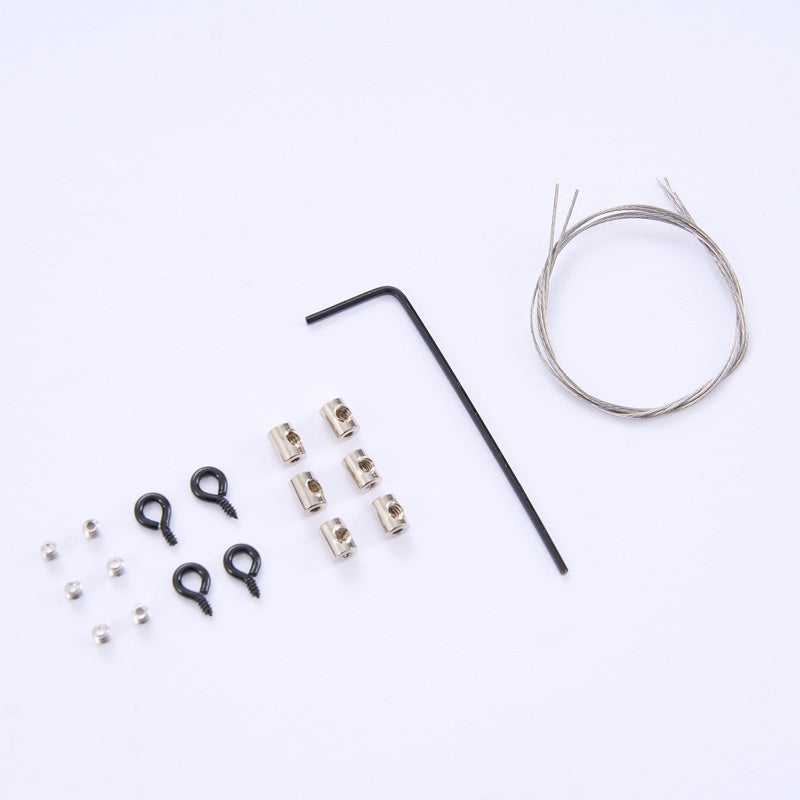

FCX24M Steel Wire Lock Set

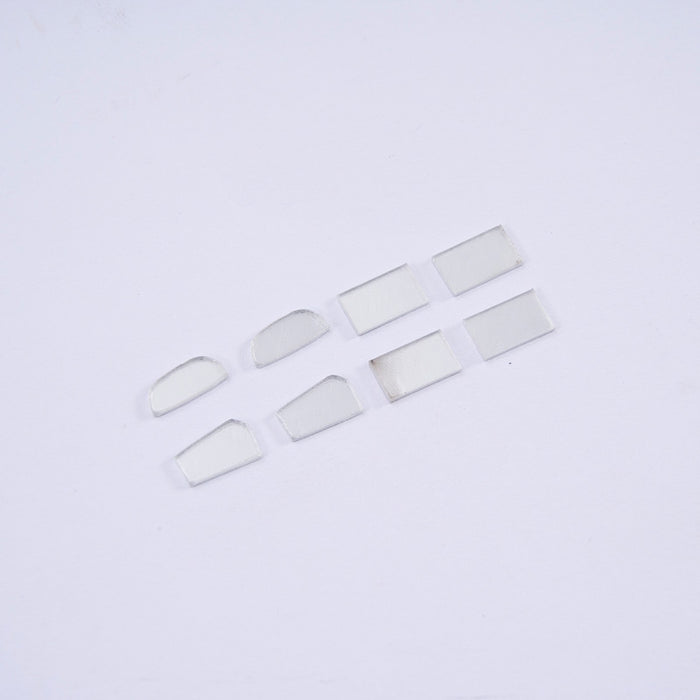

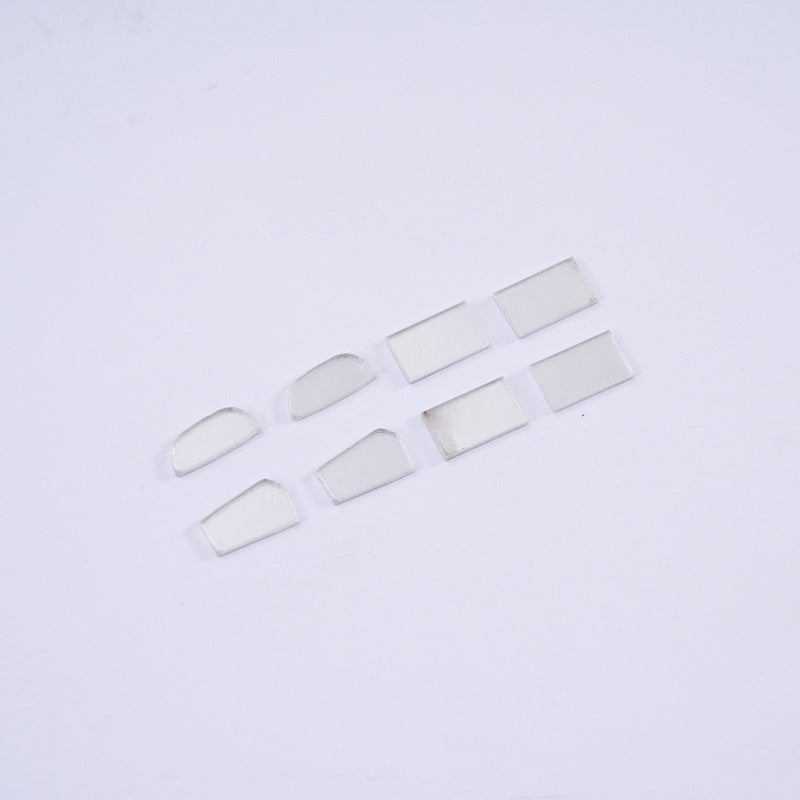

FCX24M Mirror

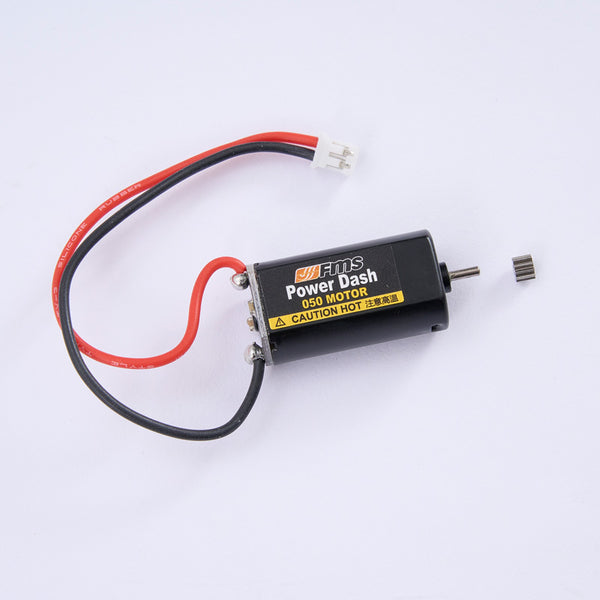

FCX24M 050 Motor Set V2
Steel Pin 1.2*6.8 For FCX24, FCX18, 1:24, 1:18
Description
For FCX24, FCX18, 1:24, 1:18 RC Car.
Used for Portal Pin.
1:18/1:24 LUGGAGE NET
Description
For 1:18 LC80 LAND CRUISER, 1:18 FIRE HORSE, 1:18 FJ CRUISER, FCX24M Range Rover/Discovery/Defender 90/Defender 110
FMS 5.8G Analog FPV Set
Description
FMS 5.8GHz Analog FPV System is a simple and user-friendly entry-level FPV setup.
What's in the box:
- 1 x 5.8GHz 4.3-inch FPV Monitor + Antenna
- 1 x 5.8GHz All-In-One Analog Camera
- 1 x Camera Housing With Mounting Base
- 1 x Monitor Mount
- 1 x 3.7V Battery (For Camera Use)
- 1 x 3.7V Battery Charger
- 1 x Hook-and-Loop Tape
- 1 x Adjustable Zip Ties
- 1 x Manual
How to Set Up:
1. Securely mount the camera on your RC vehicle (drone/car/boat) using the included hook-and-loop straps or zip ties.
2. Install the antenna before powering on the monitor, then use the auto-scan function to find the frequency.
3. Begin your FPV adventure!
Q&A:
1. Why doesn??£¤t the image look as clear as I expected?
Analog video transmission has lower resolution compared to HD systems, resulting in less sharpness. However, it offers low latency, making it great for close-range FPV (within 100 meters).
2. Why is the screen flickering and showing static (snow)?
This could be due to environmental interference. Try moving the screen further away from Wi-Fi routers or the transmitter. You can also switch the video transmission band or channel to see if that helps (check the manual for how to change the channel).
3. Why does the image look so blurry?
The camera??£¤s focus might not be properly adjusted. Try rotating the lens clockwise or counterclockwise until the image comes into sharp focus.
4. What is the operating endurance of the monitor and camera?
When fully charged, the monitor lasts up to 3 hours, while the camera provides up to 20 minutes of use.
5. What??£¤s the signal range of the 5.8GHz Analog FPV System?
The effective range is up to 150 meters in open areas without interference.
FPV Monitor Specification:
|
|
4.3 inches |
| Resolution | 480?¡§¡é272 pixels |
| Aspect Ratio | 16:9 |
| Brightness | 500 cd/m2 |
| Input Format | NTSC/PAL Auto-Switch |
| AV Interface | 3.5mm analog video |
| Operating Voltage | 5V DC |
| Charging Port | Micro-USB 5V/2A |
| Battery Capacity | 3.7V 2500mAh Li-ion |
| Frequency Range | 4990-5945 MHz |
| Channels | 56 channels |
| Sensitivity | -90dBm |
| Antenna Connector | RP-SMA (inner pin) |
| Dimensions | 123?¡§¡é85?¡§¡é26 mm |
| OSD Display | Signal strength/Battery/CH |
| Auto-Scan | One-button frequency search |
Camera Specification:
|
|
Copper tube |
| Working Current | 220mA |
| Voltage Range | 2.5-5.5V (5V typ.) |
| Dimensions | 13.5?¡§¡é15.9?¡§¡é17.2mm |
| Weight | 3.6g |
| RF Power | 25mW |
| Channels | 48CH |
| Camera | 120?? FOV, 600TVL |
| Lens | f=1.4mm |
| Video Standard | PAL |
