1:10 F100 Steering Servo Arm
FMS RC Car Rack
Description
This Multi-layer display storage rack stand is designed to support a wide range of RC Car, including RC trucks and RC crawlers, with scales ranging from 1/6, 1/10, 1/12, 1/18, 1/24, to 1/32. Perfectly compatible with popular models like the fms FCX18, FCX24, FCX10 series, and more, it’s an ideal choice for showcasing your RC collection.
Whether you’re displaying your RC collection, performing maintenance, or storing them after cleaning, this RC car stand fits seamlessly into your living room, study, garage, workshop, or even an exhibition room. Designed to meet your needs across multiple scenarios, it’s the ideal addition to your RC hobby setup.
Enjoy hassle-free setup with a straightforward design that requires only four easy steps to assemble. No complicated tools are needed—just the included hex key. Plus, the detachable design makes storage and transportation incredibly convenient. Save time and effort so you can focus on enjoying your RC cars.
- Install the Adjustment Foot into the four interfaces of the base assembly.
- Align the Base Foot with the Connecting Pipe and secure the base structure with screws.
- The two pillars "L" and "R" are inserted into the two sides of the base and fixed
- Firmly attach the pillars to the base using the Connecting Pipe.
- Symmetrically install the two Fixed Clamps at the bottom of the pillars.
- Attach the Top Pipe to the top of the pillars.
-
Finally, install the Square Hook and place the adjustable Telescopic Pipe.
| Specification | |
|---|---|
| Length | 38cm/15inch |
| Width | 35mm/13.7inch |
| Height | 153mm/60.23inch |
| Gross Weight | 10kg/22pounds |
| Material |
|
| Assembly Time | 15min |
1:10 F100 Lipo Battery 7.4V 3300mah 30C

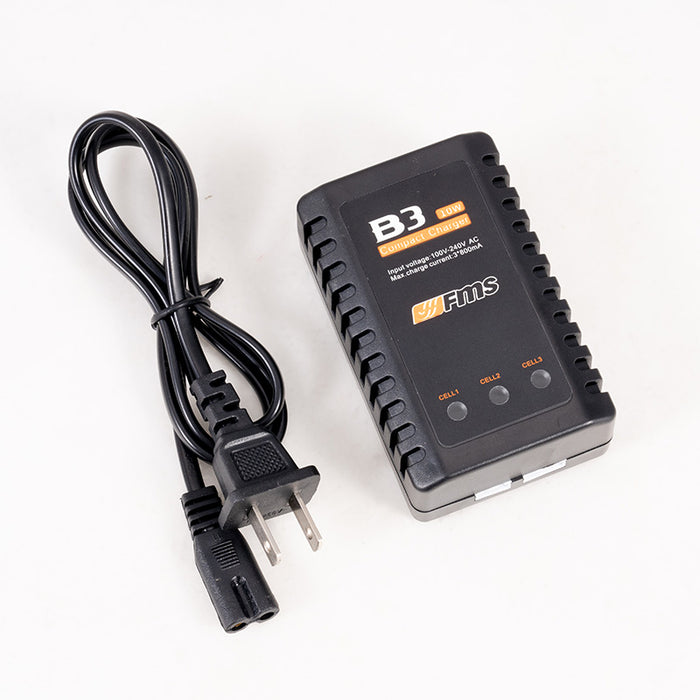

1:10 F100 10W Lipo Battery Charger
FMS 5.8G Analog FPV Set
Description
FMS 5.8GHz Analog FPV System is a simple and user-friendly entry-level FPV setup.
What's in the box:
- 1 x 5.8GHz 4.3-inch FPV Monitor + Antenna
- 1 x 5.8GHz All-In-One Analog Camera
- 1 x Camera Housing With Mounting Base
- 1 x Monitor Mount
- 1 x 3.7V Battery (For Camera Use)
- 1 x 3.7V Battery Charger
- 1 x Hook-and-Loop Tape
- 1 x Adjustable Zip Ties
- 1 x Manual
How to Set Up:
1. Securely mount the camera on your RC vehicle (drone/car/boat) using the included hook-and-loop straps or zip ties.
2. Install the antenna before powering on the monitor, then use the auto-scan function to find the frequency.
3. Begin your FPV adventure!
Q&A:
1. Why doesn¡¯t the image look as clear as I expected?
Analog video transmission has lower resolution compared to HD systems, resulting in less sharpness. However, it offers low latency, making it great for close-range FPV (within 100 meters).
2. Why is the screen flickering and showing static (snow)?
This could be due to environmental interference. Try moving the screen further away from Wi-Fi routers or the transmitter. You can also switch the video transmission band or channel to see if that helps (check the manual for how to change the channel).
3. Why does the image look so blurry?
The camera¡¯s focus might not be properly adjusted. Try rotating the lens clockwise or counterclockwise until the image comes into sharp focus.
4. What is the operating endurance of the monitor and camera?
When fully charged, the monitor lasts up to 3 hours, while the camera provides up to 20 minutes of use.
5. What¡¯s the signal range of the 5.8GHz Analog FPV System?
The effective range is up to 150 meters in open areas without interference.
FPV Monitor Specification:
|
|
4.3 inches |
| Resolution | 480¡Á272 pixels |
| Aspect Ratio | 16:9 |
| Brightness | 500 cd/m2 |
| Input Format | NTSC/PAL Auto-Switch |
| AV Interface | 3.5mm analog video |
| Operating Voltage | 5V DC |
| Charging Port | Micro-USB 5V/2A |
| Battery Capacity | 3.7V 2500mAh Li-ion |
| Frequency Range | 4990-5945 MHz |
| Channels | 56 channels |
| Sensitivity | -90dBm |
| Antenna Connector | RP-SMA (inner pin) |
| Dimensions | 123¡Á85¡Á26 mm |
| OSD Display | Signal strength/Battery/CH |
| Auto-Scan | One-button frequency search |
Camera Specification:
|
|
Copper tube |
| Working Current | 220mA |
| Voltage Range | 2.5-5.5V (5V typ.) |
| Dimensions | 13.5¡Á15.9¡Á17.2mm |
| Weight | 3.6g |
| RF Power | 25mW |
| Channels | 48CH |
| Camera | 120¡ã FOV, 600TVL |
| Lens | f=1.4mm |
| Video Standard | PAL |
1:10 F100 550 Brushed Motor
1:10 F100 Pinion Gear
1:10 F100 Servo Saver Spring
1:10 F100 15T Gear
1:10 F100 2 in 1 Receiver & ESC
1:10 F100 Button Head Hex Screw M3*18

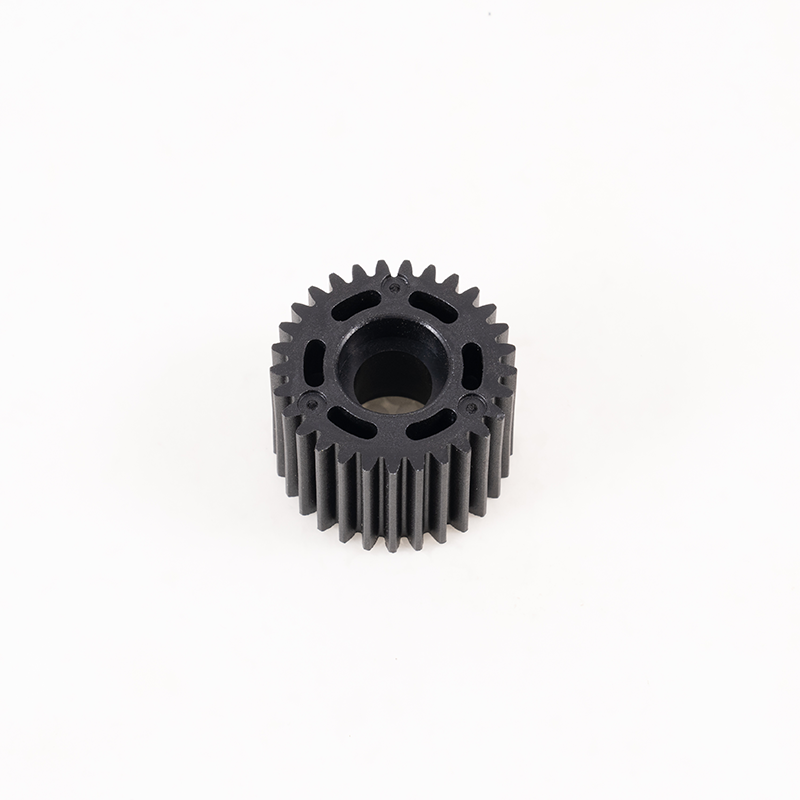

1:10 F100 Transmission Gear 29T

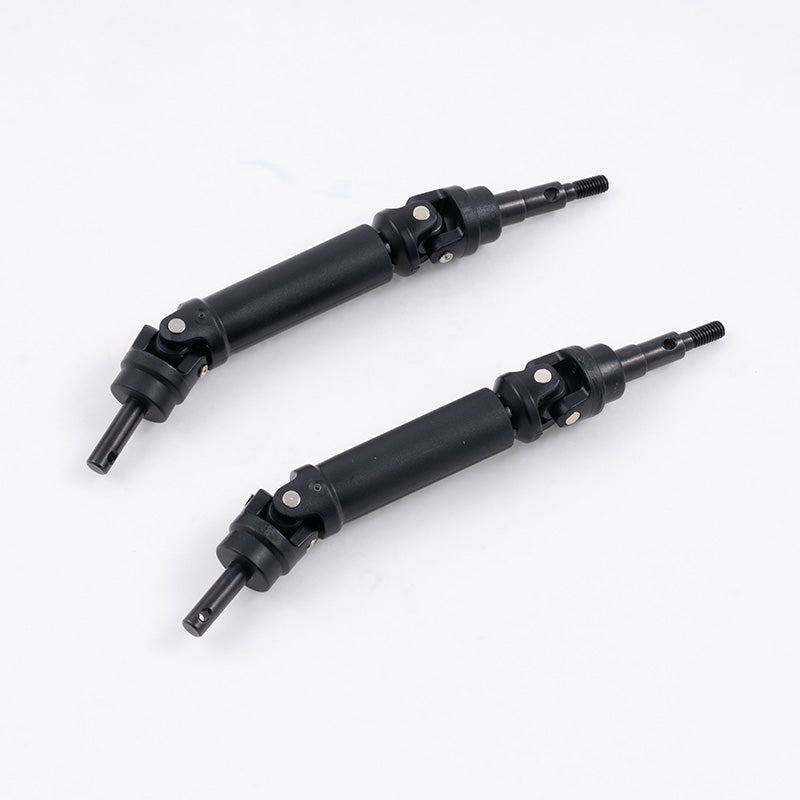

1:10 F100 CVD Drive Shaft Set

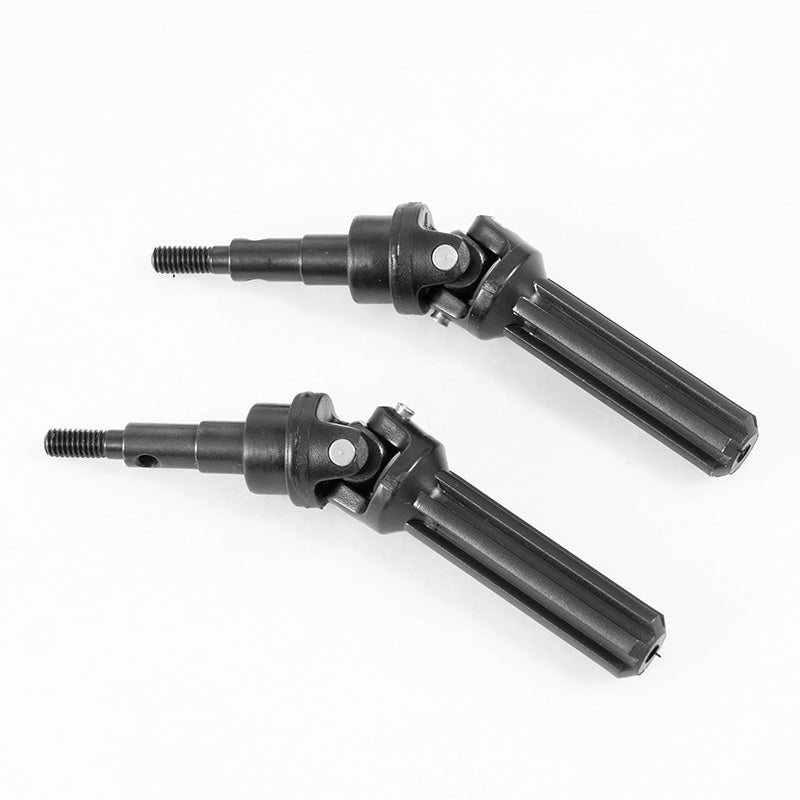

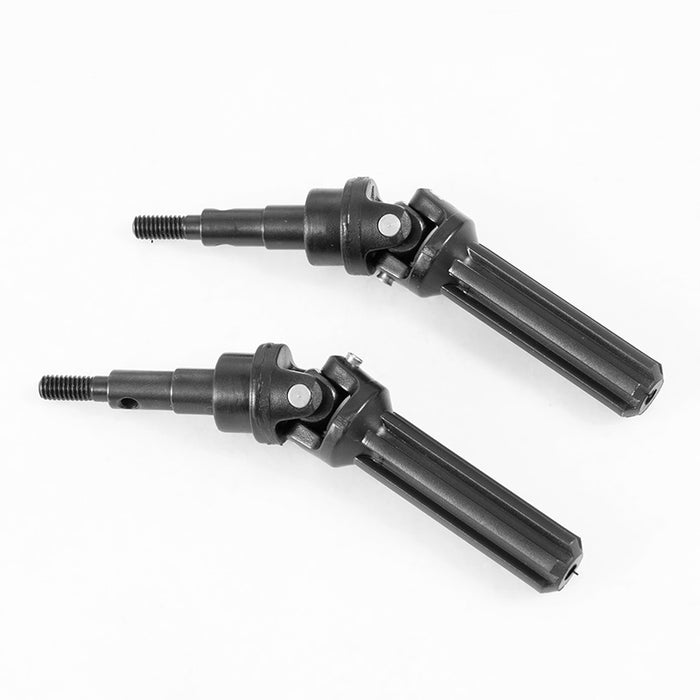

1:10 F100 CVD Axle Sleeve
1:10 F100 Wheel and Tire Mounted
1:10 F100 Slipper Springs
1:10 F100 Car Body Set (Black)
1:10 F100 15KG Servo

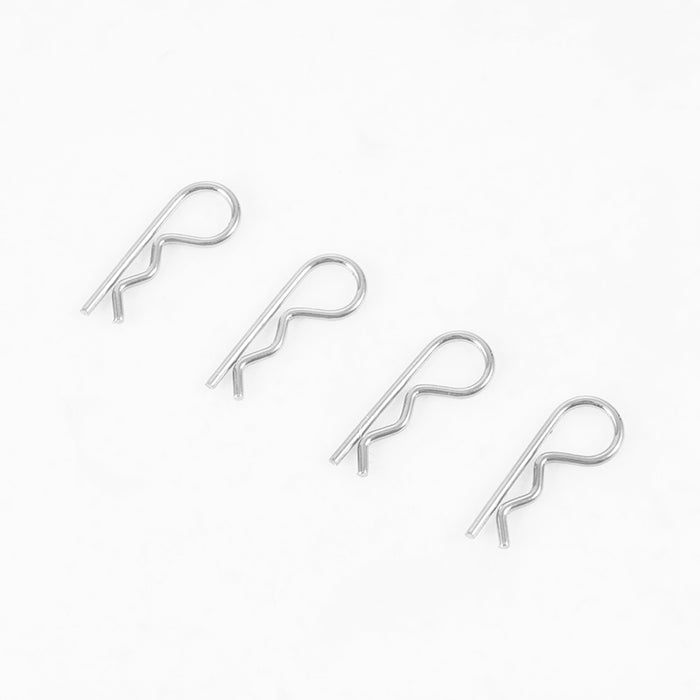

1:10 F100 R Buckle

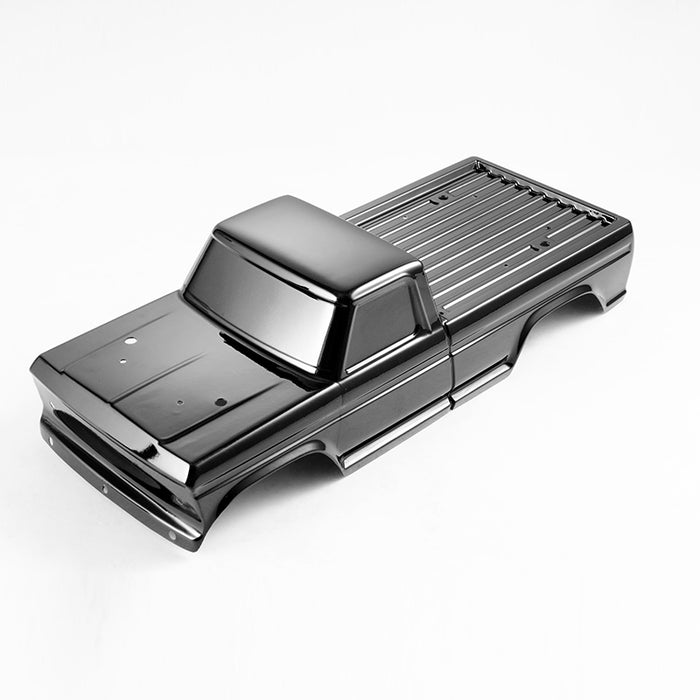

1:10 F100 Car Body (Black)

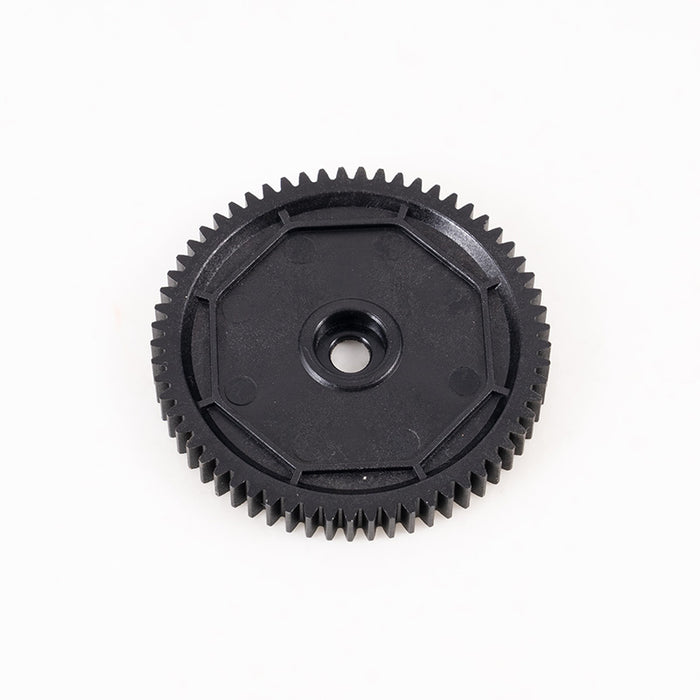

1:10 F100 61T Spur Gear

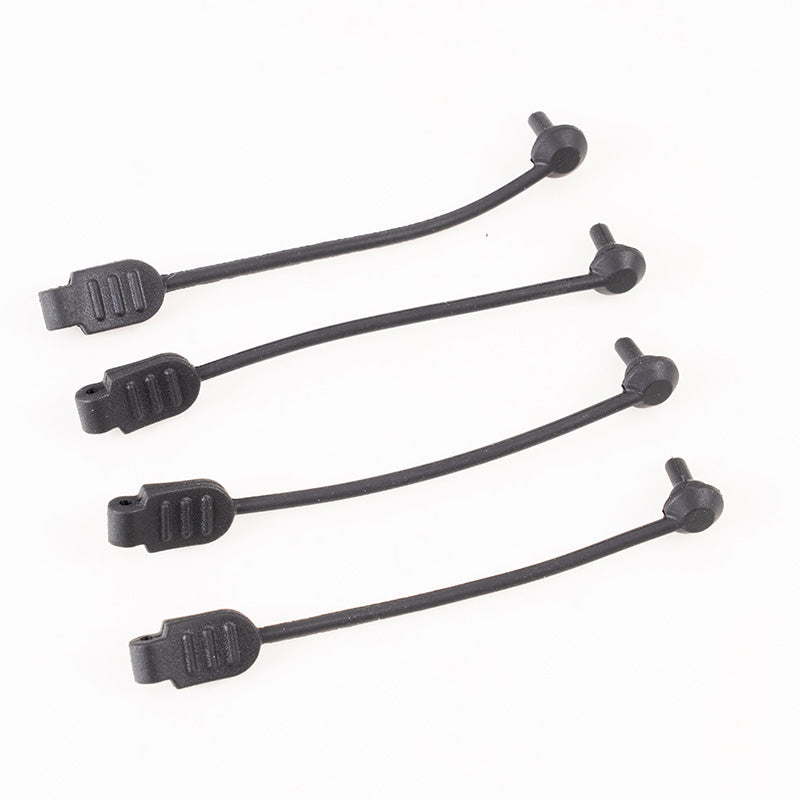

1:10 F100 Body Post Spring Clip Set
1:10 F100 Grille
