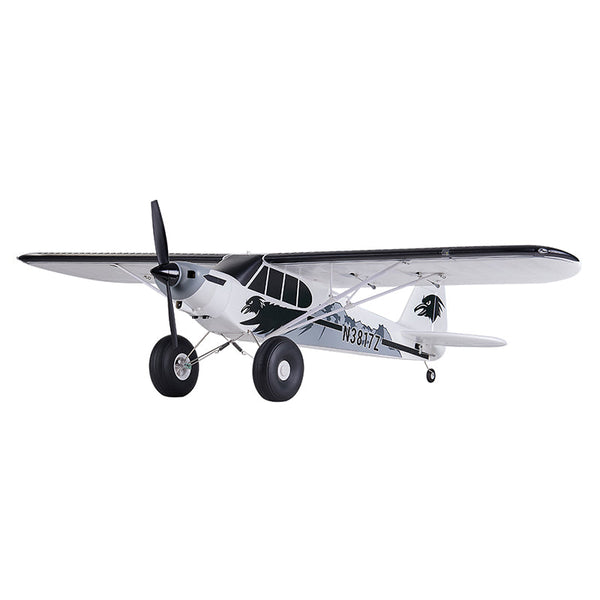

FMS 1300mm PA-18 Super Cub with Reflex V3, PNP / RTF
Description
The Piper PA-18 Super Cub is a two-seat, single-engine monoplane. It was developed from the Piper PA-11. In close to 40 years of production, over 9,000 were built. Super Cubs are commonly found in roles such as bush flying, banner towing and glider towing.
The FMS 1700mm PA-18 was launched in 2019, and its stable, easy-to-fly and easy-to-operate features have brought full surprises to both new and old pilots. While this trainer has been widely praised, FMS has been constantly asked whether it is possible to reduce the size of the aircraft, including the aircraft itself and the packaging, while maintaining its stability and operating controllability as much as possible, so that it can be picked up like a boarding suitcase.
With the 1300mm PA-18, FMS has answered the above question. The 1300mm PA-18 also adopts a two-section main wing and horizontal stability structure, but at the same time, the fuselage is also two-section, which greatly facilitates players' transportation and carrying. It can be hidden in the corner of a car trunk, ready to be used at any time.
Thanks to its functional flaps, high-lift airfoil, rugged landing gear and oversized pneumatic rubber tires- the 1300mm PA-18 Super Cub has impressive short take-off and landing (STOL) performance, allowing it to operate from just about any terrain.
In addition, the assembly steps of the 1300mm PA-18 are still simple and convenient, and the assembly and disassembly of the entire aircraft can be completed with just a few screws.
For pilots wanting to get the genuine bush-plane experience, the PA-18 Super Cub can be equipped with floats.
The latest 1300mm PA-18 could be a great start to enjoying versatile, fun and exceptionally relaxing flight.
Features:
1. Powerful 3536-850KV motor with 40A ESC provides adequate thrust for any situation.
2. CNC metal landing gear structure for less-than-perfect landings.
3. Oversized pneumatic rubber tires for all-terrain operations.
4. STOL capable (Takes off in less than 3m/10ft)
5. Preinstalled navigation lights
6. Two-section fuselage
7. Two-piece wing and horizontal stabilizer for easy transportation
8. High-strength carbon fiber wing spars
9. Screw-together assembly
10. Large battery bay
11. Preinstalled ball-linked pushrods for increased precision
12. Tough two-blade nylon propellers
13. Functional flaps
14. Optional floats
Specification |
|
Wingspan | 1300mm /51.2in |
Overall Length | 986mm /38.8in |
Flying Weight | Around 1450g |
Motor Size | 3536-KV850 |
ESC | 40A |
Servo | 9g*6 |
Radio | 6CH Channel |
CG (center of gravity) | 60-70mm(From Leading Edge) |
Prop Size | 11*7 |
Recommended Battery | 11.1V 2200mAh 25C |
Battery Connector | XT60 |
Aileron | Yes |
Elevator | Yes |
Rudder | Yes |
Flaps | Yes |
Retracts | No |
Approx. Flying Duration | 5minutes |
Minimum Age Recommendation | 14+ |
Experience Level | Beginner |
Assembly Time | 10minutes |
Wing Load | 48g/dm² (0.096oz/in²) |
Wing Area | 30 dm² ( 464.7sq.in) |
Notes to buyers:
RTF (Ready to Fly) airplanes come with everything you need to fly in the box. A transmitter, receiver, battery, charger, and all other required electronics are included and pre-installed from the factory.
PNP (Plug-and-Play) airplanes include the ESC, motor, and servos all pre-installed from the factory. Transmitter, receiver, battery, and charger are not included.
